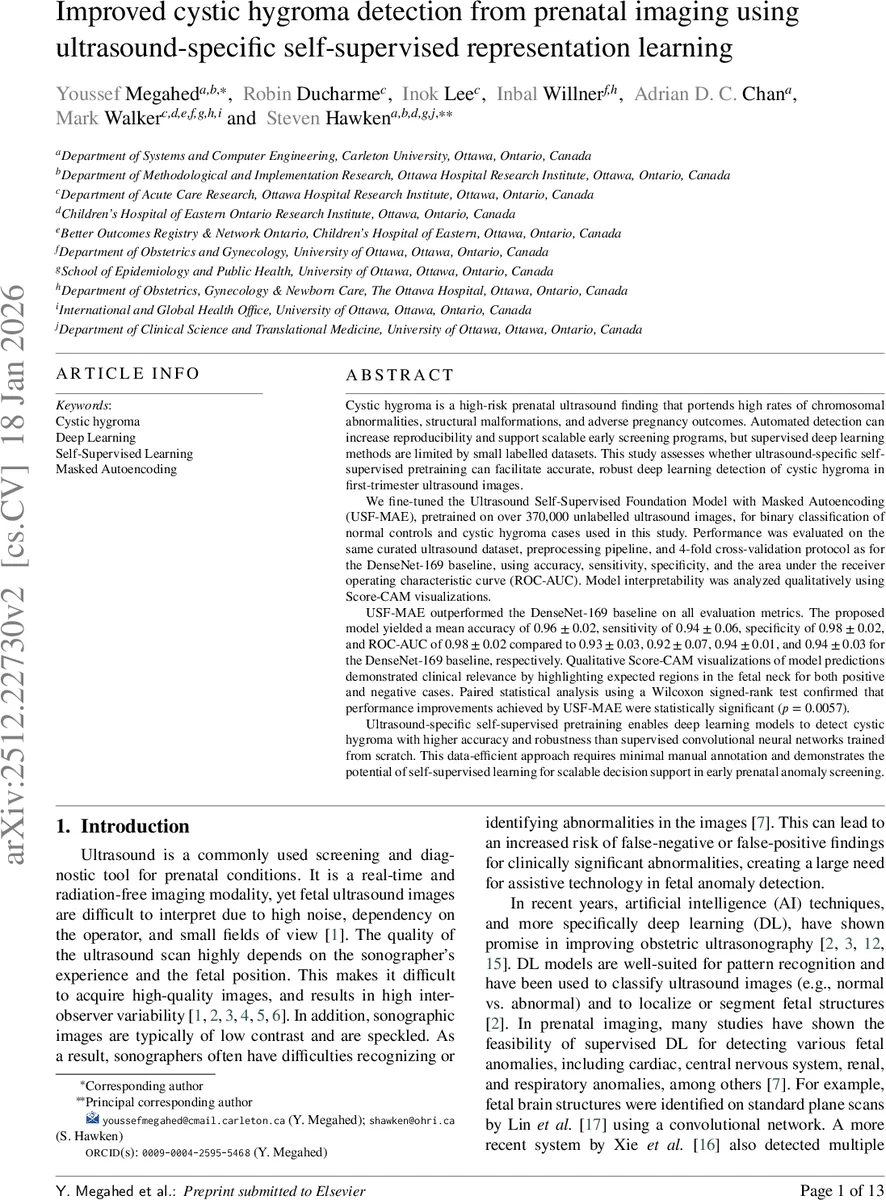

Improved cystic hygroma detection from prenatal imaging using ultrasound-specific self-supervised representation learning

Cystic hygroma is a high-risk prenatal ultrasound finding that portends high rates of chromosomal abnormalities, structural malformations, and adverse pregnancy outcomes. Automated detection can increase reproducibility and support scalable early screening programs, but supervised deep learning methods are limited by small labelled datasets. This study assesses whether ultrasound-specific self-supervised pretraining can facilitate accurate, robust deep learning detection of cystic hygroma in first-trimester ultrasound images. We fine-tuned the Ultrasound Self-Supervised Foundation Model with Masked Autoencoding (USF-MAE), pretrained on over 370,000 unlabelled ultrasound images, for binary classification of normal controls and cystic hygroma cases used in this study. Performance was evaluated on the same curated ultrasound dataset, preprocessing pipeline, and 4-fold cross-validation protocol as for the DenseNet-169 baseline, using accuracy, sensitivity, specificity, and the area under the receiver operating characteristic curve (ROC-AUC). Model interpretability was analyzed qualitatively using Score-CAM visualizations. USF-MAE outperformed the DenseNet-169 baseline on all evaluation metrics. The proposed model yielded a mean accuracy of 0.96, sensitivity of 0.94, specificity of 0.98, and ROC-AUC of 0.98 compared to 0.93, 0.92, 0.94, and 0.94 for the DenseNet-169 baseline, respectively. Qualitative Score-CAM visualizations of model predictions demonstrated clinical relevance by highlighting expected regions in the fetal neck for both positive and negative cases. Paired statistical analysis using a Wilcoxon signed-rank test confirmed that performance improvements achieved by USF-MAE were statistically significant (p = 0.0057).

💡 Research Summary

This paper addresses the challenge of limited labeled data in prenatal ultrasound imaging by leveraging self‑supervised learning (SSL) to improve the automated detection of cystic hygroma, a high‑risk first‑trimester finding associated with chromosomal abnormalities and adverse outcomes. The authors build upon a previous study that used a DenseNet‑169 convolutional neural network trained from scratch on a modest dataset of 289 mid‑sagittal fetal ultrasound images (160 normal, 129 cystic hygroma). While that model achieved 93 % accuracy, its performance was constrained by the small sample size and the domain mismatch inherent in training a CNN without any pre‑training on ultrasound data.

To overcome these limitations, the authors introduce the Ultrasound Self‑Supervised Foundation Model with Masked Autoencoding (USF‑MAE). USF‑MAE is a Vision Transformer (ViT) encoder pre‑trained on more than 370,000 unlabeled ultrasound frames drawn from 46 diverse datasets covering over 20 anatomical regions (the “OpenUS‑46” corpus). The pre‑training follows the Masked Autoencoder paradigm: random patches of each image are masked, and the network learns to reconstruct the missing content. This reconstruction task forces the model to capture modality‑specific textures, speckle patterns, and structural cues that are characteristic of sonographic images, producing rich, generalizable feature representations.

After pre‑training, the USF‑MAE encoder is fine‑tuned on the same 289‑image cystic hygroma dataset. The authors employ an identical preprocessing pipeline (HSV‑based grayscale extraction and artifact removal), the same 4‑fold cross‑validation scheme, and identical evaluation metrics (accuracy, sensitivity, specificity, ROC‑AUC) as the DenseNet‑169 baseline, ensuring a fair head‑to‑head comparison.

Results show that USF‑MAE consistently outperforms the baseline across all metrics: mean accuracy 0.96 ± 0.02 vs. 0.93 ± 0.03, sensitivity 0.94 ± 0.06 vs. 0.92 ± 0.07, specificity 0.98 ± 0.02 vs. 0.94 ± 0.01, and ROC‑AUC 0.98 ± 0.02 vs. 0.94 ± 0.03. A paired Wilcoxon signed‑rank test yields p = 0.0057, confirming that the improvements are statistically significant.

Interpretability is examined using Score‑CAM visualizations. In both positive (cystic hygroma) and negative (normal) cases, the heatmaps highlight the fetal neck region, particularly the nuchal translucency area, aligning with clinical expectations and providing reassurance that the model’s decisions are anatomically grounded.

The study demonstrates several key insights: (1) domain‑specific SSL can extract powerful ultrasound representations that surpass conventional CNNs trained from scratch, even when downstream labeled data are scarce; (2) the MAE pre‑training objective is well‑suited to the noisy, low‑contrast nature of sonography; (3) high specificity (0.98) suggests the model could reduce unnecessary invasive testing by minimizing false‑positive detections; and (4) the approach is data‑efficient, making it attractive for other prenatal anomaly detection tasks where labeled datasets are limited.

Limitations include the single‑center nature of the dataset, the relatively small number of cases, and the lack of external validation on images from different ultrasound machines or institutions. Future work should focus on multi‑center trials, expanding to multi‑class anomaly detection, and integrating the model into real‑time clinical workflows to assist sonographers during routine scans.

Overall, the paper provides compelling evidence that self‑supervised, transformer‑based foundation models can substantially improve the accuracy and robustness of early prenatal screening tools, paving the way for scalable, AI‑assisted obstetric care.
