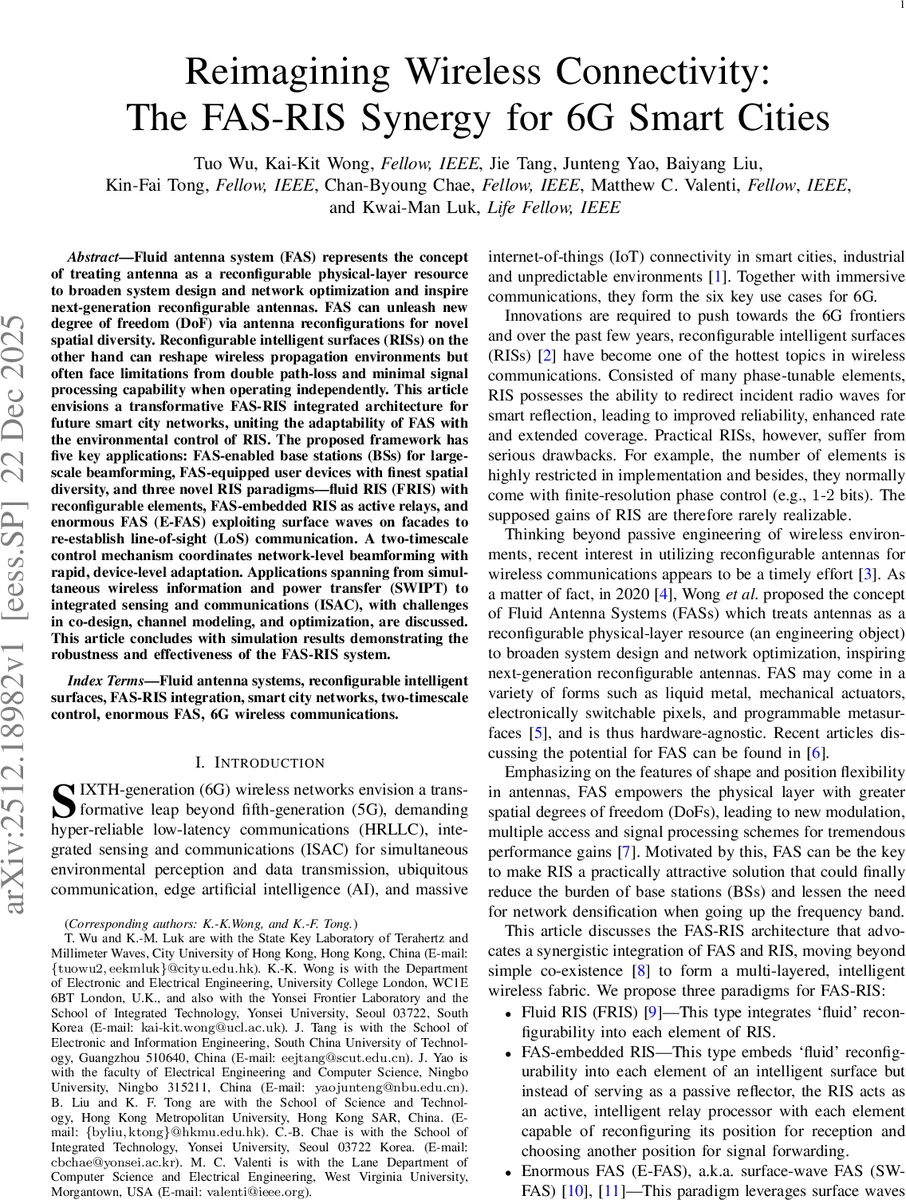

Reimagining Wireless Connectivity: The FAS-RIS Synergy for 6G Smart Cities

Fluid antenna system (FAS) represents the concept of treating antenna as a reconfigurable physical-layer resource to broaden system design and network optimization and inspire next-generation reconfigurable antennas. FAS can unleash new degree of freedom (DoF) via antenna reconfigurations for novel spatial diversity. Reconfigurable intelligent surfaces (RISs) on the other hand can reshape wireless propagation environments but often face limitations from double path-loss and minimal signal processing capability when operating independently. This article envisions a transformative FAS-RIS integrated architecture for future smart city networks, uniting the adaptability of FAS with the environmental control of RIS. The proposed framework has five key applications: FAS-enabled base stations (BSs) for large-scale beamforming, FAS-equipped user devices with finest spatial diversity, and three novel RIS paradigms – fluid RIS (FRIS) with reconfigurable elements, FAS-embedded RIS as active relays, and enormous FAS (E-FAS) exploiting surface waves on facades to re-establish line-of-sight (LoS) communication. A two-timescale control mechanism coordinates network-level beamforming with rapid, device-level adaptation. Applications spanning from simultaneous wireless information and power transfer (SWIPT) to integrated sensing and communications (ISAC), with challenges in co-design, channel modeling, and optimization, are discussed. This article concludes with simulation results demonstrating the robustness and effectiveness of the FAS-RIS system.

💡 Research Summary

The paper proposes a novel integrated architecture that combines Fluid Antenna Systems (FAS) with Reconfigurable Intelligent Surfaces (RIS) to meet the demanding requirements of 6G smart‑city networks. FAS treats the antenna as a reconfigurable physical‑layer resource: by moving, reshaping, or electronically switching antenna elements, it creates a large number of “ports” (spatial positions) that can be selected on the fly, thereby providing a new spatial degree of freedom (DoF). RIS, on the other hand, manipulates the propagation environment through phase‑tunable elements but suffers from double‑path‑loss and limited phase resolution when used alone. By merging the two, the authors aim to exploit the complementary strengths—FAS supplies fine‑grained spatial diversity at the transmitter/receiver side, while RIS reshapes the macro‑scale channel, mitigating the double‑path‑loss problem.

Three concrete FAS‑RIS paradigms are introduced:

1. Fluid RIS (FRIS) – each RIS element is itself fluid‑reconfigurable, allowing not only phase adjustment but also physical position/shape changes. This enables dynamic beamwidth control (wide for multicast, narrow for high‑gain point‑to‑point) and adapts to long‑term channel statistics.

2. FAS‑Embedded RIS – the RIS operates as an active relay rather than a passive reflector. Each element can select a reception port and a distinct transmission port, effectively performing receive‑process‑forward operations while still being part of the surface.

3. Enormous FAS (E‑FAS or Surface‑Wave FAS) – large‑scale deployment on building facades, LED screens, or other surfaces that launch surface‑wave modes. By converting guided surface waves into free‑space radiation, E‑FAS creates artificial line‑of‑sight (LoS) paths around corners and through dense urban canyons.

A two‑timescale control scheme orchestrates the system. At the slow timescale, the base station (BS) and RIS perform network‑level beamforming and phase configuration based on long‑term channel statistics, covering a wide area with coarse steering. At the fast timescale, the UE equipped with a fluid antenna continuously switches among its many ports (microsecond‑scale “fast loop”) to track instantaneous channel fluctuations and lock onto the locally optimal position. When a larger environmental change occurs (e.g., the user turns a corner), the UE notifies the network, triggering a slower update of BS and RIS settings. This hierarchical approach reduces CSI feedback overhead while preserving rapid adaptation.

The paper surveys hardware implementations for FAS: liquid‑metal actuation (continuous but slow), mechanically movable structures (large movement but very slow), pixel‑based electronic switches (nanosecond switching, discrete states), and meta‑fluid antennas (nanosecond switching with very high spatial DoF). Table II compares these technologies in terms of speed, power consumption, precision, and bandwidth. E‑FAS utilizes surface‑wave launchers that also switch in nanoseconds and support extremely high DoF, making it suitable for large‑area installations such as smart façades.

Performance evaluation uses realistic 6G smart‑city scenarios, including terrestrial BSs, satellite links, UAV‑mounted RIS, and dense IoT sensor networks. Simulations compare the proposed FAS‑RIS system against conventional fixed‑position antennas and passive RIS. Key findings:

• Signal‑to‑Noise Ratio (SNR) improves by 8–12 dB on average.
• Outage probability drops to the order of 10⁻³, indicating high reliability.
• In simultaneous wireless information and power transfer (SWIPT) setups, harvested energy efficiency rises by more than 30 % due to the ability of the UE’s fluid antenna to locate high‑power “sweet spots.”
• Integrated sensing and communications (ISAC) benefits from sharper, more controllable illumination patterns, yielding a 5 dB improvement in radar‑like echo SNR.
• The two‑timescale scheme achieves comparable performance to a fully joint optimization (which would require prohibitive CSI exchange) while keeping training overhead modest.

The authors identify several open research challenges:

• Unified channel modeling that captures hybrid guided‑radiated propagation, time‑varying port correlation, and cascaded RIS‑to‑FAS links.
• Hierarchical CSI acquisition and feedback protocols that separate local fast CSI (for UE port selection) from global slow CSI (for BS/RIS beamforming).
• Cross‑layer joint optimization of BS beamforming, RIS phase/position states, and UE port selection under QoS and latency constraints.
• Hardware cost and energy efficiency, especially for large‑scale E‑FAS deployments on building façades.
• Policy and security for dynamic reconfiguration in multi‑operator environments.

In conclusion, the paper argues that the FAS‑RIS synergy offers a practical pathway to overcome the fundamental limitations of RIS‑only designs, delivering the high reliability, low latency, and energy efficiency required for future 6G smart‑city services such as autonomous‑vehicle V2X, UAV‑assisted emergency response, pervasive IoT sensing, and city‑wide SWIPT. By leveraging fluid antenna reconfigurability at both network and device levels, the proposed architecture creates a “wireless fabric” that can adapt in real time to the highly dynamic urban environment, paving the way for the next generation of intelligent, resilient wireless infrastructure.
