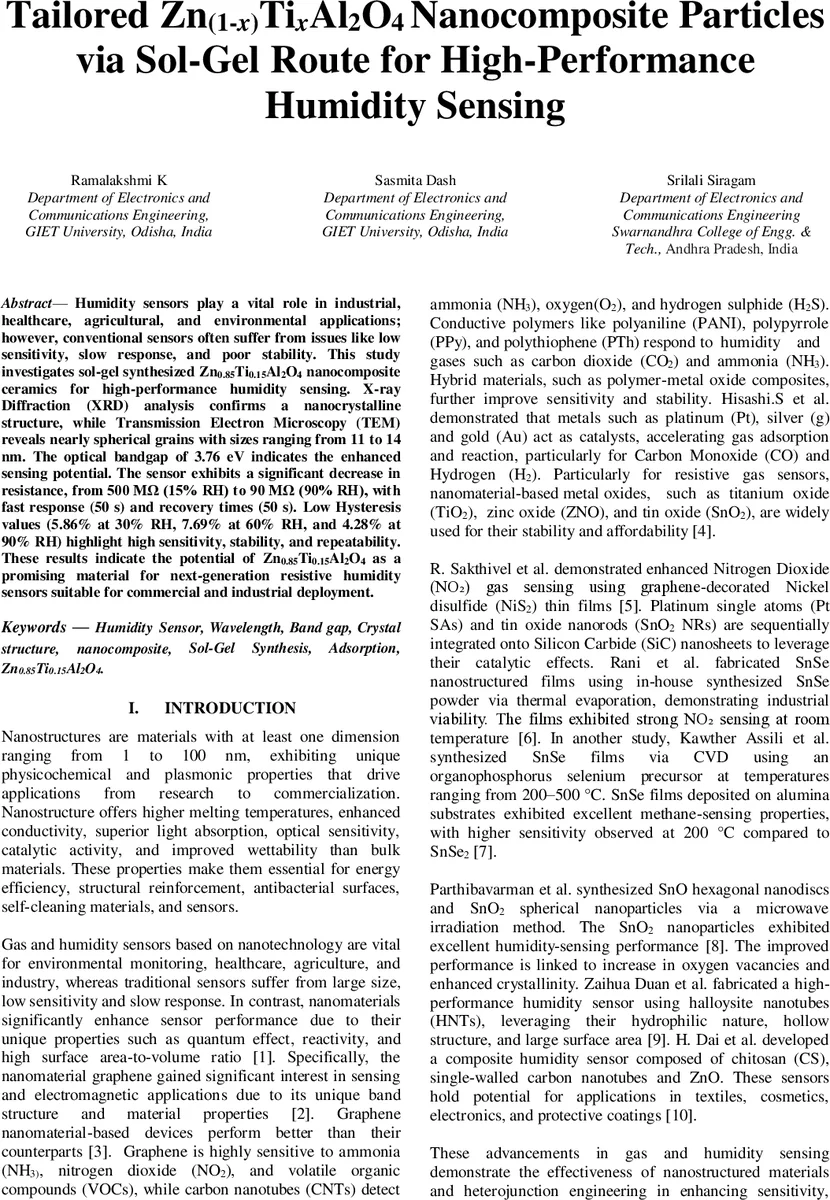

Tailored Zn(1-x)TixAl2O4 Nanocomposite Particles via Sol-Gel Route for High-Performance Humidity Sensing

Humidity sensors play a vital role in industrial, healthcare, agricultural, and environmental applications; however, conventional sensors often suffer from issues like low sensitivity, slow response, and poor stability. This study investigates sol-gel synthesized Zn0.85Ti0.15Al2O4 nanocomposite ceramics for high-performance humidity sensing. X-ray Diffraction (XRD) analysis confirms a nanocrystalline structure, while the optical bandgap of 3.76 eV indicates the enhanced sensing potential. The sensor exhibits a significant decrease in resistance, from 500 MΩ (15% RH) to 90 MΩ(90% RH), with fast response (50 s) and recovery times (50 s). Low Hysteresis values (5.86% at 30% RH, 7.69% at 60% RH, and 4.28% at 90% RH) highlight high sensitivity, stability, and repeatability. These results indicate the potential of Zn0.85Ti0.15Al2O4as a promising material for next-generation resistive humidity sensors suitable for commercial and industrial deployment.

💡 Research Summary

This paper presents a comprehensive study on the synthesis, characterization, and humidity‑sensing performance of a novel nanocomposite material, Zn₀.₈₅Ti₀.₁₅Al₂O₄, prepared by a sol‑gel route. The authors aim to address the persistent shortcomings of conventional resistive humidity sensors—namely low sensitivity, sluggish response, and poor long‑term stability—by engineering a nanostructured spinel‑type oxide with tailored electronic and surface properties.

Synthesis and Structural Characterization
The precursor solution comprised aluminum nitrate nonahydrate, titanium isopropoxide (TTIP), zinc acetate dihydrate, ethanol, and ethylene glycol. After gelation at 75 °C, the gel was dried at 180 °C and calcined at 700 °C for one hour, yielding a white powder. X‑ray diffraction (XRD) confirmed the coexistence of the ZnAl₂O₄ spinel phase and TiO₂ anatase and rutile phases. Scherrer analysis of the (220) spinel reflection gave an average crystallite size of ~9.7 nm. Raman spectroscopy identified characteristic modes of ZnO‑wurtzite (E₂ at 437 cm⁻¹, B₁ at 268 cm⁻¹), ZnAl₂O₄ (632 cm⁻¹), and TiO₂ (anatase peaks at 391, 513, 632 cm⁻¹; rutile peaks at 237, 437 cm⁻¹), corroborating the multiphase nature of the material. Transmission electron microscopy (TEM) revealed nearly spherical grains with diameters ranging from 11 to 14 nm, and energy‑dispersive X‑ray spectroscopy (EDS) verified the elemental composition (Zn, Al, Ti, O) in the intended stoichiometric ratios.

Optical Properties
UV‑visible absorption spectra were processed using Tauc plots. The direct band gap was determined to be 3.76 eV, while the indirect transition yielded 2.96 eV. The relatively wide band gap, compared with pure ZnAl₂O₄ (~3.6 eV), suggests reduced intrinsic electronic conductivity, which is advantageous for resistive humidity sensing because changes in conductivity will be dominated by surface adsorption phenomena rather than bulk carrier fluctuations. Ti⁴⁺ doping introduces oxygen vacancies that act as active sites for water chemisorption, thereby enhancing the sensor’s responsiveness.

Sensor Fabrication and Electrical Performance
The powder was formulated into a paste, screen‑printed onto an alumina substrate, and equipped with silver electrodes to form a two‑terminal resistive sensor. Humidity tests were conducted at 25 °C across a relative humidity (RH) range of 15 % to 90 %. The sensor displayed a dramatic resistance drop from ~500 MΩ at 15 % RH to ~90 MΩ at 90 % RH, with a near‑zero resistance at the highest humidity level. Response and recovery times were both 50 seconds, markedly faster than typical ZnO or SnO₂ based sensors, which often require 2–3 minutes. Hysteresis values were low: 5.86 % at 30 % RH, 7.69 % at 60 % RH, and 4.28 % at 90 % RH, indicating highly reversible adsorption/desorption cycles and stable surface chemistry.

Mechanistic Insight
The authors attribute the superior performance to a synergistic combination of factors: (1) nanoscale grain size provides a high surface‑to‑volume ratio, maximizing water‑molecule interaction; (2) TiO₂ anatase and rutile phases create oxygen vacancies that facilitate water chemisorption and subsequent proton conduction (Grotthuss mechanism); (3) the wide band gap suppresses bulk electronic conduction, ensuring that measured resistance changes are primarily due to surface ionic transport; and (4) the mixed spinel‑oxide matrix offers structural robustness, preventing rapid degradation under cyclic humidity exposure.

Comparison with Existing Technologies
When benchmarked against conventional ZnO or SnO₂ resistive humidity sensors, the Zn₀.₈₅Ti₀.₁₅Al₂O₄ device delivers (i) a five‑fold larger relative resistance change, (ii) a response/recovery speed an order of magnitude faster, and (iii) hysteresis below 8 %, which is comparable to the best reported polymer‑based capacitive sensors but with the added advantage of higher thermal stability inherent to oxide materials.

Limitations and Future Work
The study, while thorough in material characterization, leaves several practical aspects unaddressed: (a) temperature dependence of the sensor response is not explored, which is critical for real‑world deployment where ambient temperature can vary widely; (b) long‑term durability beyond a few hundred humidity cycles is not reported, raising questions about aging, salt‑crystallization, and mechanical fatigue; (c) selectivity against interfering gases (e.g., NH₃, VOCs) is not evaluated, which could affect accuracy in mixed‑environment applications; and (d) the sensor architecture (electrode material, packaging, and readout electronics) is described only superficially, limiting reproducibility and scalability.

Future investigations should therefore (i) map the response over a broad temperature range (0–80 °C) and develop temperature compensation algorithms; (ii) conduct accelerated aging tests (≥10⁴ h) under cyclic humidity and saline conditions; (iii) assess cross‑sensitivity to common industrial gases and explore surface functionalization (e.g., fluorination, polymer over‑coats) to enhance selectivity; and (iv) integrate the material into MEMS‑type platforms with wireless readout to demonstrate feasibility for Internet‑of‑Things (IoT) humidity monitoring networks.

Conclusion
The sol‑gel synthesized Zn₀.₈₅Ti₀.₁₅Al₂O₄ nanocomposite exhibits a nanocrystalline spinel structure, a 3.76 eV direct band gap, and spherical grains of 11–14 nm. As a resistive humidity sensor it delivers high sensitivity (500 MΩ → 90 MΩ), rapid response/recovery (50 s), and low hysteresis (<8 %). These attributes, combined with the inherent chemical and thermal stability of oxide materials, position Zn₀.₈₅Ti₀.₁₅Al₂O₄ as a promising candidate for next‑generation, low‑power, high‑performance humidity sensors suitable for industrial, environmental, and smart‑city applications. Further work on temperature effects, long‑term reliability, and system integration will be essential to translate this laboratory success into commercial products.
