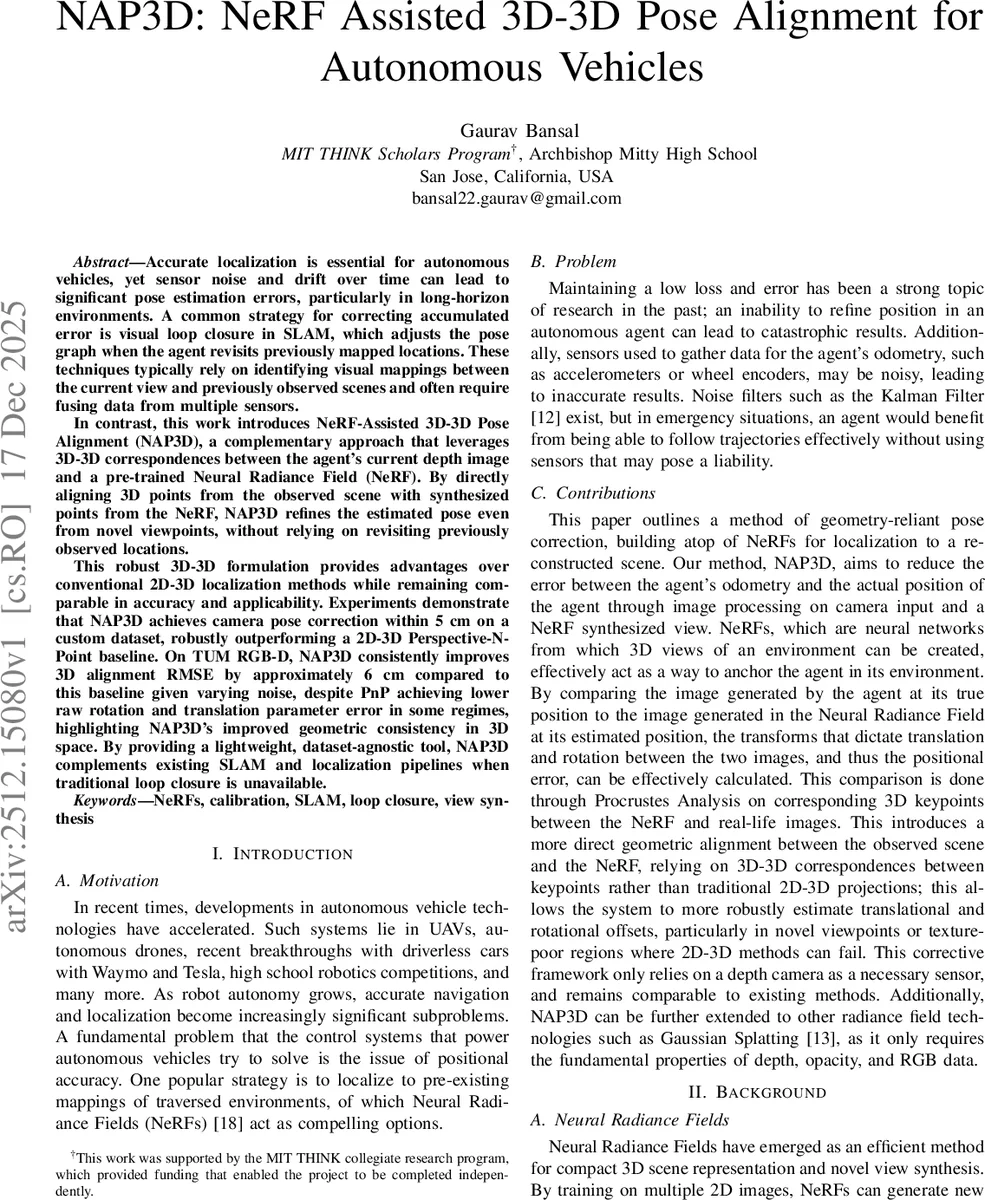

NAP3D: NeRF Assisted 3D-3D Pose Alignment for Autonomous Vehicles

Accurate localization is essential for autonomous vehicles, yet sensor noise and drift over time can lead to significant pose estimation errors, particularly in long-horizon environments. A common strategy for correcting accumulated error is visual loop closure in SLAM, which adjusts the pose graph when the agent revisits previously mapped locations. These techniques typically rely on identifying visual mappings between the current view and previously observed scenes and often require fusing data from multiple sensors. In contrast, this work introduces NeRF-Assisted 3D-3D Pose Alignment (NAP3D), a complementary approach that leverages 3D-3D correspondences between the agent’s current depth image and a pre-trained Neural Radiance Field (NeRF). By directly aligning 3D points from the observed scene with synthesized points from the NeRF, NAP3D refines the estimated pose even from novel viewpoints, without relying on revisiting previously observed locations. This robust 3D-3D formulation provides advantages over conventional 2D-3D localization methods while remaining comparable in accuracy and applicability. Experiments demonstrate that NAP3D achieves camera pose correction within 5 cm on a custom dataset, robustly outperforming a 2D-3D Perspective-N-Point baseline. On TUM RGB-D, NAP3D consistently improves 3D alignment RMSE by approximately 6 cm compared to this baseline given varying noise, despite PnP achieving lower raw rotation and translation parameter error in some regimes, highlighting NAP3D’s improved geometric consistency in 3D space. By providing a lightweight, dataset-agnostic tool, NAP3D complements existing SLAM and localization pipelines when traditional loop closure is unavailable.

💡 Research Summary

The paper introduces NAP3D (NeRF‑Assisted 3D‑3D Pose Alignment), a novel pose‑correction technique for autonomous vehicles that leverages a pre‑trained Neural Radiance Field (NeRF) as a virtual map. Traditional SLAM loop‑closure methods rely on revisiting previously seen locations and fusing multiple sensor streams, which can be limiting in long‑duration missions or low‑cost platforms. NAP3D sidesteps this requirement by directly aligning 3D points extracted from the vehicle’s current depth image with 3D points synthesized from a NeRF rendered at the vehicle’s estimated pose.

The system consists of three main components. First, a NeRF is trained using Nerfstudio’s depth‑nerfacto pipeline, which incorporates RGB images and depth supervision (either from ground‑truth depth or a learned depth estimator such as Zoe). This yields a compact, continuous representation capable of rendering RGB‑Depth pairs from arbitrary viewpoints. Second, the vehicle’s onboard depth camera (Intel RealSense D455i) captures an RGB‑Depth frame at its true pose. SIFT keypoints are detected in both the real image and the NeRF‑rendered image, and FLANN is used to establish 2D correspondences. Using the intrinsic parameters and the depth values, each 2D keypoint is back‑projected into a 3D point in camera coordinates. Third, a rigid Procrustes alignment (Umeyama method) is performed on the two 3D point clouds to estimate the optimal rotation matrix R and translation vector t that minimize the Frobenius norm of the residuals. The algorithm solves a classic orthogonal Procrustes problem via singular value decomposition of a 3 × 3 covariance matrix, yielding O(N) computational complexity for N correspondences. To improve robustness against depth noise, NeRF reconstruction artifacts, and mismatched keypoints, the authors augment the alignment with a RANSAC‑based outlier rejection scheme and an anisotropic residual model that weights lateral and depth errors differently.

Experimental validation is carried out on two datasets. A custom indoor “dining‑room” dataset was collected with a RealSense camera; ground‑truth positions were measured manually. NAP3D reduced positional error to within 5 cm, consistently outperforming a baseline 2D‑3D Perspective‑N‑Point (PnP) approach. The second evaluation uses the TUM RGB‑D sequence “freiburg3_long_office_household”. A NeRF is trained on every other frame, and the same alignment pipeline is applied. Across varying levels of synthetic noise, NAP3D improves the 3D alignment root‑mean‑square error (RMSE) by roughly 6 cm relative to the PnP baseline. While PnP occasionally yields lower raw rotation or translation errors in specific regimes, NAP3D demonstrates superior geometric consistency in the full SE(3) space.

Key advantages of NAP3D include: (1) reliance on a single depth sensor, eliminating the need for costly multi‑sensor fusion; (2) ability to correct drift without requiring loop‑closure, making it suitable for “non‑loop” trajectories; (3) robustness to texture‑poor or illumination‑varying scenes thanks to the 3D‑3D formulation; (4) lightweight CPU‑only computation for the alignment stage, enabling online deployment. The authors note that the method is dataset‑agnostic and can be extended to other neural scene representations such as Gaussian Splatting, provided depth, opacity, and RGB outputs are available. Future work will explore multi‑agent collaborative alignment, scaling to larger environments, and tighter integration with existing SLAM back‑ends. Overall, NAP3D offers a practical, geometry‑driven complement to conventional SLAM pipelines, particularly in scenarios where loop‑closure is unavailable or unreliable.
