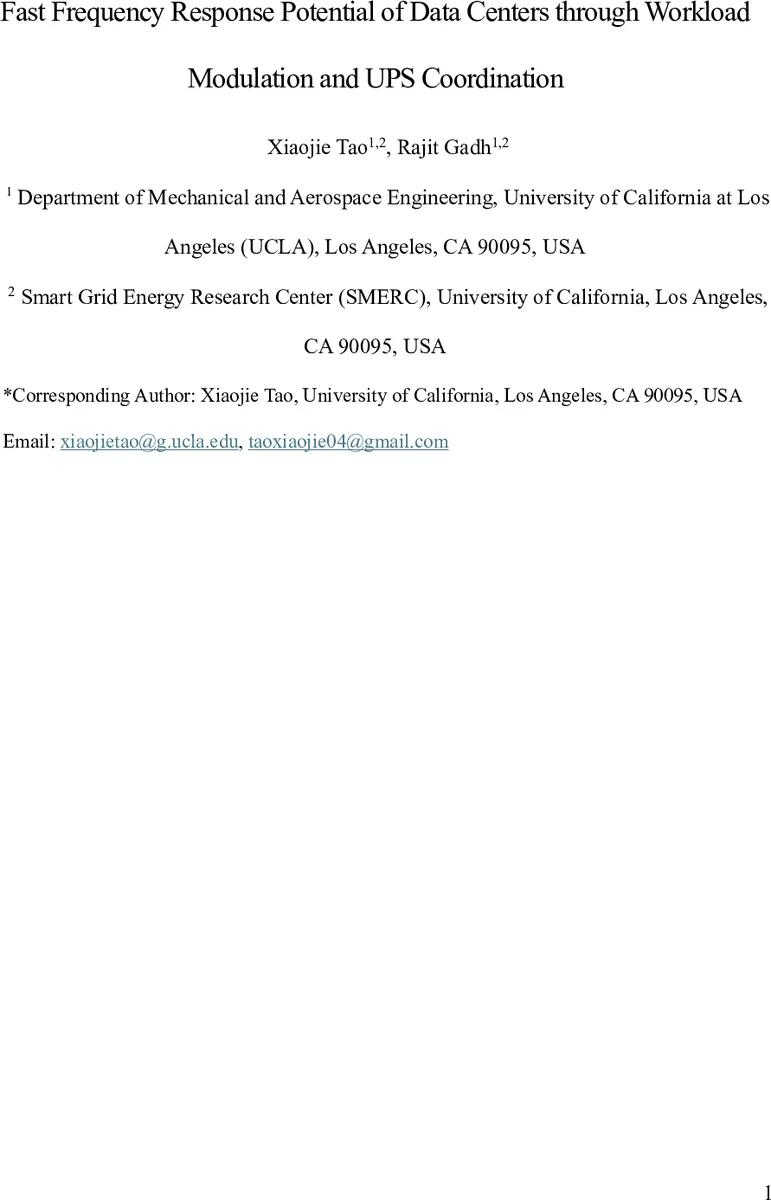

Fast Frequency Response Potential of Data Centers through Workload Modulation and UPS Coordination

The rapid growth of renewable energy sources has significantly reduced system inertia and increased the need for fast frequency response (FFR) in modern power systems. Data centers, as large and flexible electrical consumers, hold great potential to contribute to frequency stabilization due to their controllable IT workloads and on-site uninterruptible power supply (UPS) systems. This paper investigates the feasibility of leveraging data centers for providing fast frequency response through real-time workload modulation and UPS coordination. A dynamic model combining data center power consumption and grid frequency dynamics is developed, capturing the interactions between IT servers, cooling systems, and energy storage. Control strategies based on frequency deviation are implemented to adjust server power and discharge UPS batteries during frequency events. Case studies on a modified IEEE 39-bus system demonstrate that the proposed strategy can effectively reduce frequency nadir and shorten recovery time without compromising service quality. The results highlight the promising role of data centers as grid-supporting resources in future low-inertia systems.

💡 Research Summary

This paper presents a comprehensive investigation into the potential of large-scale data centers to provide Fast Frequency Response (FFR) to modern power grids, addressing the critical challenge of declining system inertia due to high renewable energy penetration. The core premise is that data centers, as massive and rapidly growing electricity consumers, possess inherent flexibility through their controllable IT workloads and on-site Uninterruptible Power Supply (UPS) battery systems, making them ideal candidates for grid-supporting services that require sub-second response times.

The authors begin by outlining the problem: the replacement of traditional synchronous generators with inverter-based resources like wind and solar reduces the grid’s natural rotational inertia, leading to faster and larger frequency deviations after disturbances like generator trips. Traditional governor-based primary response is often too slow, creating a need for fast-acting resources. The paper then positions data centers as a solution, noting their significant power capacity (tens of MW), measurable load, and the presence of UPS systems capable of very fast (sub-100ms) power modulation.

A key contribution is the development of an integrated dynamic model that couples data center power consumption with grid frequency dynamics. The model breaks down total data center power (P_DC) into three components: IT server load (P_IT), cooling infrastructure load (P_cool), and UPS power exchange (P_UPS). The control strategy is based on a frequency-droop principle. Upon detecting a frequency deviation (Δf), the data center controller takes two coordinated actions: 1) IT Load Modulation: Reducing power by throttling CPU frequencies (using DVFS) or deferring non-critical computational tasks, modeled as ΔP_IT = -K_IT * Δf. 2) UPS Coordination: Injecting power into the grid by discharging the UPS batteries during under-frequency events, modeled as ΔP_UPS = K_UPS * Δf. The combined response is ΔP_DC = -K_DC * Δf, where K_DC = K_IT + K_UPS. This aggregated response is integrated into the system’s swing equation, effectively increasing the grid’s damping and improving transient stability.

The proposed control is hierarchical: the UPS provides near-instantaneous power injection to arrest the frequency drop within hundreds of milliseconds, while the slower IT load modulation sustains the power reduction over a longer period and allows for UPS state-of-charge (SOC) recovery. This design respects data center operational constraints like service-level agreements (SLAs) and battery limits.

The methodology is validated through detailed case studies on a modified IEEE 39-bus test system. A 20 MW data center with the proposed FFR controller is integrated into the grid. Simulations under low-inertia conditions (H=2s) are conducted for two disturbance scenarios: a 200 MW generation loss and a 150 MW load increase. The performance of three cases is compared: baseline (no data center FFR), UPS-only FFR, and the full coordinated FFR strategy. The results clearly demonstrate that the coordinated approach significantly improves system frequency metrics. It raises the frequency nadir (the lowest point of the dip) and reduces the settling time compared to the other cases, all without compromising the data center’s computing service quality.

In conclusion, the paper successfully argues that data centers can transition from being passive, large loads to active, grid-supporting resources. By leveraging real-time workload modulation and UPS coordination, they can emulate virtual inertia and damping, providing crucial fast frequency response services. This capability is particularly valuable for future low-inertia power systems and could also open up new revenue streams for data center operators through participation in ancillary service markets. The work provides both a theoretical framework and simulation-based evidence for this promising convergence of information technology and power system stability.
