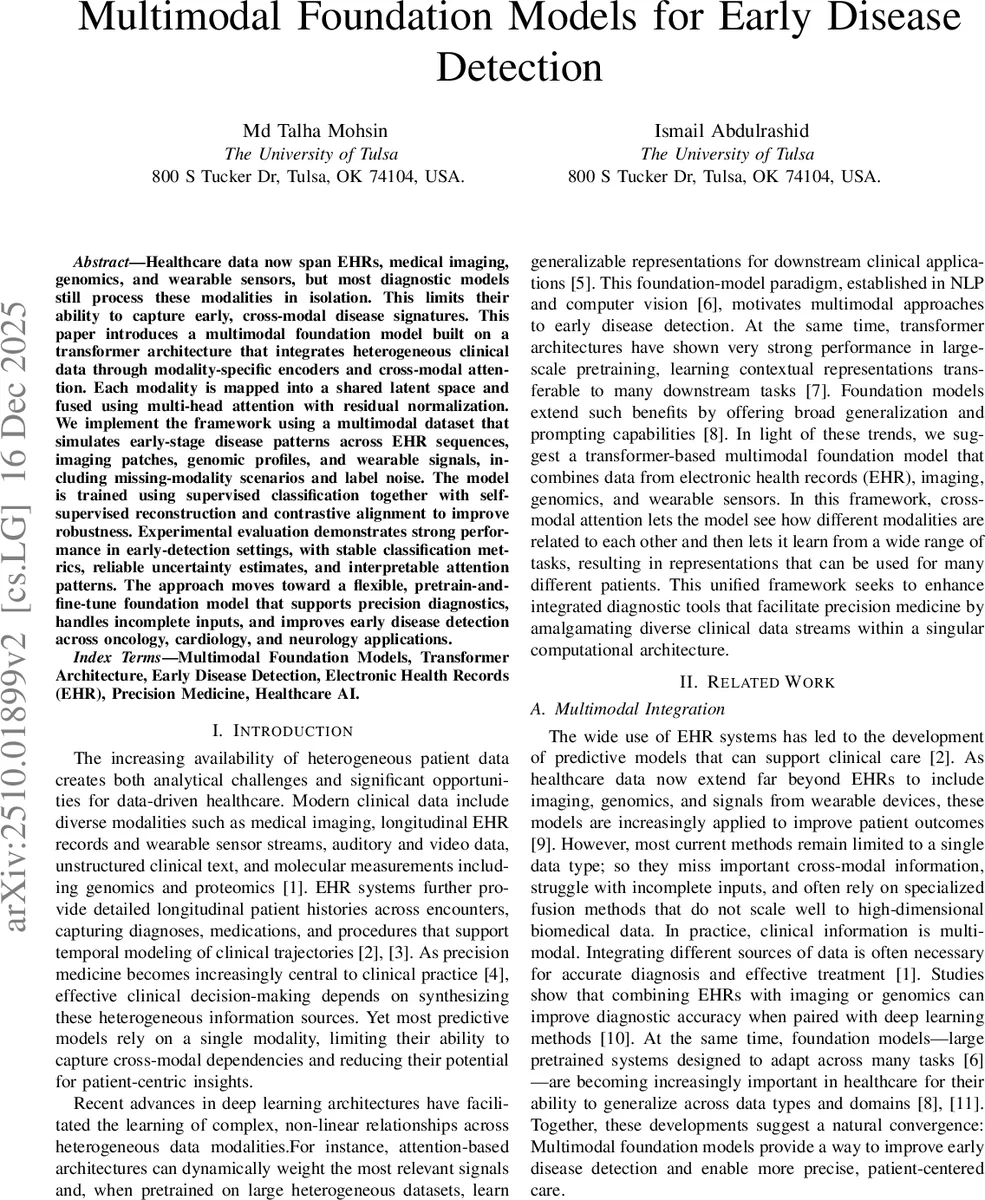

Multimodal Foundation Models for Early Disease Detection

Healthcare data now span EHRs, medical imaging, genomics, and wearable sensors, but most diagnostic models still process these modalities in isolation. This limits their ability to capture early, cross-modal disease signatures. This paper introduces a multimodal foundation model built on a transformer architecture that integrates heterogeneous clinical data through modality-specific encoders and cross-modal attention. Each modality is mapped into a shared latent space and fused using multi-head attention with residual normalization. We implement the framework using a multimodal dataset that simulates early-stage disease patterns across EHR sequences, imaging patches, genomic profiles, and wearable signals, including missing-modality scenarios and label noise. The model is trained using supervised classification together with self-supervised reconstruction and contrastive alignment to improve robustness. Experimental evaluation demonstrates strong performance in early-detection settings, with stable classification metrics, reliable uncertainty estimates, and interpretable attention patterns. The approach moves toward a flexible, pretrain-and-fine-tune foundation model that supports precision diagnostics, handles incomplete inputs, and improves early disease detection across oncology, cardiology, and neurology applications.

💡 Research Summary

This paper addresses a critical gap in modern healthcare AI: while patient data now span electronic health records (EHR), medical imaging, genomics, and wearable sensor streams, most predictive models still operate on a single modality, missing cross‑modal disease signatures that are especially important for early detection. To bridge this gap, the authors propose a multimodal foundation model built on a transformer architecture that integrates heterogeneous clinical data through dedicated modality‑specific encoders and a cross‑modal attention fusion module.

Model Architecture
Each modality is processed by a tailored encoder: a GRU for temporal EHR sequences, a two‑stage CNN (or Vision Transformer) for 32 × 32 imaging patches, a two‑layer MLP for 500‑dimensional genomic profiles, and a temporal CNN/GRU for three‑channel wearable time‑series. All encoders project their outputs into a shared 64‑dimensional latent space. The set of modality embeddings is then concatenated and fed into a multi‑head self‑attention transformer (4 heads, 128‑unit feed‑forward network). Queries, keys, and values are derived from the concatenated embeddings, allowing the model to learn dynamic relationships across modalities. Residual connections and layer‑norm preserve gradient flow and training stability.

Training Strategy
Training proceeds in two stages. First, a large unlabeled multimodal corpus is used for self‑supervised pretraining with two complementary objectives: (i) masked reconstruction of randomly dropped modalities (L_mask) and (ii) CLIP‑style contrastive alignment of paired modalities (L_contrast). This encourages each encoder to learn robust intra‑modal features while aligning representations across modalities. Second, the pretrained network is fine‑tuned on a labeled disease‑prediction task using cross‑entropy loss (L_CE). The total loss is L = L_CE + α L_mask + β L_contrast (α = β = 0.1). To simulate real‑world incompleteness, modality dropout (30 % probability) is applied during both pretraining and fine‑tuning, and label noise (10 % flips) is injected. Uncertainty estimates are obtained via Monte‑Carlo dropout at inference time, and attention weights are retained for interpretability.

Data Simulation
Because publicly available multimodal early‑disease datasets are scarce, the authors generate a synthetic cohort comprising four modalities: (1) ten‑step EHR sequences (12 features per step), (2) 32 × 32 image patches, (3) 500‑dimensional genomic vectors, and (4) 100‑step wearable signals with three channels. Positive cases embed weak, overlapping signals (e.g., subtle trends in labs, mild imaging lesions, modest gene up‑regulation), while negatives contain occasional pseudo‑pathological artifacts to create class overlap. This design tests the model’s ability to detect faint, multimodal cues under noisy conditions.

Experimental Results
Training runs for five epochs (batch size = 16, Adam lr = 1e‑3). The total loss drops from 63.42 to 43.56, indicating convergence despite the noisy setting. On a held‑out test set, the model achieves: accuracy = 0.84, precision = 0.838, recall = 0.869, F1 = 0.853, AUROC = 0.900, and AUPRC = 0.906. ROC and precision‑recall curves are smooth with tight 95 % confidence intervals, and calibration plots show near‑perfect alignment between predicted probabilities and observed frequencies, confirming that the MC‑dropout uncertainty estimates are well‑calibrated. Importantly, performance degrades only marginally when one or more modalities are missing, demonstrating the effectiveness of modality‑dropout training.

Discussion and Limitations
The authors highlight several strengths: (1) cross‑modal attention provides interpretable attention maps that reveal which modality drives a particular prediction; (2) self‑supervised reconstruction and contrastive alignment improve robustness to missing data and label noise; (3) the unified latent space enables rapid fine‑tuning for new tasks, embodying the foundation‑model paradigm. However, the study’s reliance on synthetic data limits conclusions about real‑world generalization. The 64‑dimensional shared space may be insufficient for capturing the full richness of high‑dimensional genomics or imaging data, a point that warrants ablation studies. The model’s modest size (four‑head transformer, five epochs) raises questions about scalability to large clinical repositories. Finally, only MC‑dropout is used for uncertainty quantification; comparison with Bayesian neural networks or deep ensembles would strengthen claims about reliability.

Conclusion and Future Work
The paper presents a compelling proof‑of‑concept that a transformer‑based multimodal foundation model can learn early disease signatures from heterogeneous clinical data, remain robust to missing modalities, and provide calibrated uncertainty estimates. Future directions include (i) validating the approach on real multimodal patient cohorts, (ii) scaling the architecture (more heads, deeper transformers) and exploring larger latent dimensions, (iii) integrating richer self‑supervised objectives such as masked language modeling for clinical notes, and (iv) extending uncertainty estimation to Bayesian or ensemble methods. By addressing these avenues, the proposed framework could evolve into a practical decision‑support system that aids clinicians in early detection across oncology, cardiology, and neurology.
