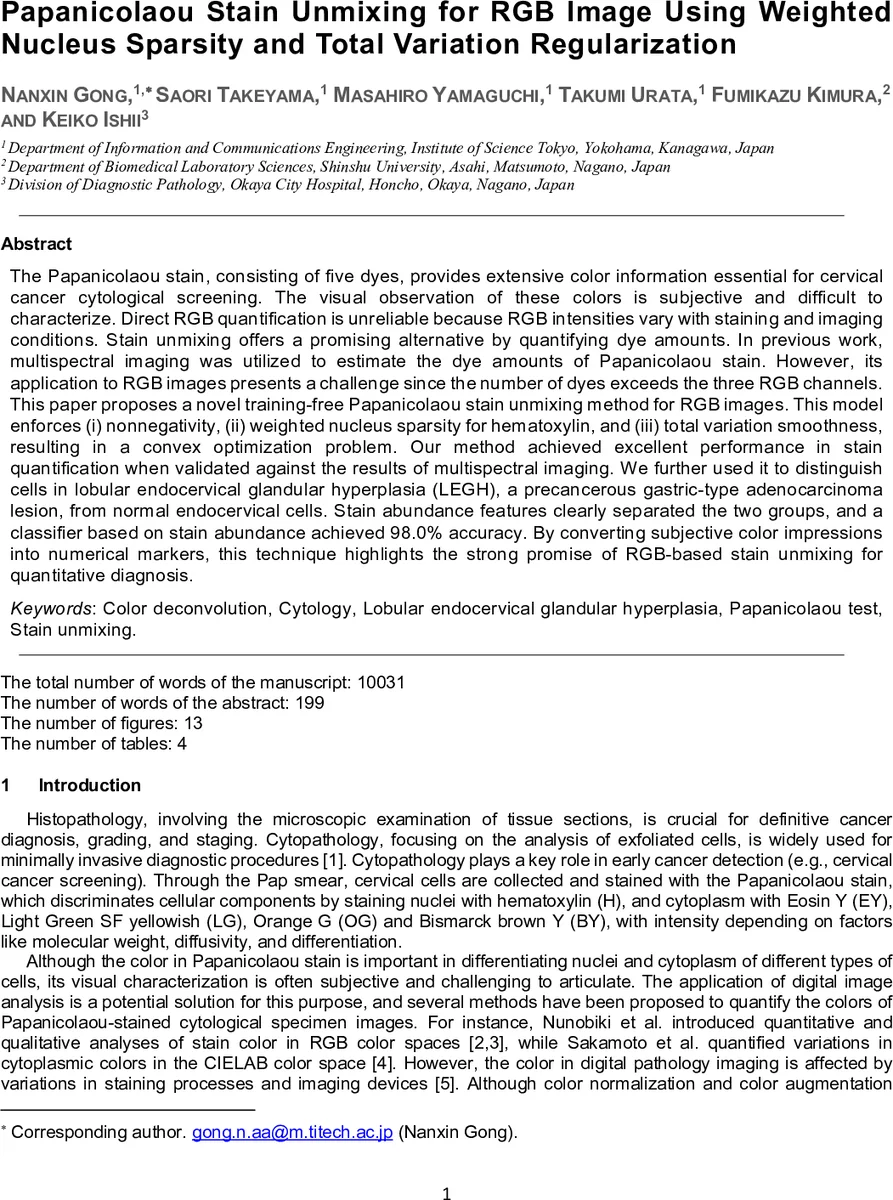

Papanicolaou Stain Unmixing for RGB Image Using Weighted Nucleus Sparsity and Total Variation Regularization

The Papanicolaou stain, consisting of five dyes, provides extensive color information essential for cervical cancer cytological screening. The visual observation of these colors is subjective and difficult to characterize. Direct RGB quantification is unreliable because RGB intensities vary with staining and imaging conditions. Stain unmixing offers a promising alternative by quantifying dye amounts. In previous work, multispectral imaging was utilized to estimate the dye amounts of Papanicolaou stain. However, its application to RGB images presents a challenge since the number of dyes exceeds the three RGB channels. This paper proposes a novel training-free Papanicolaou stain unmixing method for RGB images. This model enforces (i) nonnegativity, (ii) weighted nucleus sparsity for hematoxylin, and (iii) total variation smoothness, resulting in a convex optimization problem. Our method achieved excellent performance in stain quantification when validated against the results of multispectral imaging. We further used it to distinguish cells in lobular endocervical glandular hyperplasia (LEGH), a precancerous gastric-type adenocarcinoma lesion, from normal endocervical cells. Stain abundance features clearly separated the two groups, and a classifier based on stain abundance achieved 98.0% accuracy. By converting subjective color impressions into numerical markers, this technique highlights the strong promise of RGB-based stain unmixing for quantitative diagnosis.

💡 Research Summary

The paper addresses the long‑standing problem of quantifying the five‑dye Papanicolaou stain using only conventional RGB whole‑slide images. Because the number of dyes (five) exceeds the three RGB channels, traditional color deconvolution or blind matrix factorization methods become ill‑posed. The authors propose a training‑free, convex optimization framework that leverages a pre‑measured stain matrix (obtained from single‑dye slides) and three biologically motivated regularizations: (i) non‑negativity of stain abundances, (ii) weighted nucleus sparsity for hematoxylin (H), and (iii) total variation (TV) smoothness across neighboring pixels.

Mathematically, the RGB image is first converted to optical density (OD) space. With the fixed stain matrix O∈ℝ³ˣ⁴ (excluding the nearly transparent Bismarck brown), the unknown abundance matrix Q∈ℝ⁴ˣᴷ is estimated by minimizing

 ‖R – OQ‖₂² + λ₁·TV(Q) + λ₂·∑ₖ wₖ·|Q_Hₖ|  subject to Q ≥ 0,

where R is the OD image, TV(Q) enforces piecewise smoothness, and the weight wₖ is inversely proportional to the current estimate of H at pixel k, thereby encouraging sparsity of H outside nuclear regions while preserving strong nuclear signals. All terms are convex, allowing efficient solution via ADMM or projected gradient methods.

The method was validated against a 14‑band multispectral (MS) reference, which provides ground‑truth dye amounts derived from Beer‑Lambert law. Compared with conventional color deconvolution, NMF, sparse NMF, and SUnSAL‑TV (a hyperspectral unmixing algorithm), the proposed approach achieved lower mean‑square error and higher structural similarity for all four considered dyes (Eosin Y, Hematoxylin, Light Green, Orange G).

To demonstrate clinical relevance, the authors applied the technique to differentiate lobular endocervical glandular hyperplasia (LEGH) from normal endocervical (EC) cells. LEGH cells contain gastric‑type neutral mucin that appears yellowish (higher LG/OG contribution), whereas EC cells have acidic mucin that appears pinkish (higher EY/H contribution). Stain‑abundance features extracted from the RGB‑based unmixing were fed to a simple classifier (logistic regression / SVM), achieving 98 % accuracy and an AUC of 0.96 in five‑fold cross‑validation. This quantitative separation replaces subjective visual assessment with objective numerical markers.

Key contributions of the work are:

1. A fully unsupervised RGB‑only unmixing pipeline capable of handling more dyes than channels by fixing the stain matrix and imposing biologically informed priors.
2. Introduction of a weighted nucleus sparsity regularizer that respects the unique distribution of hematoxylin, overcoming the limitations of generic sparsity assumptions.
3. Integration of TV regularization and non‑negativity to maintain physical plausibility and spatial coherence.
4. Extensive validation against multispectral ground truth and successful application to a clinically important diagnostic task (LEGH vs. EC).

Future directions include extending the model to incorporate the fifth dye (Bismarck brown), testing on a broader range of tissue types, and embedding the algorithm into real‑time whole‑slide imaging pipelines using GPU acceleration. By converting subjective color impressions into reproducible quantitative metrics, this work paves the way for more reliable, automated digital pathology diagnostics.
