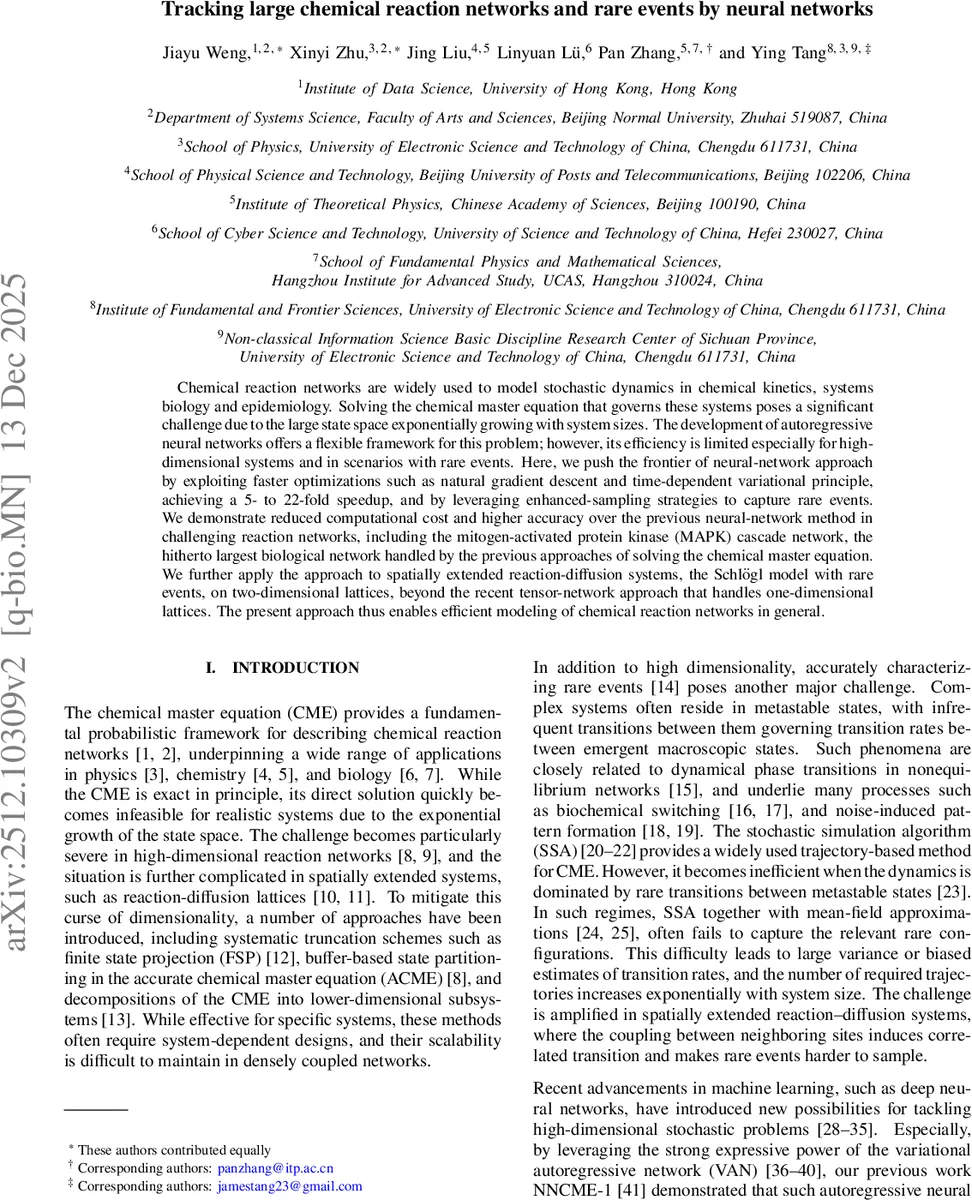

Tracking large chemical reaction networks and rare events by neural networks

Chemical reaction networks are widely used to model stochastic dynamics in chemical kinetics, systems biology and epidemiology. Solving the chemical master equation that governs these systems poses a significant challenge due to the large state space exponentially growing with system sizes. The development of autoregressive neural networks offers a flexible framework for this problem; however, its efficiency is limited especially for high-dimensional systems and in scenarios with rare events. Here, we push the frontier of neural-network approach by exploiting faster optimizations such as natural gradient descent and time-dependent variational principle, achieving a 5- to 22-fold speedup, and by leveraging enhanced-sampling strategies to capture rare events. We demonstrate reduced computational cost and higher accuracy over the previous neural-network method in challenging reaction networks, including the mitogen-activated protein kinase (MAPK) cascade network, the hitherto largest biological network handled by the previous approaches of solving the chemical master equation. We further apply the approach to spatially extended reaction-diffusion systems, the Schlögl model with rare events, on two-dimensional lattices, beyond the recent tensor-network approach that handles one-dimensional lattices. The present approach thus enables efficient modeling of chemical reaction networks in general.

💡 Research Summary

This paper presents “NNCME-2,” a significantly advanced neural network framework for solving the chemical master equation (CME), which governs the stochastic dynamics of chemical reaction networks. The CME is fundamental in fields like systems biology and chemical kinetics, but its direct solution is intractable for realistic systems due to the exponential explosion of the state space with the number of molecular species.

The core of the method is a Variational Autoregressive Network (VAN), which represents the high-dimensional probability distribution as a product of autoregressive conditional probabilities, enabling efficient sampling and automatic normalization. To improve upon the previous iteration (NNCME-1), the authors introduce two major enhancements: accelerated optimization and robust rare-event sampling.

First, to boost computational efficiency, NNCME-2 replaces standard stochastic gradient descent (SGD) with second-order optimization techniques. Specifically, it employs Natural Gradient (NG) descent, which rescales parameter updates using the inverse Fisher information matrix to account for the geometry of the parameter space, leading to faster convergence. It also implements the Time-Dependent Variational Principle (TDVP), which provides a more theoretically grounded time integration on the variational manifold. These methods, combined with the use of a Neural Autoregressive Distribution Estimator (NADE) architecture instead of sequential RNNs, achieve a 5x to 22x speedup in training, as demonstrated on a genetic toggle switch model.

Second, to accurately capture rare events—infrequent transitions between metastable states that are crucial in many complex systems—the framework integrates enhanced sampling strategies into the training loop. These strategies actively encourage exploration of low-probability regions: (1) Mixture Sampling: mixes samples from the current VAN distribution with those from a uniform distribution. (2) Diffusive Sampling: applies a kernel to diffuse existing samples, exploring their neighborhoods. (3) Alpha Sampling: temporarily reweights the distribution using an exponent to amplify low-probability states. These techniques are critical for obtaining accurate statistics of rare transitions.

The authors validate NNCME-2 on several challenging benchmarks. It successfully tracks the dynamics of the mitogen-activated protein kinase (MAPK) cascade, a network with 16 species and 35 reactions, noted as the largest biological network solved by CME-based methods to date. Furthermore, they apply the method to spatially extended reaction-diffusion systems, specifically the Schlögl model on both 1D and 2D lattices. The successful application to a 2D lattice (2x4) surpasses the capabilities of recent tensor-network approaches, which were limited to 1D systems, showcasing the flexibility and scalability of the neural network method.

In summary, NNCME-2 represents a substantial leap forward by simultaneously addressing the twin challenges of computational cost for high-dimensional systems and the accurate characterization of rare events. It establishes a powerful and general framework for modeling stochastic chemical reaction networks that were previously intractable.
