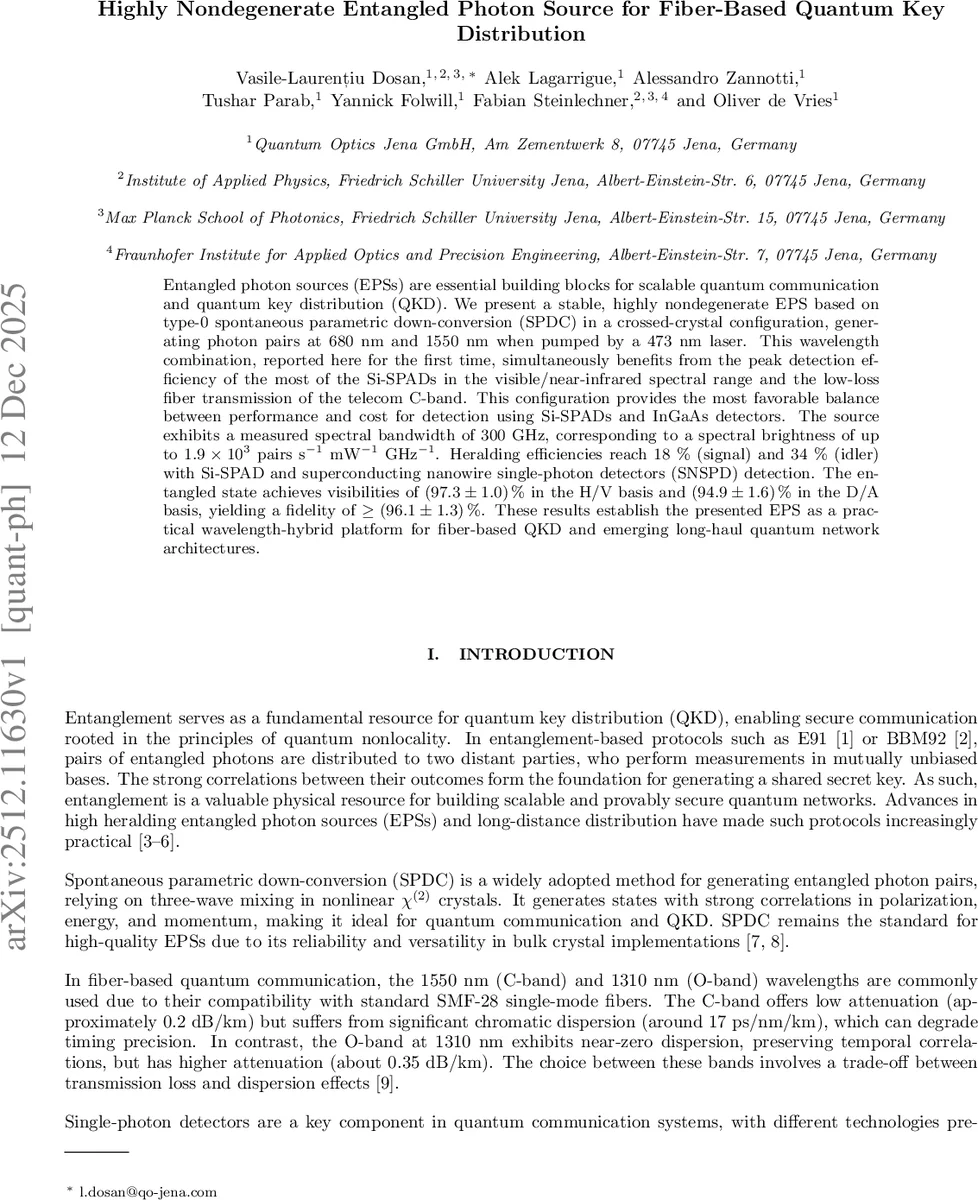

Highly Nondegenerate Entangled Photon Source for Fiber-Based Quantum Key Distribution

Entangled photon sources (EPSs) are essential building blocks for scalable quantum communication and quantum key distribution (QKD). We present a stable, highly nondegenerate EPS based on type-0 spontaneous parametric down-conversion (SPDC) in a crossed-crystal configuration, generating photon pairs at 680nm and 1550nm when pumped by a 473nm laser. This wavelength combination, reported here for the first time, simultaneously benefits from the peak detection efficiency of the most of the Si-SPADs in the visible/near-infrared spectral range and the low-loss fiber transmission of the telecom C-band. This configuration provides the most favorable balance between performance and cost for detection using Si-SPADs and InGaAs detectors. The source exhibits a measured spectral bandwidth of 300GHz, corresponding to a spectral brightness of up to $1.9\times 10^3$pairss$^{-1}$mW$^{-1}$GHz$^{-1}$. Heralding efficiencies reach 18% (signal) and 34% (idler) with Si-SPAD and superconducting nanowire single-photon detectors (SNSPD) detection. The entangled state achieves visibilities of $(97.3\pm 1.0),%$ in the H/V basis and $(94.9\pm1.6),%$ in the D/A basis, yielding a fidelity of $\geq(96.1\pm1.3),%$. These results establish the presented EPS as a practical wavelength-hybrid platform for fiber-based QKD and emerging long-haul quantum network architectures.

💡 Research Summary

The paper presents a highly nondegenerate entangled photon source (EPS) designed for fiber‑based quantum key distribution (QKD). Using a 473 nm diode‑pumped solid‑state laser (DPSSL) as the pump, the authors employ a crossed‑crystal configuration of two 10 mm periodically poled KTiOPO₄ (ppKTP) crystals to generate polarization‑entangled photon pairs at 680 nm (visible/near‑infrared) and 1550 nm (telecom C‑band). This wavelength pair is novel; 680 nm lies in the peak detection efficiency region of silicon single‑photon avalanche diodes (Si‑SPADs), while 1550 nm experiences minimal attenuation in standard single‑mode fiber.

The source operates in a type‑0 SPDC regime, with orthogonal crystal axes providing the H and V components of the entangled state. A 3.6 mm calcite plate in the idler arm compensates the relative phase ϕ, ensuring a stable superposition across the emission spectrum. The pump beam is focused with a dimensionless focusing parameter ξ = 0.02, corresponding to a waist of 194 µm inside the crystal. Simulations yield optimal collection waists of 87 µm (signal) and 141 µm (idler), maximizing coupling into single‑mode fibers.

Spectrally, the source exhibits a measured full‑width at half‑maximum (FWHM) of 326 GHz for the idler, which, after deconvolution of the 125 GHz filter response, corresponds to an intrinsic bandwidth of ≈300 GHz (≈2.4 nm). This narrow bandwidth reduces chromatic dispersion in long‑distance fiber links while maintaining a high spectral brightness of 1.9 × 10³ pairs · s⁻¹ · mW⁻¹ · GHz⁻¹. The pair generation rate scales linearly with pump power, and the brightness is confirmed by fitting the linear slope of the generation rate versus pump power.

Detection is performed with two configurations. In the high‑performance case, the idler photon is measured with a superconducting nanowire single‑photon detector (SNSPD) featuring 35 % detection efficiency and a 25 ns dead time; the signal photon is detected with a Si‑SPAD (≈60 % efficiency). This yields heralding efficiencies of 18 % for the signal and 34 % for the idler. When the idler is measured with an InGaAs‑SPAD (20 % efficiency, 20 µs dead time), the heralding efficiency drops dramatically (≈2 % for the signal) due to long dead time and after‑pulsing, illustrating the critical impact of detector choice on system performance.

Entanglement quality is assessed by measuring polarization correlations in the horizontal/vertical (H/V) and diagonal/anti‑diagonal (D/A) bases. The visibilities are 97.3 % ± 1.0 % (H/V) and 94.9 % ± 1.6 % (D/A), leading to a state fidelity of at least 96.1 % ± 1.3 %. These values are stable over extended measurement periods, confirming the effectiveness of the phase‑compensation scheme and the overall robustness of the source.

The authors argue that this hybrid wavelength EPS offers an optimal trade‑off between detection cost and performance: inexpensive Si‑SPADs can be used for the visible photon, while the telecom photon benefits from low‑loss fiber transmission and can be detected with either high‑performance SNSPDs or more practical InGaAs devices, depending on the application. The use of a single‑line, narrow‑linewidth 473 nm DPSSL ensures long‑term wavelength and power stability, essential for field‑deployed QKD systems.

In summary, the work demonstrates a compact, stable, and high‑brightness source of 680 nm/1550 nm entangled photons with excellent heralding efficiencies and entanglement fidelity. Its design addresses key practical challenges for scalable quantum networks, making it a strong candidate for integration into commercial fiber‑based QKD infrastructures and future long‑haul quantum communication architectures.
