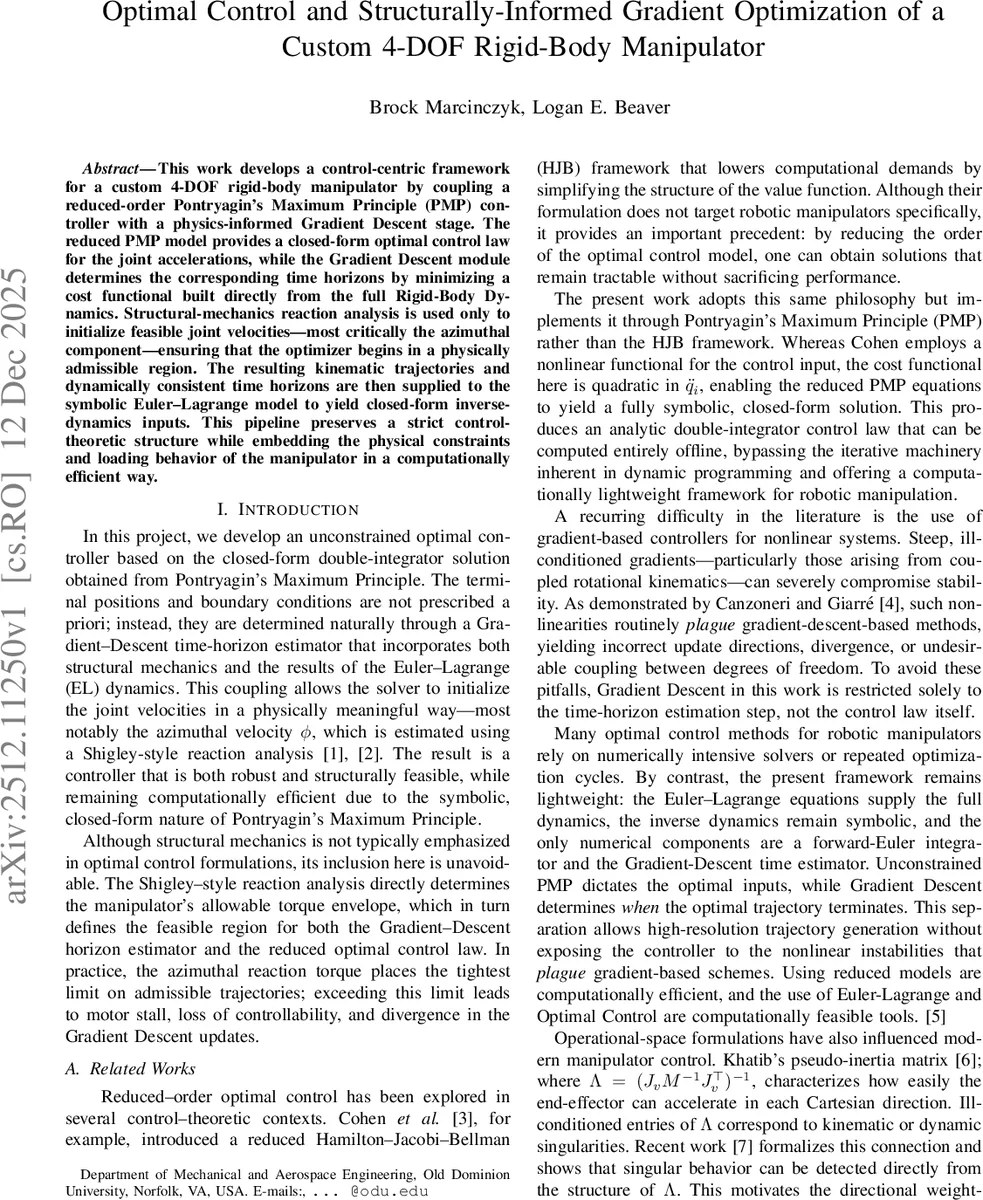

Optimal Control and Structurally-Informed Gradient Optimization of a Custom 4-DOF Rigid-Body Manipulator

This work develops a control-centric framework for a custom 4-DOF rigid-body manipulator by coupling a reduced-order Pontryagin’s Maximum Principle (PMP) controller with a physics-informed Gradient Descent stage. The reduced PMP model provides a closed-form optimal control law for the joint accelerations, while the Gradient Descent module determines the corresponding time horizons by minimizing a cost functional built directly from the full Rigid-Body Dynamics. Structural-mechanics reaction analysis is used only to initialize feasible joint velocities-most critically the azimuthal component-ensuring that the optimizer begins in a physically admissible region. The resulting kinematic trajectories and dynamically consistent time horizons are then supplied to the symbolic Euler-Lagrange model to yield closed-form inverse-dynamics inputs. This pipeline preserves a strict control-theoretic structure while embedding the physical constraints and loading behavior of the manipulator in a computationally efficient way.

💡 Research Summary

This paper presents a novel, control-centric framework for the optimal trajectory generation and control of a custom 4-degree-of-freedom (DOF) rigid-body manipulator. The core innovation lies in a hierarchical coupling of a reduced-order optimal controller with a physics-informed numerical optimizer, effectively balancing computational efficiency with physical fidelity.

The framework begins with a complete Euler-Lagrange dynamic model of the manipulator, derived in a spherical coordinate system for compactness. The model includes mass matrix, Coriolis/centrifugal terms, gravity, and virtual spring-damper elements representing actuator compliance and limits. Concurrently, a structural mechanics analysis based on Shigley’s methods is performed. This analysis calculates reaction torque surfaces, particularly for the critical azimuthal joint, defining the physically admissible region of operation and the system’s maximum payload capacity (approximately 15 lbs in this study). This region is bounded by the motor’s stall torque limit.

The control synthesis is a two-stage process. The first stage employs a reduced-order Pontryagin’s Maximum Principle (PMP) controller. By modeling the system as a double integrator and minimizing a quadratic cost in joint accelerations, a closed-form, analytic optimal control law is derived. This law generates smooth, rest-to-rest kinematic trajectories (joint position and velocity) as cubic Hermite polynomials that perfectly satisfy user-defined boundary conditions. However, the time horizon for these trajectories remains an open parameter.

The second stage introduces a Gradient Descent-based Time Horizon Estimator. This module determines the optimal time scale by minimizing a cost functional built directly from the full rigid-body dynamics Hamiltonian (kinetic, potential, and virtual spring energy) and a task-space error metric. Crucially, the initial joint velocities for this Gradient Descent optimizer—especially the azimuthal velocity—are initialized using the prior structural mechanics analysis, ensuring the search starts within a physically feasible region and avoids divergence. Furthermore, the cost function incorporates an inverse operational-space inertia weighting scheme, which automatically penalizes motion toward kinematically singular or low-inertia directions, enhancing numerical stability.

Finally, the PMP-generated optimal kinematics, now paired with the dynamically consistent time horizons from Gradient Descent, form a complete trajectory specification. This specification is fed into the symbolic Euler-Lagrange inverse dynamics model to produce closed-form torque-level control inputs. The resulting control pipeline is computationally lightweight (relying on an analytic PMP solution and only using Gradient Descent for scalar time-horizon estimation), while rigorously embedding the nonlinear rigid-body dynamics, actuator limits, and structural constraints into the optimal solution. The paper concludes with numerical simulations demonstrating the convergence, smooth trajectories, and structural feasibility achieved by the proposed framework.
