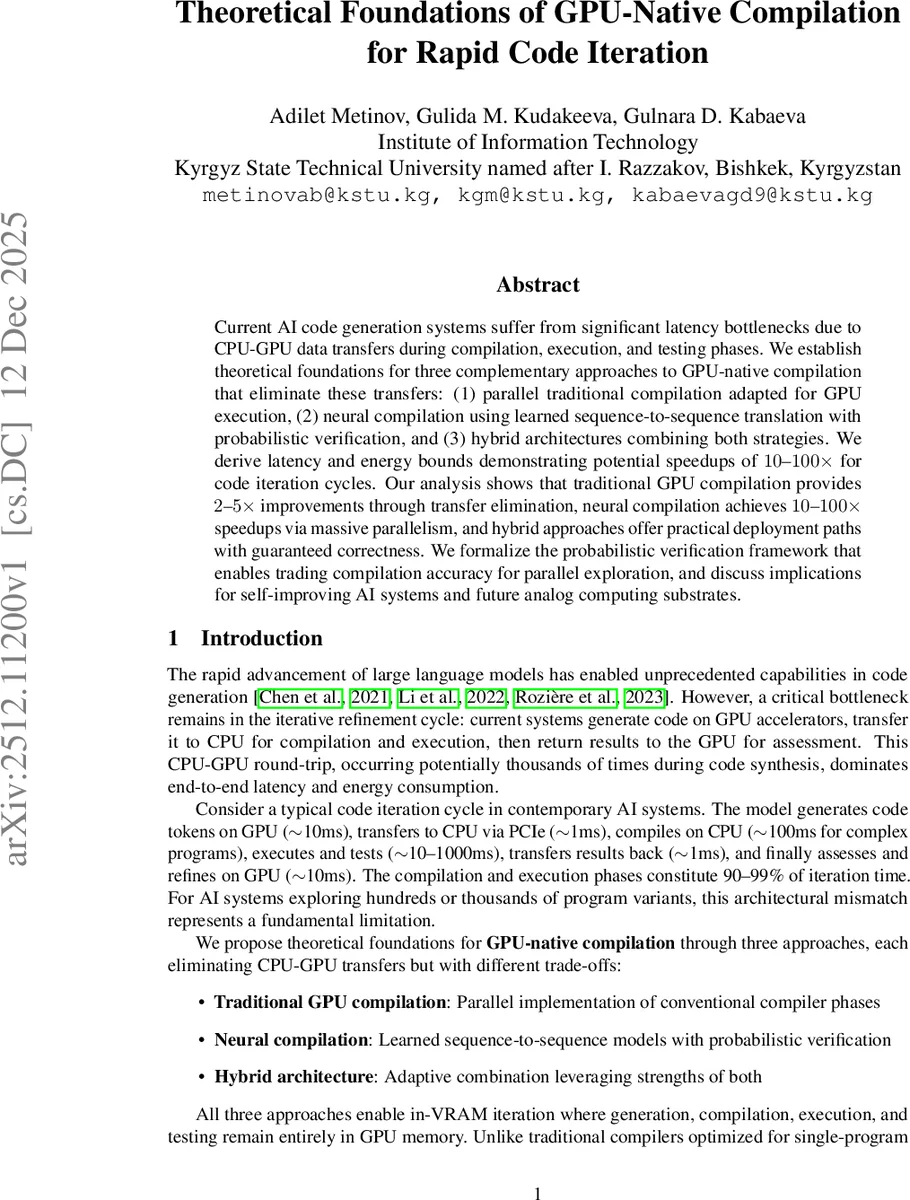

Theoretical Foundations of GPU-Native Compilation for Rapid Code Iteration

Current AI code generation systems suffer from significant latency bottlenecks due to CPU-GPU data transfers during compilation, execution, and testing phases. We establish theoretical foundations for three complementary approaches to GPU-native compilation that eliminate these transfers: (1) parallel traditional compilation adapted for GPU execution, (2) neural compilation using learned sequence-to-sequence translation with probabilistic verification, and (3) hybrid architectures combining both strategies. We derive latency and energy bounds demonstrating potential speedups of 10-100x for code iteration cycles. Our analysis shows that traditional GPU compilation provides 2-5x improvements through transfer elimination, neural compilation achieves 10-100x speedups via massive parallelism, and hybrid approaches offer practical deployment paths with guaranteed correctness. We formalize the probabilistic verification framework that enables trading compilation accuracy for parallel exploration, and discuss implications for self-improving AI systems and future analog computing substrates.

💡 Research Summary

The paper addresses a critical performance bottleneck in modern AI‑driven code generation pipelines: the repeated transfer of generated source code from the GPU (where large language models run) to the CPU for compilation, execution, and testing, followed by a return of results to the GPU. Empirical observations show that this CPU‑GPU round‑trip consumes 90 %–99 % of the total iteration time, especially when thousands of candidate programs are explored, as in systems like AlphaCode. To eliminate this latency and the associated energy cost, the authors propose three complementary “GPU‑native compilation” strategies that keep the entire compile‑execute‑verify loop inside GPU memory.

1. Traditional GPU Compilation – The authors adapt each phase of a conventional compiler (lexing, parsing, type checking, IR generation, optimization, code generation) into separate GPU kernels. By launching one thread block per program, k programs can be compiled in parallel. Lexing is trivially parallel; parsing is handled with parallel LR or bounded‑depth recursive‑descent algorithms, yielding O(n log n) complexity. Type checking uses lock‑free hash tables, and data‑flow analyses are expressed as work‑list algorithms. Theoretical latency for a single program is the sum of phase times, while parallel latency for k ≤ P (GPU cores) is the maximum per‑program pipeline time. Expected speed‑up over a CPU baseline comes mainly from eliminating PCIe transfers (≈2–4 ms per iteration) and from parallel throughput, giving 2–5× improvement for moderate batch sizes (10–100 programs). Advantages include deterministic correctness, full language support, and mature debugging tools; drawbacks are limited intra‑program parallelism, irregular memory accesses that under‑utilize the GPU, and engineering effort to port existing compilers.

2. Neural Compilation – A transformer‑based sequence‑to‑sequence model learns to translate source code directly into bytecode. Training proceeds in two stages: supervised learning on (source, bytecode) pairs, then reinforcement learning where execution results provide a reward that balances correctness, execution time, and compilation success. During inference, the model samples k candidates in parallel (temperature or nucleus sampling) and a probabilistic verification framework evaluates them against a test suite. The authors define p_correct(C) as the probability that a single sampled bytecode is correct, empirically ranging from 0.3–0.5 for simple code to <0.01 for rare patterns. The success probability after k samples is 1‑(1‑p_correct)^k, and the number of samples needed for 99 % confidence is approximately 4.6/p_correct. For k = 1000, even low‑probability cases become tractable. Latency is modeled as T_gen(k) = O(L·n·d²·k/P) for generation and T_verify(k) = O(T_exec·k/P) for parallel execution, yielding total times of 150–700 ms for 1000 candidates—10–100× faster than serial CPU compilation of the same batch. The approach offers massive parallelism and the ability to learn new language idioms without hand‑crafted rules, but it lacks deterministic guarantees, requires large training datasets (up to billions of examples for full‑language models), and consumes significant GPU memory (model parameters 1–10 GB plus candidate storage).

3. Hybrid Compilation – The hybrid scheme routes programs based on a lightweight complexity score (derived from source length, nesting depth, loop count, etc.). Simple programs are sent to the neural path; complex ones fall back to the traditional GPU compiler. The overall latency is a weighted sum of the two paths plus routing overhead: T_hybrid = p_simple·T_neural + (1‑p_simple)·T_trad + T_routing. With typical values (p_simple≈0.8, T_neural≈0.2 ms amortized, T_trad≈20 ms, T_routing≈2 ms) the hybrid latency drops to ≈6 ms, delivering 5–20× speed‑up while preserving correctness via the fallback path. The trade‑off is increased system complexity and the need to maintain two full compilation pipelines.

The paper also provides energy analyses: PCIe transfers consume ≈25 mJ per 1 KB transfer, while CPU compilation can require ≈15 J per program. GPU‑native approaches reduce energy by orders of magnitude (e.g., neural compilation of 1000 programs uses ≈60 J total, i.e., 60 mJ per program). Memory footprints are discussed: traditional GPU compilation needs 20–200 MB for 100 programs; neural compilation adds 1–12 GB due to model parameters and candidate storage.

Beyond digital GPUs, the authors speculate on future analog or neuromorphic substrates where code is represented as analog signals, compilation corresponds to physical reconfiguration, and execution is signal propagation. They argue that such substrates could approach thermodynamic limits of energy efficiency and provide unprecedented parallelism, though challenges include precision, programmability, and verification.

In summary, the work establishes a rigorous theoretical foundation for eliminating the CPU‑GPU transfer bottleneck in AI code synthesis. It quantifies latency and energy bounds for three distinct GPU‑native strategies, introduces a probabilistic verification framework to manage correctness‑throughput trade‑offs, and outlines practical deployment scenarios ranging from small‑scale debugging to large‑scale production systems. The analysis highlights both the promise (up to 100× speed‑up, massive energy savings) and the practical challenges (engineering effort, memory demands, lack of deterministic guarantees) that must be addressed to realize self‑improving, high‑throughput AI compilers on current and future hardware.
