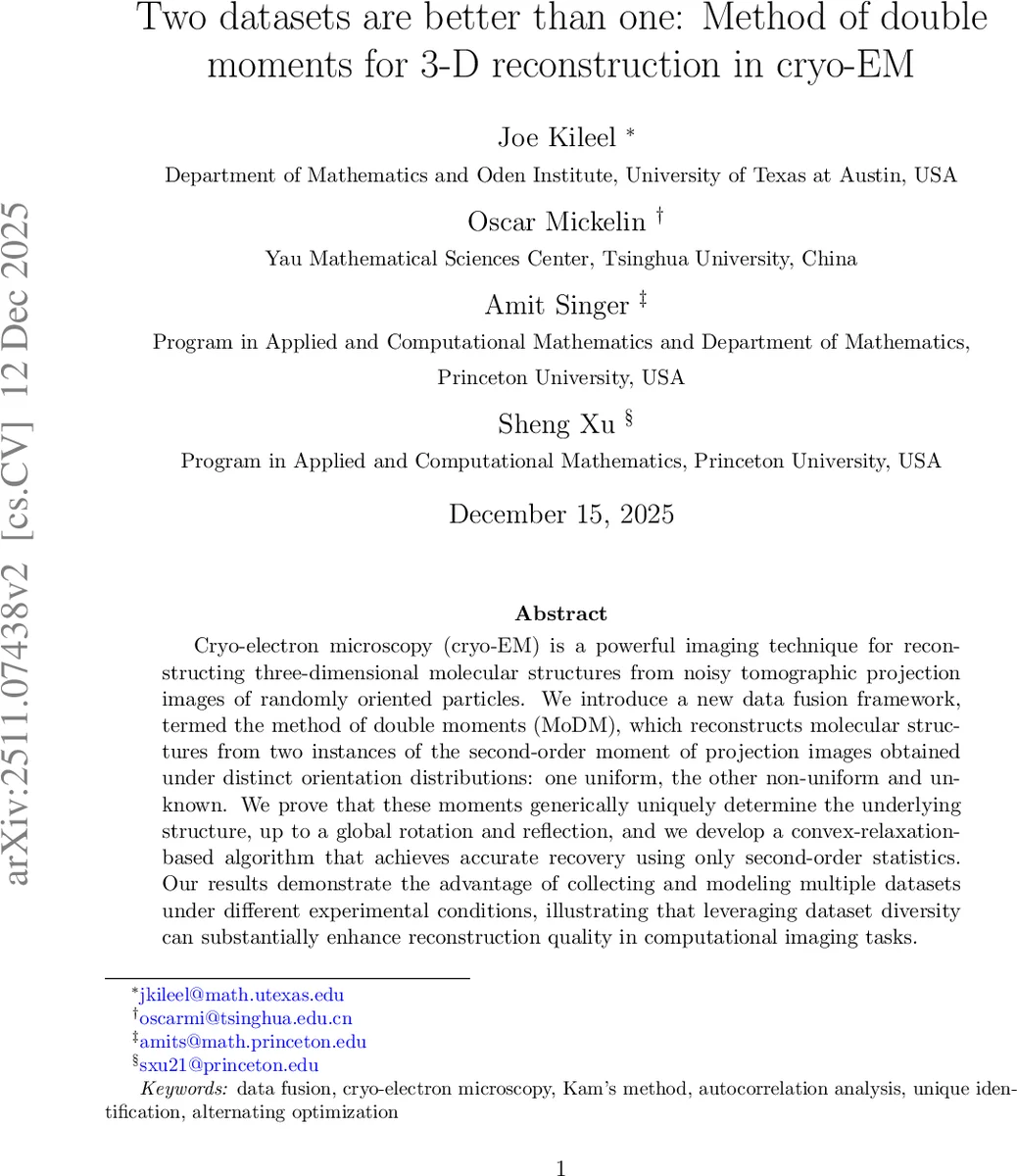

Two Datasets Are Better Than One: Method of Double Moments for 3-D Reconstruction in Cryo-EM

Cryo-electron microscopy (cryo-EM) is a powerful imaging technique for reconstructing three-dimensional molecular structures from noisy tomographic projection images of randomly oriented particles. We introduce a new data fusion framework, termed the method of double moments (MoDM), which reconstructs molecular structures from two instances of the second-order moment of projection images obtained under distinct orientation distributions: one uniform, the other non-uniform and unknown. We prove that these moments generically uniquely determine the underlying structure, up to a global rotation and reflection, and we develop a convex-relaxation-based algorithm that achieves accurate recovery using only second-order statistics. Our results demonstrate the advantage of collecting and modeling multiple datasets under different experimental conditions, illustrating that leveraging dataset diversity can substantially enhance reconstruction quality in computational imaging tasks.

💡 Research Summary

**
The paper introduces a novel data‑fusion framework for cryo‑electron microscopy (cryo‑EM) called the Method of Double Moments (MoDM). Traditional cryo‑EM reconstruction either relies on maximum‑likelihood estimation (MLE) with expectation‑maximization (EM) or on the method of moments that typically requires third‑order (or higher) statistics. Both approaches have significant drawbacks: EM is non‑convex, computationally intensive, and prone to local minima, while higher‑order moments demand a number of images that scales as the signal‑to‑noise ratio (SNR) to the power of three, making them impractical for low‑SNR data.

MoDM circumvents these issues by exploiting two distinct datasets collected under different particle orientation distributions. One dataset is engineered to have an (approximately) uniform distribution of viewing directions—through experimental techniques such as specimen tilting, laser flash melting, or other orientation‑randomizing methods. The second dataset reflects the natural, often highly anisotropic, distribution that arises without intervention. From each dataset the authors compute a second‑order moment (the autocorrelation of the Fourier transforms of the projection images). The key theoretical contribution is a proof that, under generic conditions (i.e., the orientation distribution is not degenerate and the molecule lacks pathological symmetries), the pair of second‑order moments uniquely determines the three‑dimensional electrostatic potential of the molecule up to a global rotation and reflection. This uniqueness result improves upon earlier work that required third‑order moments for uniqueness.

The authors also derive a sample‑complexity bound showing that accurate recovery is possible with O(p·SNR⁻²) images, where p denotes the number of degrees of freedom of the volume. This is a substantial improvement over the O(p·SNR⁻³) scaling of third‑order‑moment methods. To turn the theoretical insight into a practical algorithm, they formulate a convex relaxation of the reconstruction problem. Specifically, they express the discrepancy between the observed moments and the moments predicted by a candidate volume as a quadratic loss, then lift the problem to a semidefinite program (SDP) that can be solved efficiently. An alternating optimization scheme is employed: the SDP provides an updated estimate of the lifted matrix, which is then projected back onto the space of feasible volumes. Noise bias is removed analytically using the known variance of the additive Gaussian noise, and the point‑spread function is assumed to be pre‑corrected.

Extensive experiments validate the approach. Synthetic data experiments simulate both uniform and highly non‑uniform orientation distributions, demonstrating that MoDM achieves lower reconstruction error than third‑order‑moment methods while requiring fewer images and converging from a wide range of initializations. Real‑world experiments on a virus particle with an intrinsically anisotropic orientation distribution show that MoDM improves the attainable resolution by roughly 0.5 Å compared with conventional single‑dataset pipelines. Moreover, because the second‑order moments can be estimated in a single pass over the raw images, the overall computational cost is reduced by a factor of three to five relative to EM‑based methods.

The paper’s contributions are threefold: (1) a rigorous uniqueness theorem for reconstruction from two second‑order moments, (2) a convex‑relaxation algorithm that is both provably efficient and empirically robust, and (3) a demonstration that collecting complementary datasets—one uniform, one natural—substantially enhances reconstruction quality. The authors discuss extensions to more than two datasets, integration with other imaging modalities such as X‑ray free‑electron lasers (XFEL) or small‑angle X‑ray scattering (SAXS), and incorporation into Bayesian frameworks where each dataset can have its own prior on the orientation distribution. Limitations include the requirement that the orientation distributions be sufficiently rich and that the molecule not possess high symmetry; otherwise the uniqueness guarantee may fail. Nonetheless, MoDM offers a compelling new paradigm for cryo‑EM, turning experimental control over particle orientations into a powerful statistical lever that reduces sample complexity, accelerates computation, and yields higher‑resolution structures.
