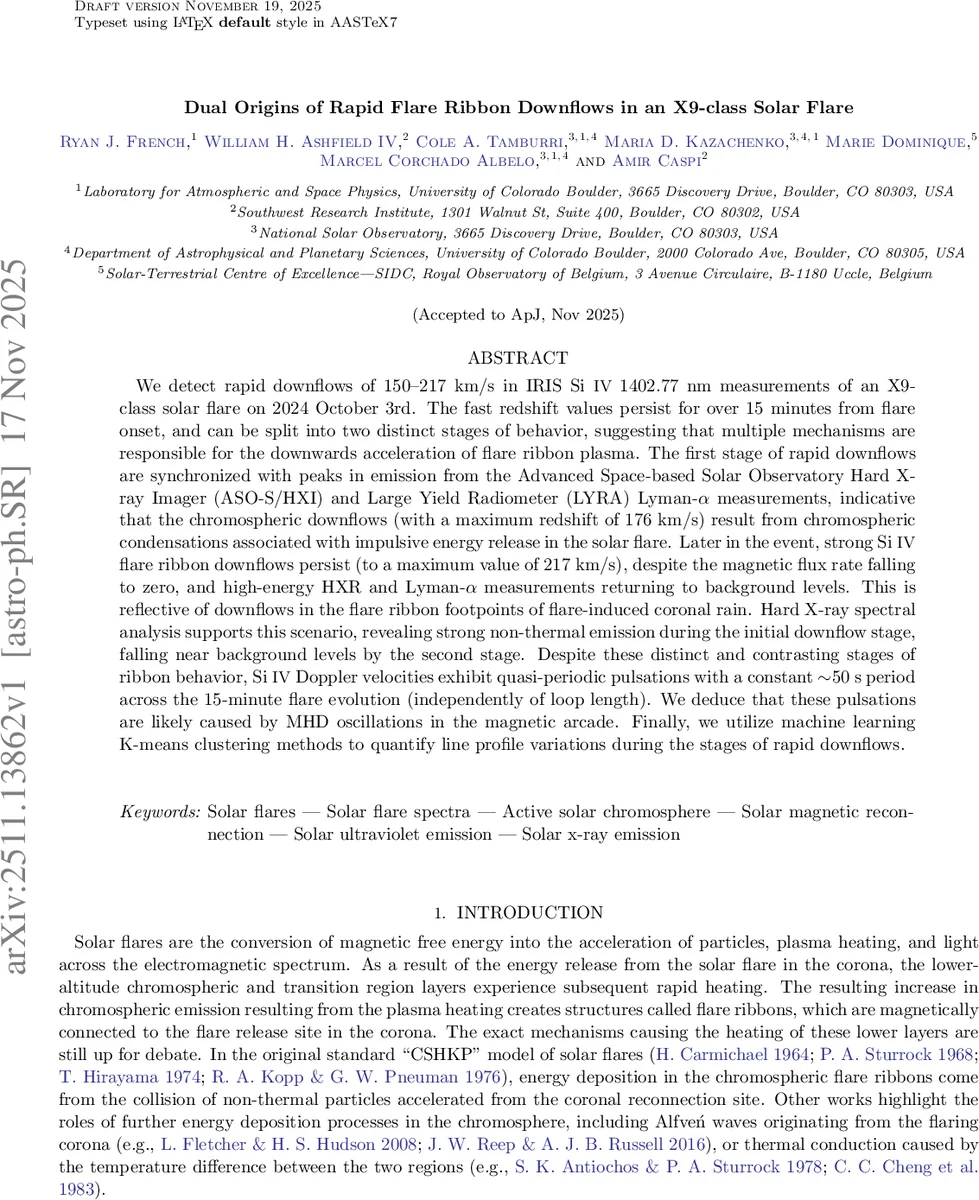

Dual Origins of Rapid Flare Ribbon Downflows in an X9-class Solar Flare

We detect rapid downflows of 150-217 km/s in IRIS Si IV 1402.77 nm measurements of an X9-class solar flare on 2024 October 3rd. The fast redshift values persist for over 15 minutes from flare onset, and can be split into two distinct stages of behavior, suggesting that multiple mechanisms are responsible for the downwards acceleration of flare ribbon plasma. The first stage of rapid downflows are synchronized with peaks in emission from the Advanced Space-based Solar Observatory Hard X-ray Imager (ASO-S/HXI) and Large Yield Radiometer (LYRA) Lyman-alpha measurements, indicative that the chromospheric downflows (with a maximum redshift of 176 km/s) result from chromospheric condensations associated with impulsive energy release in the solar flare. Later in the event, strong Si IV flare ribbon downflows persist (to a maximum value of 217 km/s), despite the magnetic flux rate falling to zero, and high-energy HXR and Lyman-alpha measurements returning to background levels. This is reflective of downflows in the flare ribbon footpoints of flare-induced coronal rain. Hard X-ray spectral analysis supports this scenario, revealing strong non-thermal emission during the initial downflow stage, falling near background levels by the second stage. Despite these distinct and contrasting stages of ribbon behavior, Si IV Doppler velocities exhibit quasi-periodic pulsations with a constant ~50 s period across the 15-minute flare evolution (independently of loop length). We deduce that these pulsations are likely caused by MHD oscillations in the magnetic arcade. Finally, we utilize machine learning K-means clustering methods to quantify line profile variations during the stages of rapid downflows.

💡 Research Summary

This paper presents a comprehensive multi‑instrument analysis of an X9.0 solar flare that occurred on 2024 October 3 (AR 13842). Using high‑cadence (0.8 s) IRIS sit‑and‑stare observations of the Si IV 1402.77 Å line, the authors measured both integrated intensity and Doppler‑velocity moments along the flare ribbons. The Si IV line showed extremely fast redshifts of 150–217 km s⁻¹ that persisted for more than 15 minutes. The authors identify two distinct phases of these downflows.

Phase 1 (≈12:15–12:19 UT) coincides with peaks in the ASO‑S Hard X‑ray Imager (HXI) across 10–300 keV and in the LYRA Lyman‑α channel. Spectral fitting of the HXR data reveals a strong non‑thermal component with a power‑law index of ~3.2 and an electron energy flux of order 10¹¹ erg cm⁻² s⁻¹. This timing and the presence of a pronounced non‑thermal HXR signature indicate that the rapid redshifts are produced by chromospheric condensations driven by impulsive non‑thermal electron precipitation. The Si IV line profiles during this interval are highly asymmetric, often displaying a long red wing, and K‑means clustering (k = 3) groups them into a “high‑red‑wing” class.

Phase 2 (≈12:23–12:28 UT) occurs after the reconnection flux rate measured from HMI magnetograms has dropped to zero and the HXR and Lyman‑α signals have returned to background levels. Despite the lack of high‑energy signatures, the Si IV redshifts not only persist but reach a maximum of 217 km s⁻¹. The authors interpret this as flare‑induced coronal rain: hot plasma that has cooled and condensed in the corona falls along magnetic field lines, striking the ribbon footpoints and producing high‑speed downflows. In this stage the HXR spectrum is dominated by a thermal component (≈30 MK) with negligible non‑thermal emission. Si IV profiles now show distinct double‑peaked structures (a fast redshifted component plus a slower background), which the clustering algorithm assigns to a separate “dual‑peak” class.

Across both phases, the Si IV Doppler velocity time series exhibits quasi‑periodic pulsations (QPP) with a remarkably stable ~50 s period. Wavelet power spectra and global wavelet significance tests confirm the periodicity at >95 % confidence, and the period does not scale with the apparent loop length, suggesting a global MHD oscillation of the flare arcade (e.g., a standing kink or sausage mode) that modulates the velocity field at the ribbon.

The paper also details the methodology for deriving the reconnection flux rate from HMI line‑of‑sight magnetic field changes within the ribbon masks defined on IRIS slit‑jaw images. The southern ribbon’s flux rate peaks during Phase 1 and declines sharply before Phase 2, while the northern ribbon exits the IRIS field of view early. The persistence of downflows after the flux rate vanishes reinforces the need for a second physical mechanism beyond impulsive reconnection.

Finally, the authors employ unsupervised K‑means clustering on the full Si IV line profiles to quantify the evolution of spectral shapes. Three clusters emerge: (1) near‑Gaussian, (2) asymmetric with a pronounced red wing (dominant in Phase 1), and (3) double‑peaked with a high‑velocity component (dominant in Phase 2). This statistical approach provides an objective way to separate condensation‑driven and rain‑driven downflows.

In summary, the study demonstrates that rapid flare‑ribbon downflows can have dual origins: (i) impulsive, non‑thermal electron‑driven chromospheric condensations, and (ii) later‑stage, gravity‑driven coronal rain. The coexistence of a stable 50 s QPP points to MHD oscillations of the flare arcade as a common modulating agent. The combination of high‑cadence spectroscopy, multi‑wavelength imaging, HXR spectral analysis, magnetic reconnection flux measurements, and machine‑learning classification offers a robust framework for disentangling the complex dynamics of extreme solar flares.
