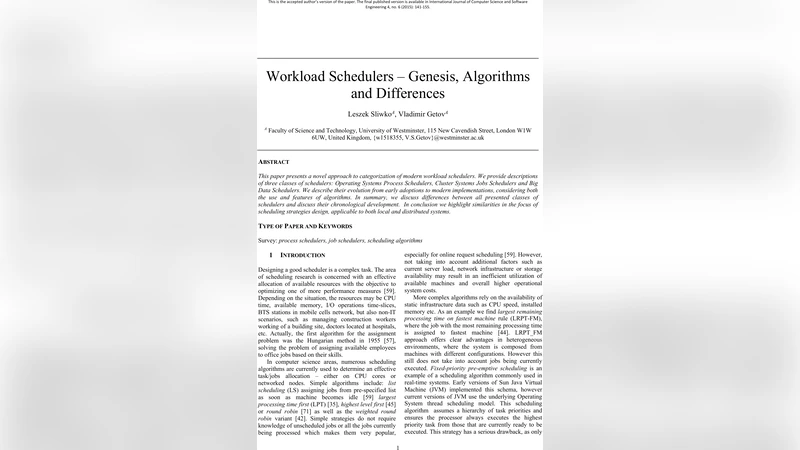

Workload Schedulers -- Genesis, Algorithms and Differences

This paper presents a novel approach to categorization of modern workload schedulers. We provide descriptions of three classes of schedulers: Operating Systems Process Schedulers, Cluster Systems Jobs Schedulers and Big Data Schedulers. We describe their evolution from early adoptions to modern implementations, considering both the use and features of algorithms. In summary, we discuss differences between all presented classes of schedulers and discuss their chronological development. In conclusion we highlight similarities in the focus of scheduling strategies design, applicable to both local and distributed systems.

💡 Research Summary

The paper provides a comprehensive taxonomy of modern workload schedulers, dividing them into three distinct classes: operating‑system (OS) process schedulers, cluster‑system job schedulers, and big‑data (or container‑orchestration) schedulers. It traces the historical evolution of each class, examines the core algorithms that have shaped their design, and highlights the similarities and differences that emerge when these systems are compared across local and distributed environments.

In the OS domain, the authors begin with early time‑sharing mechanisms such as round‑robin and static priority scheduling, then move to more sophisticated multi‑level feedback queues (MLFQ) that dynamically adjust priorities based on observed CPU bursts. The discussion proceeds to modern kernel implementations: Linux’s Completely Fair Scheduler (CFS) introduces a virtual runtime metric to guarantee proportional CPU share, while Windows 10 employs multiple priority queues (real‑time, foreground, background) with distinct dispatch rules. The paper emphasizes how contemporary OS schedulers balance three competing objectives—fairness, responsiveness, and power efficiency—through adaptive time‑slice tuning, NUMA‑aware placement, and low‑overhead context‑switch handling.

Cluster job schedulers are presented next, with a focus on batch‑oriented systems such as PBS, Slurm, and HTCondor. The authors explain how these systems map user‑submitted jobs to a pool of compute nodes using priority‑based matching, back‑filling, and fair‑share policies. Back‑filling, in particular, is described as a technique that predicts the earliest start time of high‑priority jobs and fills idle slots with smaller, lower‑priority tasks, thereby improving overall utilization without jeopardizing deadline guarantees. The paper also details Slurm’s plug‑in architecture, which allows administrators to inject custom scheduling policies, and discusses how partitioning and multi‑queue configurations enable simultaneous support for heterogeneous workloads (MPI, GPU, multithreaded).

The third class covers big‑data and container orchestration platforms, including Hadoop YARN, Apache Mesos, and Kubernetes. Here the resource model expands beyond CPU to encompass memory, disk, network bandwidth, and even GPU resources. YARN’s Capacity Scheduler and Fair Scheduler are compared, illustrating how capacity‑driven versus fairness‑driven allocation strategies affect multi‑tenant clusters. Mesos’s two‑stage offer/accept model is highlighted as a way to delegate fine‑grained scheduling decisions to framework‑level schedulers. Kubernetes is examined for its declarative pod specification, extensible scheduler framework, and the use of scheduler extenders to incorporate custom constraints such as data locality or cost‑aware placement. The authors also discuss Spark’s DAG Scheduler, which optimizes stage execution by analyzing data dependencies and striving for data‑local execution, and they note how dynamic resource reallocation during runtime further improves throughput and latency.

A comparative analysis follows, organized around three axes: (1) scheduling timing (real‑time vs. batch vs. hybrid), (2) abstraction level of resources (core/thread vs. node vs. pod/container), and (3) algorithmic complexity and implementation cost (simple queue vs. multi‑objective optimization vs. policy‑driven declarative systems). Despite these differences, the paper identifies common design goals—fairness, preemption, and high resource utilization—that recur across all classes. The authors argue that each goal is interpreted differently depending on the operational constraints of the environment, leading to a spectrum of solutions ranging from deterministic priority enforcement in OS kernels to probabilistic, policy‑based placement in cloud‑native orchestrators.

Finally, the paper looks ahead to emerging trends. The convergence of cloud, edge, and IoT workloads introduces new constraints such as network latency, data‑transfer cost, and security policies that traditional schedulers were not designed to handle. To address these challenges, the authors propose integrating reinforcement‑learning agents that can adapt scheduling decisions based on real‑time feedback, and they suggest coupling such agents with declarative policy engines like Open Policy Agent for fine‑grained governance. The rise of serverless and function‑as‑a‑service models further pushes the need for sub‑second scheduling granularity and automatic scaling. The authors conclude that while current research largely remains siloed within OS, cluster, or big‑data domains, a unified, cross‑layer scheduling framework is essential for future heterogeneous computing environments.
