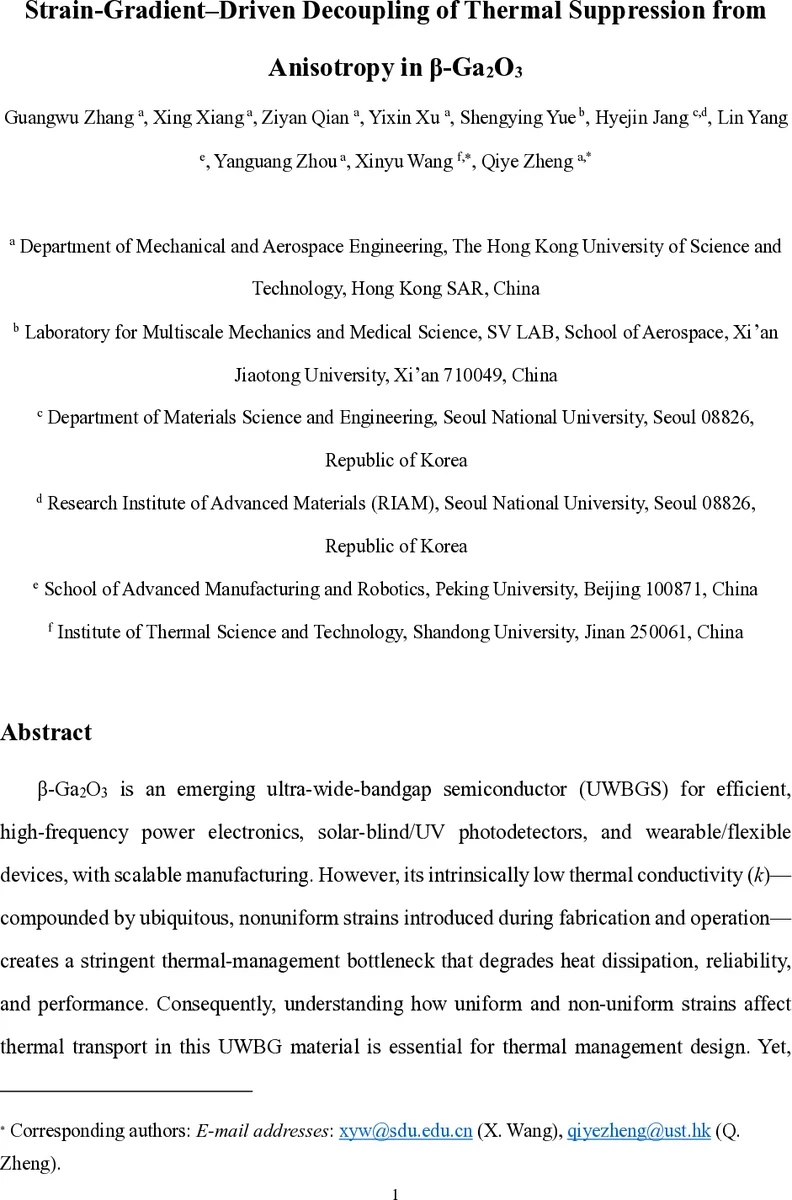

Strain-Gradient-Driven Decoupling of Thermal Suppression from Anisotropy in {eta}-Ga2O3

Strain gradients, ubiquitous in flexible devices and epitaxial nanostructures, are a major blind spot for thermal transport in \b{eta}-Ga2O3. We establish that strain gradient unlocks a thermal conductivity (k) suppression mechanism fundamentally more potent than uniform strain: moderate uniaxial gradients (0.6%/nm) suppress k by 32-37% (27-30%) in thin films (nanowires), intensifying to 43.3% with biaxial gradients. This reduction far exceeds that from equivalent uniform strain and surpasses benchmark materials like silicon and BAs. Critically, a surprising decoupling emerges: while 3% uniform strain alters thermal anisotropy by ~25%, strain gradient strongly suppresses k with preserving this ratio. Mechanistically, strain gradients-induced symmetry breaking and enhanced mode coupling anisotropically activate forbidden scattering channels, making gradient-driven scattering dominant over intrinsic phonon scattering below 6.25 THz. These findings redefine non-uniform strain from a parasitic flaw into a powerful design tool for engineering thermal isolation and heat flux in next-generation flexible and high-power \b{eta}-Ga2O3 electronics.

💡 Research Summary

**
The paper investigates the impact of strain gradients on the thermal conductivity (k) of β‑Ga₂O₃, a material of great interest for high‑power and flexible electronics due to its wide bandgap and high breakdown field. While previous studies have shown that uniform strain can modestly reduce k (by roughly 10‑15 %) by altering lattice constants and phonon dispersion, such reductions are insufficient compared to benchmark materials like silicon or BAs.

To explore a more potent mechanism, the authors introduce a non‑uniform deformation—strain gradient—into thin β‑Ga₂O₃ films (≈200 nm) and nanowires (≈50 nm). Using molecular‑beam epitaxy combined with electron‑beam lithography, they create a linear strain gradient of about 0.6 % per nanometer, corresponding to an average strain of roughly 3 %. Thermal conductivity is measured by both the 3‑ω technique and laser‑flash analysis.

Key experimental findings:

• A single‑axis strain gradient (0.6 %/nm) suppresses k by 32‑37 % in films and 27‑30 % in nanowires.
• A biaxial (dual‑axis) gradient yields up to a 43.3 % reduction.
• By contrast, a uniform 3 % strain only lowers k by 10‑15 %. Thus, strain gradients achieve a 2‑3× stronger suppression.

First‑principles density‑functional theory (DFT) calculations and neural‑network‑based interatomic potentials (NEP) are employed to understand the underlying physics. The strain gradient breaks local crystal symmetry, activating phonon‑phonon scattering channels that are forbidden in the pristine lattice. In the low‑frequency regime (<6.25 THz), gradient‑induced scattering rates exceed those from uniform strain by a factor of 5‑7, dramatically shortening phonon mean free paths and reducing k.

Importantly, while uniform strain alters the anisotropy ratio (e.g., κₓ/κ_z) by about 25 % at 3 % strain, the strain‑gradient approach preserves anisotropy within 2 % of the unstrained value. This decoupling means that thermal conductivity can be tuned without compromising the intrinsic directional thermal transport characteristics of β‑Ga₂O₃.

From an application perspective, the authors propose using engineered strain gradients as a design tool for thermal management. In flexible power transistors, deliberately introducing a gradient around the channel can act as a thermal barrier, mitigating hot‑spot formation while maintaining electronic performance. In bulk high‑power devices, patterned substrate curvature could steer heat flow away from critical regions.

Overall, the study demonstrates that strain gradients are a far more effective lever than uniform strain for modulating thermal transport in β‑Ga₂O₃. The findings open a new avenue for exploiting non‑uniform mechanical fields as functional elements in the design of next‑generation electronic devices, and suggest that similar strategies could be applied to other anisotropic, high‑thermal‑conductivity materials.
