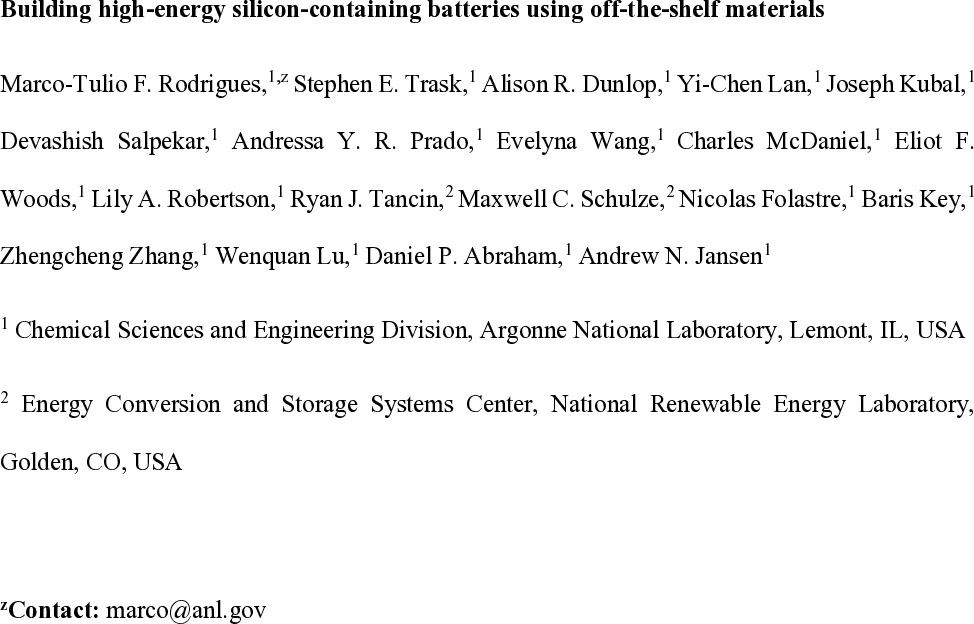

Building high-energy silicon-containing batteries using off-the-shelf materials

The technology of silicon anodes appears to be reaching maturity, with high-energy Si cells already in pilot-scale production. However, the performance of these systems can be difficult to replicate in academic settings, making it challenging to translate research findings into solutions that can be implemented by the battery industry. Part of this difficulty arises from the lack of access to engineered Si particles and anodes, as electrode formulations and the materials themselves have become valuable intellectual property for emerging companies. Here, we summarize the efforts by Argonne’s Cell Analysis, Modeling, and Prototyping (CAMP) Facility in developing Si-based prototypes made entirely from commercially available materials. We describe the many challenges we encountered when testing high-loading electrodes (> 5 mAh/cm2) and discuss strategies to mitigate them. With the right electrode and electrolyte design, we show that our pouch cells containing > 70 wt% SiOx can achieve 600-1,000 cycles at C/3 and meet projected energy targets of 700 Wh/L and 350 Wh/kg. These results provide a practical reference for research teams seeking to advance silicon-anode development using accessible materials.

💡 Research Summary

The paper presents a comprehensive effort by the Argonne National Laboratory Cell Analysis, Modeling, and Prototyping (CAMP) Facility to develop high‑energy lithium‑ion cells that rely exclusively on commercially available materials. The authors focus on silicon‑rich anodes, specifically silicon‑oxide (SiOx) particles, because pure silicon nanoparticles suffer from severe volume expansion and rapid capacity fade when used at high loading (>5 mAh cm⁻²). By selecting SiOx with a particle size around 5 µm and a high surface area (≈6 m² g⁻¹), the team mitigates expansion while accepting the trade‑off of lower initial coulombic efficiency due to irreversible lithium‑silicate formation.

Key material choices include lithium‑polyacrylic acid (LiPAA) as a water‑based binder (80 % lithium substitution), polyimide (PI) and polyvinylidene fluoride (PVDF) for solvent‑based slurries, and a baseline electrolyte of 1.2 M LiPF₆ in a 3:7 weight ratio of ethylene carbonate (EC) to ethyl‑methyl carbonate (EMC) with 3 wt % fluoro‑ethylene carbonate (FEC) as an SEI‑stabilizing additive. Additional co‑solvents (vinyl‑carbonate, dimethyl carbonate, di‑ethyl carbonate) and VC are employed in targeted formulations to further improve interfacial stability.

The electrode fabrication process is meticulously described: slurries are prepared at ~30 wt % solid loading for Si/SiOx, cast with a reverse‑coat system at 0.5 m min⁻¹, dried at 80‑85 °C (NMP) or 85‑105 °C (aqueous), and calendered to achieve ~33 % porosity and a final thickness of 150‑200 µm. To address mechanical stress from silicon expansion, the authors introduce an ultrafast laser patterning step. Using a 600 fs, 1030 nm laser, they engrave a hexagonal array of 37 µm spots with 1 mm spacing, applying two passes (28 µJ then 14 µJ) to fully cut through the electrode while minimizing damage to the copper current collector. This micro‑pattern creates controlled expansion channels that reduce cracking and maintain electronic connectivity over many cycles.

Because SiOx exhibits a low initial coulombic efficiency (≈60‑70 %), the team implements a prelithiation protocol. Anode sheets are first assembled in a half‑cell with a lithium metal counter electrode (or NMC811 for multilayer pouch cells), lithiated to ~0.5 V vs Li/Li⁺, then delithiated to ≥0.95 V. The prelithiated electrodes are rinsed in DMC, dried, and re‑integrated into full cells, thereby compensating for the irreversible lithium consumption of SiOx.

Full‑cell assembly uses ~150 µm aluminum laminate pouch packs, with electrode areas of 14.1 cm² (anode) / 14.9 cm² (cathode) for small cells and 46.3 cm² / 49.1 cm² for larger formats. Electrolyte volume is calculated as 1.5‑2 × the total pore volume of electrodes plus separator, ensuring sufficient wetting. Cells are sealed under vacuum, welded with ultrasonic tabs, and tested at 30 °C under a stack pressure of 26 psi. Cycling is performed at C/3 (≈0.33 C) between 0.05‑4.2 V (cathode) and 0.05‑0.8 V (anode).

The results are striking: pouch cells containing ≥70 wt % SiOx achieve 600‑1,000 cycles with >80 % capacity retention at C/3, delivering an average cell voltage of ~3.7 V. When translated to volumetric and gravimetric metrics, the cells approach 700 Wh L⁻¹ and 350 Wh kg⁻¹, respectively—values that meet the targets set by the U.S. Department of Energy for next‑generation electric‑vehicle batteries.

To contextualize these experimental outcomes, the authors employ the Argonne Battery Performance and Cost (BatPaC) techno‑economic model. The model incorporates measured electrode porosity, active material densities (2.3 g cm⁻³ for anode, 4.65 g cm⁻³ for NMC811 cathode), electrolyte density (1.2 g cm⁻³), and realistic cell dimensions (fixed thickness of 12 mm, variable length‑to‑width ratio). Simulations across a capacity range of 3.6‑184 Ah confirm that the experimentally demonstrated energy densities are achievable at scale, and they provide a cost framework for future commercialization.

Overall, the study demonstrates that high‑energy silicon‑rich batteries can be realized without proprietary materials, provided that careful attention is paid to binder chemistry, electrode architecture, laser‑induced micro‑patterning, and prelithiation strategies. The work offers a practical, reproducible “recipe” for academic labs and emerging companies seeking to bridge the gap between laboratory research and industrial production of silicon‑based lithium‑ion cells.
