Visualizing Electronic Structure of Twisted Bilayer MoTe2 in Devices

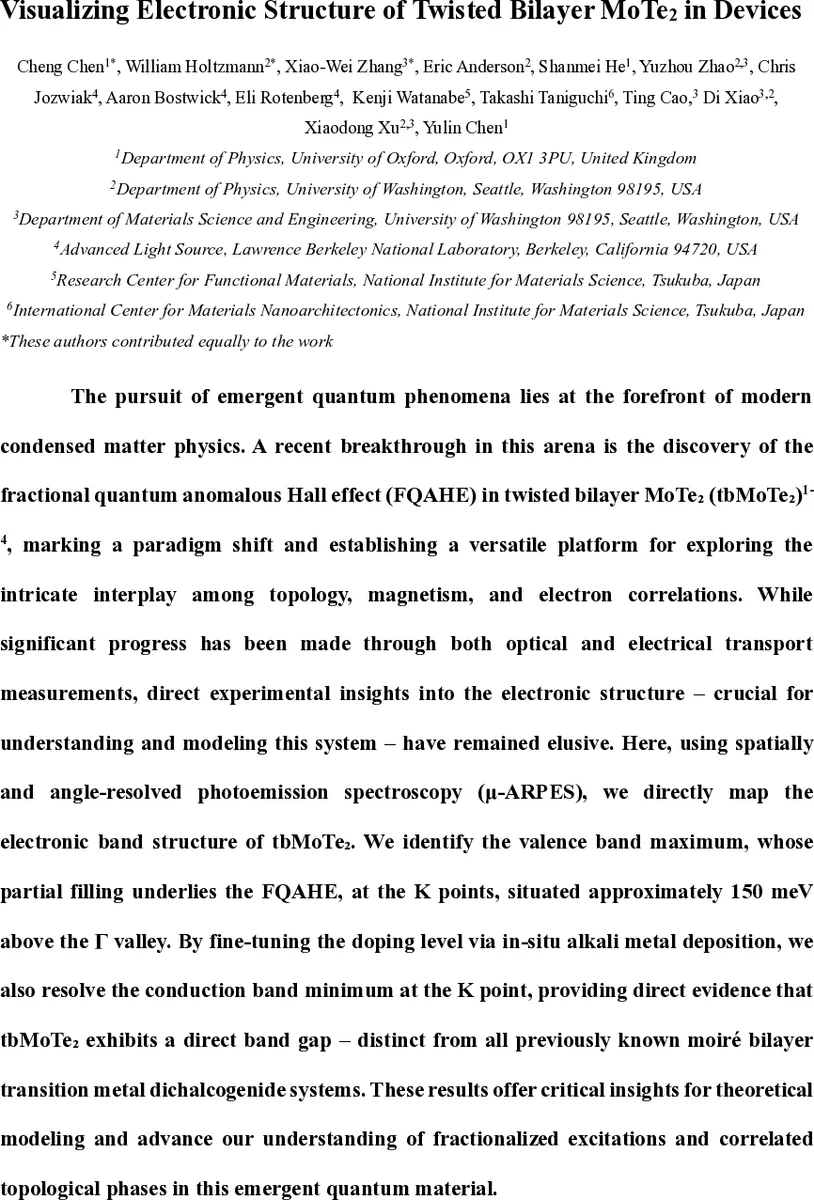

The pursuit of emergent quantum phenomena lies at the forefront of modern condensed matter physics. A recent breakthrough in this arena is the discovery of the fractional quantum anomalous Hall effect (FQAHE) in twisted bilayer MoTe2 (tbMoTe2), marking a paradigm shift and establishing a versatile platform for exploring the intricate interplay among topology, magnetism, and electron correlations. While significant progress has been made through both optical and electrical transport measurements, direct experimental insights into the electronic structure - crucial for understanding and modeling this system - have remained elusive. Here, using spatially and angle-resolved photoemission spectroscopy (μ-ARPES), we directly map the electronic band structure of tbMoTe2. We identify the valence band maximum, whose partial filling underlies the FQAHE, at the K points, situated approximately 150 meV above the Γ valley. By fine-tuning the doping level via in-situ alkali metal deposition, we also resolve the conduction band minimum at the K point, providing direct evidence that tbMoTe2 exhibits a direct band gap - distinct from all previously known moire bilayer transition metal dichalcogenide systems. These results offer critical insights for theoretical modeling and advance our understanding of fractionalized excitations and correlated topological phases in this emergent quantum material.

💡 Research Summary

The authors present a comprehensive study of the electronic structure of twisted bilayer MoTe₂ (tbMoTe₂) using spatially resolved micro‑angle‑resolved photoemission spectroscopy (μ‑ARPES). By encapsulating the air‑sensitive tbMoTe₂ device in a monolayer of hexagonal boron nitride (hBN) and grounding it through a partially overlapping graphene electrode, they achieve high‑quality ARPES spectra while preserving the intrinsic electronic properties. The device is fabricated entirely in an inert glovebox, with a 4° twist angle—the same angle at which the fractional quantum anomalous Hall effect (FQAHE) has been observed in transport experiments.

The μ‑ARPES measurements reveal that the valence‑band maximum (VBM) resides at the K point of the Brillouin zone, lying about 150 meV above the Γ‑valley states. Compared with monolayer MoTe₂, the Γ‑valley valence band in the twisted bilayer is strongly up‑shifted due to enhanced interlayer coupling of out‑of‑plane d_{z²} and p_z orbitals, whereas the K‑valley bands, dominated by in‑plane d_{xy} and d_{x²−y²} orbitals, remain largely unchanged. This orbital‑selective interlayer hybridization explains the distinctive band‑structure modification induced by the moiré pattern.

To probe the unoccupied conduction band, the authors perform in‑situ potassium deposition through the top hBN layer, effectively electron‑doping the sample and raising the Fermi level into the conduction band. The resulting spectra show a clear conduction‑band minimum (CBM) also at the K point, establishing tbMoTe₂ as a direct‑gap semiconductor with an experimental gap of ~1.1 eV—consistent with photoluminescence measurements. This direct gap at K is unprecedented among moiré transition‑metal‑dichalcogenide (TMD) bilayers, which typically exhibit indirect gaps with the CBM at the Q point.

First‑principles density‑functional theory (DFT) calculations reproduce many experimental features, such as the upward shift of the Γ‑valley valence band. However, in the relaxed, strain‑free geometry the calculations predict the CBM at Q, not K. The authors resolve this discrepancy by exploring the effect of biaxial strain: a modest 1 % tensile strain raises the Q‑valley CBM relative to K, aligning the theoretical CBM with the experimental observation. They argue that residual strain in the device—originating from thermal expansion, hBN encapsulation pressure, or slight twist‑angle variations—can naturally produce the required strain.

Importantly, the μ‑ARPES data do not reveal any pronounced moiré minibands or flat bands near the K‑valley VBM, suggesting that the moiré potential in tbMoTe₂ is relatively weak. Consequently, the fractional quantum anomalous Hall effect likely stems from the partial filling of the K‑valley VBM combined with strong electron‑electron interactions and non‑trivial topology, rather than from flat‑band physics alone.

Methodologically, the work demonstrates that monolayer hBN encapsulation permits sufficient photoelectron transmission (~30 % efficiency) for high‑resolution ARPES while protecting air‑sensitive 2D materials. Moreover, potassium dosing through hBN provides a versatile tool for Fermi‑level tuning when conventional electrostatic gating is impractical.

In summary, this study (i) directly maps the band structure of tbMoTe₂, confirming a K‑point VBM and CBM and a direct band gap of ~1.1 eV; (ii) elucidates the role of twist‑induced interlayer coupling and strain in shaping the electronic landscape; (iii) establishes μ‑ARPES combined with hBN encapsulation as a powerful platform for probing fragile 2D quantum materials; and (iv) supplies essential experimental parameters for theoretical modeling of the FQAHE and for future engineering of correlated topological phases in moiré‑engineered semiconductors.
