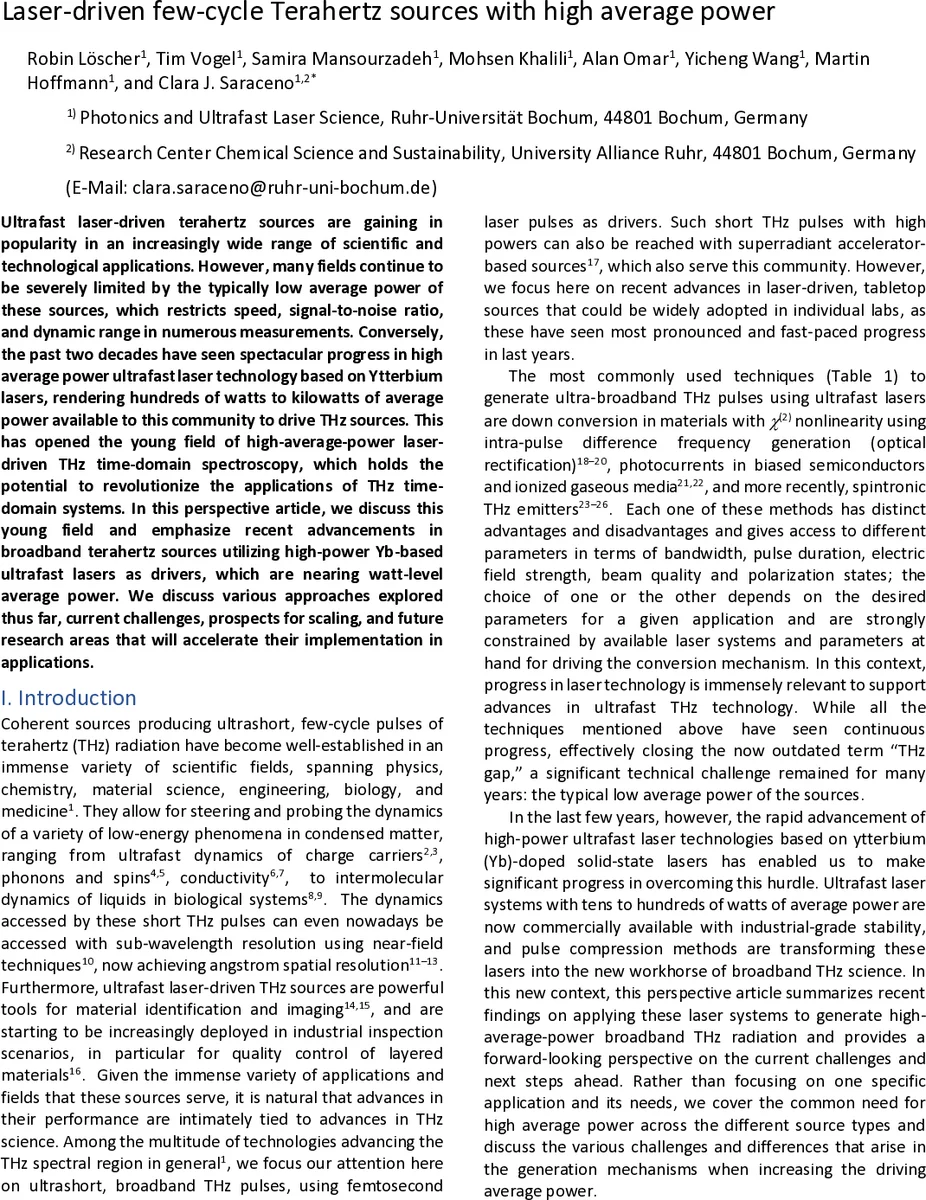

Laser-driven few-cycle Terahertz sources with high average power

Ultrafast laser-driven terahertz sources are gaining in popularity in an increasingly wide range of scientific and technological applications. However, many fields continue to be severely limited by the typically low average power of these sources, which restricts speed, signal-to-noise ratio, and dynamic range in numerous measurements. Conversely, the past two decades have seen spectacular progress in high average power ultrafast laser technology based on Ytterbium lasers, rendering hundreds of watts to kilowatts of average power available to this community to drive THz sources. This has opened the young field of high-average-power laserdriven THz time-domain spectroscopy, which holds the potential to revolutionize the applications of THz time-domain systems. In this perspective article, we discuss this young field and emphasize recent advancements in broadband terahertz sources utilizing high-power Yb-based ultrafast lasers as drivers, which are nearing watt-level average power. We discuss various approaches explored thus far, current challenges, prospects for scaling, and future research areas that will accelerate their implementation in applications.

💡 Research Summary

This perspective article reviews the emerging field of high‑average‑power laser‑driven terahertz (THz) sources, focusing on recent advances that bring broadband few‑cycle THz generation into the watt‑level regime. The authors begin by outlining the broad scientific impact of coherent few‑cycle THz pulses, which enable ultrafast probing of charge carriers, phonons, spin dynamics, and molecular motions across physics, chemistry, biology, and materials science. They emphasize that the principal bottleneck for many THz‑time‑domain spectroscopy (TDS) applications is the low average power of existing sources, which limits signal‑to‑noise ratio (SNR), dynamic range, and measurement speed.

Four principal THz generation mechanisms are surveyed: (i) optical rectification in nonlinear crystals (tilted‑pulse‑front and organic crystals), (ii) biased semiconductor or photoconductive emitters, (iii) spintronic emitters, and (iv) two‑color plasma generation. Table 1 compiles representative performance metrics for each method when driven by Ytterbium (Yb) ultrafast lasers, showing peak fields from a few kV cm⁻¹ up to >600 kV cm⁻¹, average THz powers ranging from a few milliwatts to tens of watts, and conversion efficiencies spanning 10⁻⁸–10⁻⁵. The tilted‑pulse‑front approach currently achieves the highest average powers (≈40 W) and therefore offers the most direct path toward Watt‑level THz emission.

The article then explains why average power matters for THz‑TDS. Coherent detection (electro‑optic sampling) retrieves both amplitude and phase of the THz electric field, and the SNR scales with the square root of the number of detected pulses. Raising the repetition rate therefore improves SNR, expands the Nyquist‑limited bandwidth, and accelerates data acquisition. High‑repetition‑rate operation also shifts the signal spectrum to higher laboratory frequencies, reducing 1/f electronic noise and enabling more sophisticated statistical post‑processing. However, scaling average power to tens of watts introduces challenges such as beam pointing jitter, pulse‑energy fluctuations, and thermal lensing, which can erode the expected SNR gains if not properly managed.

Yb‑doped gain media are identified as the key enabler for high average power. With quantum efficiencies >90 % and low up‑conversion losses, Yb lasers can be diode‑pumped directly, achieving optical‑to‑optical efficiencies >80 %. Various gain‑medium geometries—slab, fiber, thin‑disk—provide excellent heat extraction, allowing continuous‑wave powers in the kilowatt range and ultrafast average powers exceeding 10 kW in sub‑picosecond regimes. Nevertheless, the intrinsic gain bandwidth of Yb is relatively narrow, so sub‑100 fs pulse durations must be obtained via external pulse‑compression techniques. The authors discuss two main routes: self‑phase modulation (SPM) in bulk or gas‑filled fibers followed by dispersive compression, and optical‑parametric chirped‑pulse amplification (OPCPA) pumped by Yb lasers. While OPCPA can deliver very high peak powers, its overall conversion efficiency is modest (≈1 %).

A critical analysis of scaling strategies is presented. For each THz generation scheme, the authors identify the limiting factor when average power is increased: (1) optical rectification requires higher peak intensities to maintain conversion efficiency, demanding tighter focusing or higher‑energy compressed pulses; (2) semiconductor emitters are limited by carrier saturation and thermal loading; (3) spintronic emitters suffer from magnetic‑layer heating; (4) plasma generation benefits from higher intensities but is constrained by ionization‑induced beam distortion. The authors argue that achieving Watt‑level THz average power will likely involve a combination of (i) sub‑100 fs pulse compression at multi‑kilowatt average powers, (ii) development of new nonlinear crystals or 2‑D materials with larger χ^(2) and higher damage thresholds, (iii) advanced THz beam transport optics (low‑loss, large‑aperture parabolic mirrors, quasi‑optical waveguides), and (iv) robust, low‑noise detection schemes such as asynchronous optical sampling or balanced electro‑optic detection.

Finally, the paper outlines future research directions and application prospects. High‑average‑power THz sources could revolutionize real‑time chemical reaction monitoring, non‑destructive testing of multilayer composites, biomedical imaging of tissue hydration and cancer markers, and high‑throughput industrial quality control. To realize these applications, the community must address system integration challenges: compact, user‑friendly THz‑TDS instruments, safety standards for high‑power THz radiation, and scalable manufacturing of high‑damage‑threshold nonlinear media. In summary, the convergence of Yb‑based kilowatt‑class ultrafast lasers, efficient pulse‑compression, and optimized THz generation mechanisms positions the field to overcome the long‑standing “THz gap” and unlock a new era of high‑speed, high‑sensitivity THz spectroscopy and imaging.
