Visual relativistic mechanics

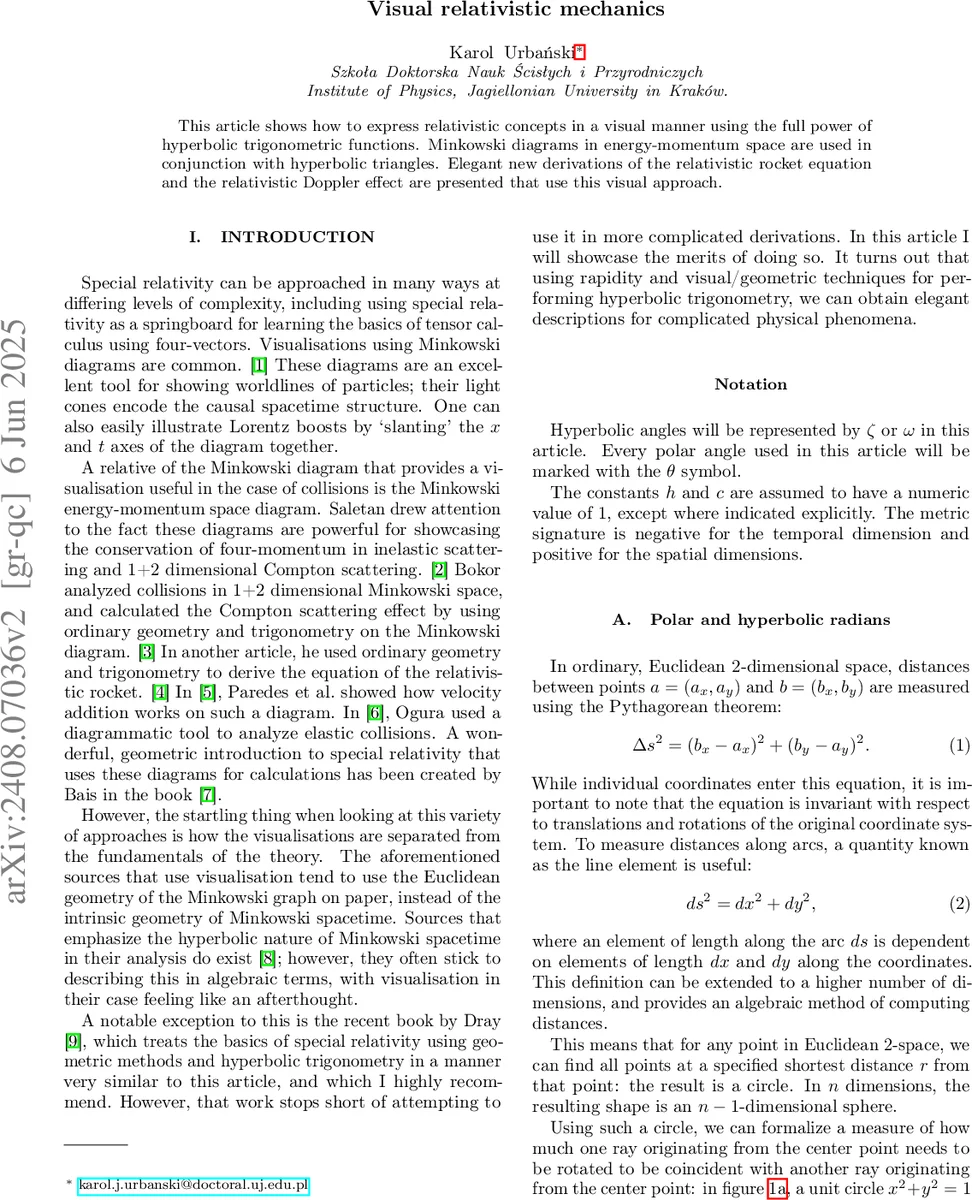

This article shows how to express relativistic concepts in a visual manner using the full power of hyperbolic trigonometric functions. Minkowski diagrams in energy-momentum space are used in conjunction with hyperbolic triangles. Elegant new derivations of the relativistic rocket equation and the relativistic Doppler effect are presented that use this visual approach.

💡 Research Summary

The paper “Visual Relativistic Mechanics” proposes a visual‑geometric framework for special relativity based on hyperbolic trigonometry. It begins by redefining angles in hyperbolic space in direct analogy to Euclidean angles: the length of an arc on the unit hyperbola x²–y²=1 divided by the radius (which is unity) defines a hyperbolic radian ζ. The standard hyperbolic functions sinh ζ and cosh ζ become the coordinates of a point on this hyperbola, and the familiar identities cosh²ζ–sinh²ζ=1, sinh(α+β)=sinhα coshβ+coshα sinhβ, etc., are listed as the mathematical toolbox.

Next, the author recasts Lorentz boosts as “hyperbolic rotations”. By substituting γ=cosh ζ, γβ=sinh ζ and β=tanh ζ, the boost matrix takes the same form as a rotation matrix but with hyperbolic functions. This makes the composition of boosts trivial: the rapidities simply add (ζ′=ζ₁+ζ₂), which reproduces the usual velocity‑addition law β′=(β₁+β₂)/(1+β₁β₂) when expressed as tanh(ζ₁+ζ₂). The paper argues that rapidity is therefore the natural angular measure of relativistic speed, unbounded in ℝ, with the speed of light approached only as ζ→±∞.

The central visual tool is a Minkowski diagram drawn in energy‑momentum space (E on the vertical axis, p on the horizontal axis). A particle’s four‑momentum (E, p) is represented as a vector from the origin to a point on the hyperbola E²–p²=m², which is the “mass hyperbola” of radius m. The vector, the E‑axis, and the p‑axis form a right hyperbolic triangle. In this triangle, the hyperbolic angle between the E‑axis and the four‑momentum is precisely the rapidity ζ of the particle in the chosen inertial frame, with E=m cosh ζ and p=m sinh ζ. Thus the invariant mass relation E²–p²=m² is nothing more than the hyperbolic Pythagorean theorem. The diagram also shows how a boosted frame is obtained by rotating the axes through an angle ζ; although the axes appear “closer together” graphically, they remain orthogonal in the Minkowski metric.

Using this geometric language, the author derives two classic relativistic results. First, the relativistic rocket equation is obtained by considering a sequence of infinitesimal boosts (fuel ejection) and tracking the change in rapidity versus the loss of rest mass. The hyperbolic similarity of successive right‑triangle configurations yields a simple exponential relation between the final velocity (or rapidity) and the mass ratio, reproducing the standard formula v = c tanh
