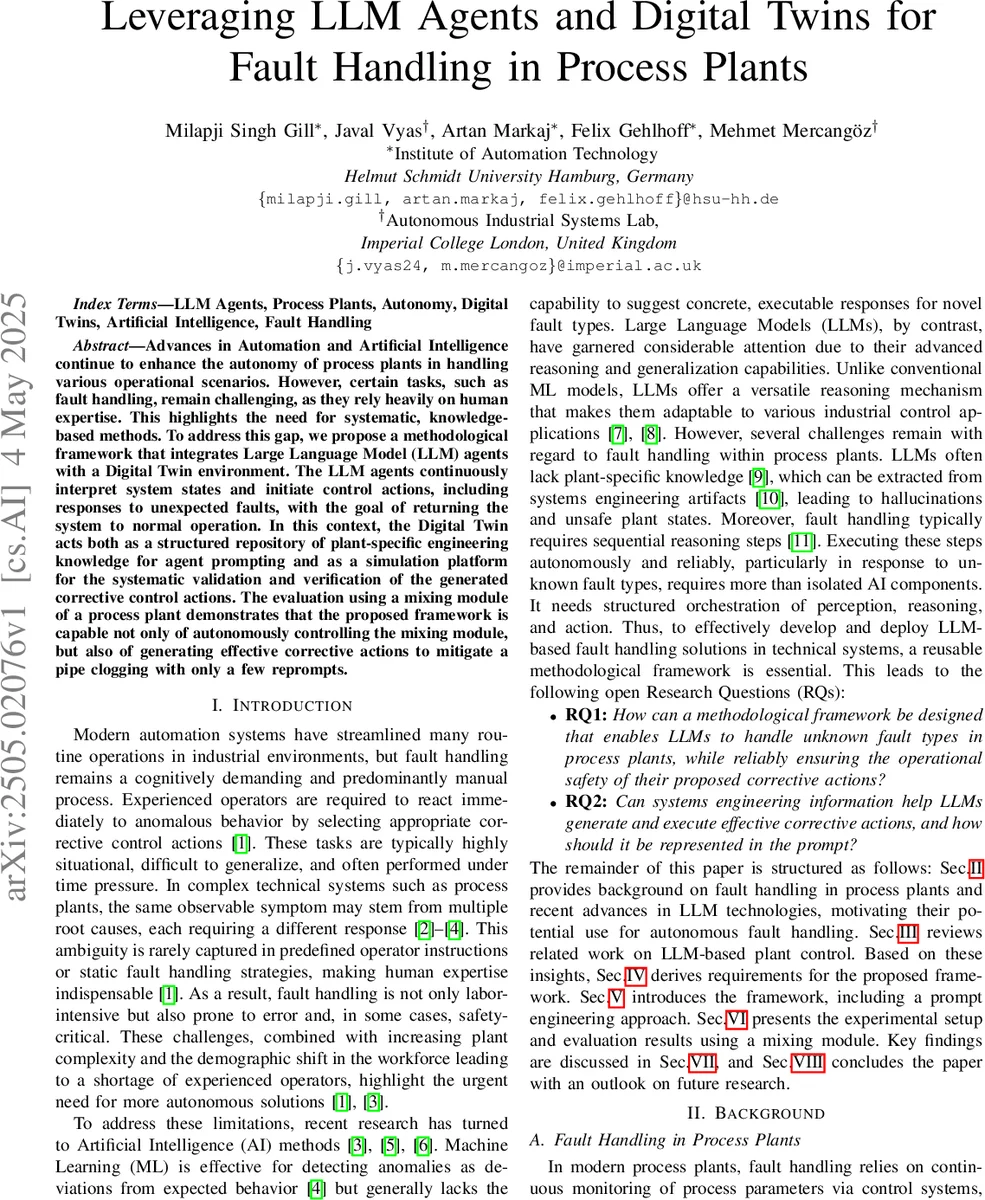

Leveraging LLM Agents and Digital Twins for Fault Handling in Process Plants

Advances in Automation and Artificial Intelligence continue to enhance the autonomy of process plants in handling various operational scenarios. However, certain tasks, such as fault handling, remain challenging, as they rely heavily on human expertise. This highlights the need for systematic, knowledge-based methods. To address this gap, we propose a methodological framework that integrates Large Language Model (LLM) agents with a Digital Twin environment. The LLM agents continuously interpret system states and initiate control actions, including responses to unexpected faults, with the goal of returning the system to normal operation. In this context, the Digital Twin acts both as a structured repository of plant-specific engineering knowledge for agent prompting and as a simulation platform for the systematic validation and verification of the generated corrective control actions. The evaluation using a mixing module of a process plant demonstrates that the proposed framework is capable not only of autonomously controlling the mixing module, but also of generating effective corrective actions to mitigate a pipe clogging with only a few reprompts.

💡 Research Summary

The paper presents a novel methodological framework that integrates Large Language Model (LLM) agents with a Digital Twin (DT) environment to achieve autonomous fault handling in industrial process plants. Recognizing that fault handling remains a cognitively demanding, largely manual task that relies on experienced operators, the authors formulate two research questions: (1) how to design a framework that enables LLMs to address unknown fault types while guaranteeing operational safety, and (2) how systems‑engineering artifacts can be represented in prompts to help LLMs generate effective corrective actions.

The background section outlines the three semantic layers of plant knowledge—structural, functional, and behavioral—and describes how digital twins consolidate these layers into a unified, queryable knowledge base. It also reviews the fundamentals of LLMs, their lack of physical grounding, and the importance of prompt engineering, Retrieval‑Augmented Generation (RAG), and chain‑of‑thought (CoT) techniques for safe deployment. Recent work on LLM‑driven control, PLC code generation, and modular production orchestration is surveyed, highlighting a gap: existing approaches focus on planning or static analysis rather than real‑time fault detection and mitigation.

From this analysis, five requirements (R1‑R5) are derived: (R1) distributed task allocation across monitoring, detection, control, and validation components; (R2) adaptive reasoning capable of handling novel fault scenarios; (R3) a closed‑loop verification mechanism with a bounded response time; (R4) integration of domain‑specific knowledge to compensate for LLMs’ generic nature; and (R5) transparent, traceable decision‑making.

The proposed framework follows a cyber‑physical system architecture with a physical plant and a virtual space hosting four LLM‑based agents: Monitoring Agent, Action Agent, Validation Agent, and Re‑prompting Agent. The Monitoring Agent continuously ingests sensor data, alarms, and diagnostic thresholds to detect anomalies. Upon fault detection, the Action Agent queries the Digital Twin for relevant engineering artifacts (P&ID, state machines, control logic, historical cases) and uses a CoT‑structured prompt to generate a set of candidate corrective actions. These candidates are submitted to the Digital Twin’s simulation service, which provides a risk‑free environment to evaluate their impact on process stability, safety constraints, energy consumption, and control effort.

The Validation Agent assesses simulation outcomes using a multi‑objective cost function and safety rule checks. If an action fails validation, the Re‑prompting Agent refines the original prompt by incorporating feedback (e.g., “action caused pressure overshoot”) and re‑invokes the Action Agent. This iterative loop continues until a validated, safe action is found or the predefined time budget expires, at which point a fallback safety mechanism or human intervention is triggered. Throughout the process, the CoT prompts capture the reasoning steps, ensuring that operators can audit and understand each decision.

Experimental validation is performed on a mixing module comprising pipes, pumps, a mixer, and tanks. A simulated pipe‑clog fault is introduced. The first generated action (open valve, increase pump speed) violates pressure limits in the simulation, prompting a re‑prompt. The refined suggestion (initiate pipe cleaning routine, reduce pressure set‑point) passes validation, restoring normal operation within three to four prompt iterations. This demonstrates that the framework can autonomously handle an unexpected fault with minimal human interaction.

Key contributions include: (1) leveraging the Digital Twin as both a structured knowledge repository and a real‑time validation sandbox; (2) designing a closed‑loop, multi‑agent architecture that supports iterative prompt refinement and safety verification; (3) employing chain‑of‑thought prompting to achieve transparent, traceable reasoning. Limitations are acknowledged: dependence on the fidelity of the Digital Twin model, scalability concerns for large‑scale plants (communication latency, simulation overhead), and the latency of LLM inference in real‑time contexts.

Future work proposes extending the framework to multi‑plant scenarios, optimizing RAG pipelines for faster knowledge retrieval, integrating formal verification methods for safety guarantees, and conducting field pilots to quantify operational benefits such as reduced downtime, lower staffing requirements, and improved safety margins. The authors conclude that the synergy between LLM agents and Digital Twins offers a promising pathway toward truly autonomous, knowledge‑driven fault handling in complex industrial environments.
