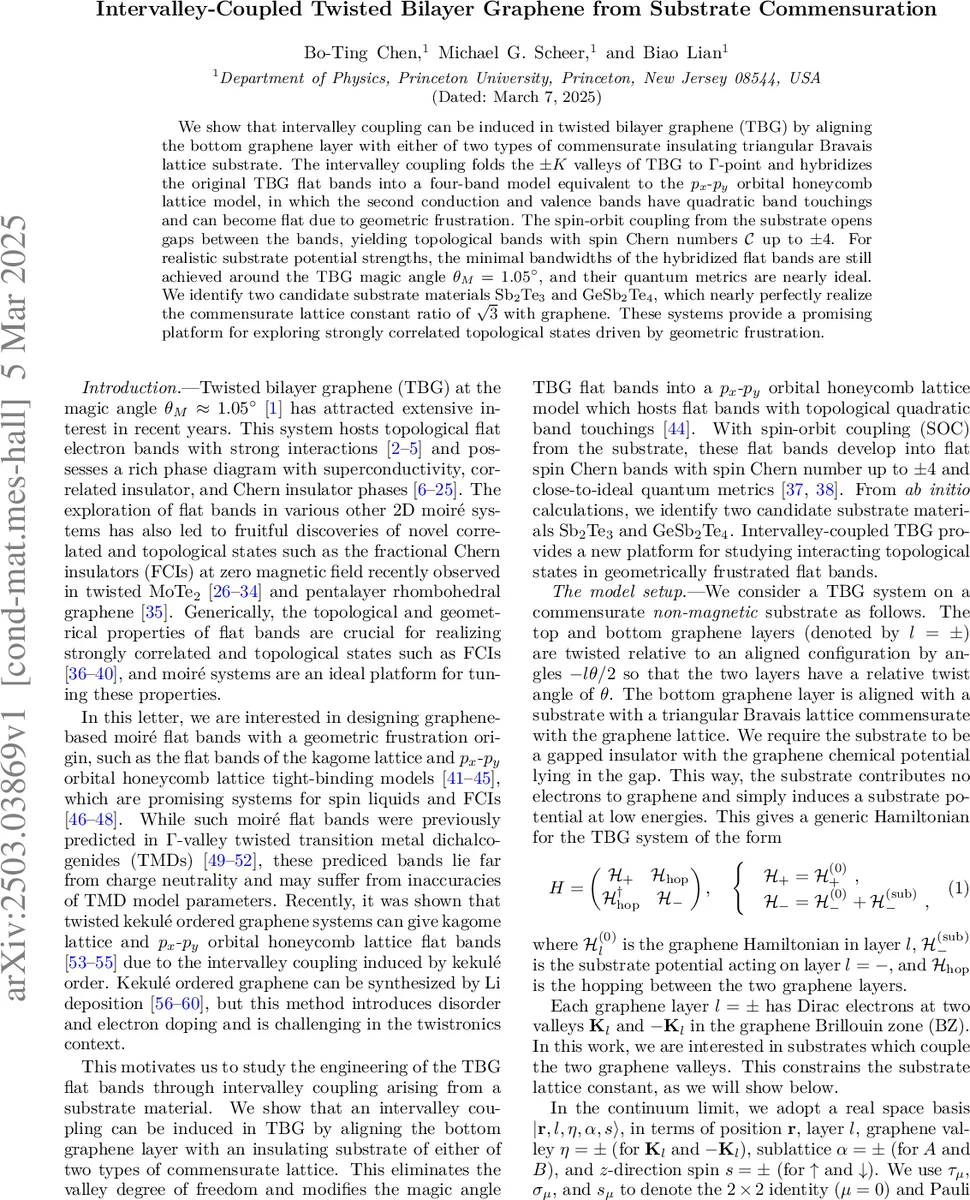

Intervalley-Coupled Twisted Bilayer Graphene from Substrate Commensuration

We show that intervalley coupling can be induced in twisted bilayer graphene (TBG) by aligning the bottom graphene layer with either of two types of commensurate insulating triangular Bravais lattice substrate. The intervalley coupling folds the $\pm K$ valleys of TBG to $Γ$-point and hybridizes the original TBG flat bands into a four-band model equivalent to the $p_x$-$p_y$ orbital honeycomb lattice model, in which the second conduction and valence bands have quadratic band touchings and can become flat due to geometric frustration. The spin-orbit coupling from the substrate opens gaps between the bands, yielding topological bands with spin Chern numbers $\mathcal{C}$ up to $\pm 4$. For realistic substrate potential strengths, the minimal bandwidths of the hybridized flat bands are still achieved around the TBG magic angle $θ_M=1.05^\circ$, and their quantum metrics are nearly ideal. We identify two candidate substrate materials Sb$_2$Te$_3$ and GeSb$_2$Te$_4$, which nearly perfectly realize the commensurate lattice constant ratio of $\sqrt{3}$ with graphene. These systems provide a promising platform for exploring strongly correlated topological states driven by geometric frustration.

💡 Research Summary

In this work the authors propose a novel route to engineer flat‑band physics in twisted bilayer graphene (TBG) by exploiting the commensuration between the graphene lattice and an insulating triangular Bravais‑lattice substrate. By aligning the bottom graphene layer with a substrate whose lattice constant is either √3 or 3 times larger than graphene’s (the two families they call “type Y” and “type X”), the two original valleys (±K) of the bottom layer are folded onto the Γ point of the moiré Brillouin zone. This folding introduces an interval‑valley coupling term mₓₓᴵ τₓσₓ that directly hybridizes the two valley‑derived flat bands of ordinary magic‑angle TBG. The resulting low‑energy spectrum consists of four spin‑degenerate bands that are mathematically equivalent to a pₓ–pᵧ two‑orbital honeycomb lattice model. In the limit where the two hopping amplitudes t₊ and t₋ become equal, the outermost bands (n = ±2) become exactly flat due to geometric frustration, reproducing the “ideal” flat‑band condition known from kagome and honeycomb orbital models.

The substrate, although non‑magnetic, can provide substantial spin‑orbit coupling (SOC). The authors model SOC as momentum‑independent, spin‑z‑conserving terms (m_{zz}ᶻ τ_zσ_z s_z, m_{yy}ᶻ τ_yσ_y s_z, and, for type Y, an additional m_{xy}ᶻ τ_xσ_y s_z). These SOC terms open gaps between the four bands and endow each band with a spin Chern number C = C↑ = −C↓. The outer bands (n = ±2) robustly acquire C = ±2, while the inner bands (n = ±1) can host Chern numbers ranging from 0 to ±4 depending on the precise values of the intervalley and SOC couplings. Thus the system can realize spin‑Chern insulating phases with |C| up to 4.

A detailed quantum‑geometric analysis is performed. The quantum metric g_{ij}(k) and Berry curvature Ω(k) are extracted from the Bloch states, and the authors evaluate the “ideal‑band” criteria tr g ≥ 2√det g ≥ |Ω|. For realistic substrate potentials (on the order of 10 meV) the bands near the magic angle θ ≈ 1.05° satisfy these inequalities to a high degree, as quantified by the integrated deviation T and the curvature uniformity ΔΩ. The minimal bandwidths of the flat bands are achieved at twist angles essentially identical to the original magic angle, confirming that the substrate does not shift the optimal angle but rather sharpens the flatness.

First‑principles calculations identify two promising substrates: Sb₂Te₃ (a‑s ≈ 4.26 Å) and GeSb₂Te₄ (a‑s ≈ 4.30 Å), both of which realize rₛ ≈ √3 with sub‑percent deviation. Both are wide‑gap insulators whose band edges lie well away from graphene’s Dirac point, ensuring that only a static potential and SOC are transferred to the graphene layers. By fitting the DFT band structures of monolayer graphene on each substrate, the authors extract realistic values for the intervalley term mₓₓᴵ and the SOC parameters (e.g., for Sb₂Te₃: mₓₓᴵ ≈ 7.7 meV, m_{zz}ᶻ ≈ 12 meV, m_{yy}ᶻ ≈ 9.4 meV, m_{xy}ᶻ ≈ 2.5 meV). Using these parameters in the continuum moiré model, they compute the full band structures at twist angles around 1.01°–1.05°. For Sb₂Te₃ the outermost band (n = −2) becomes extremely flat (bandwidth ≈ 0.2 meV) and carries spin Chern numbers {−2,+4,−4,+2}. The quantum metric of this band is close to the ideal limit, with T ≈ 0.03 and ΔΩ ≈ 0.02. Similar results are obtained for GeSb₂Te₄, confirming the robustness of the mechanism across different substrates.

Overall, the paper demonstrates that substrate‑induced intervalley coupling provides a clean, structural way to convert the conventional magic‑angle TBG flat bands into a pₓ–pᵧ honeycomb orbital model with built‑in geometric frustration and strong SOC‑driven topology. This approach avoids the need for external Kekulé patterns, chemical functionalization, or large strain, and it yields flat bands with high spin Chern numbers and nearly ideal quantum geometry—key ingredients for realizing fractional Chern insulators, spin‑liquid states, and other strongly correlated topological phases in graphene‑based moiré systems.
