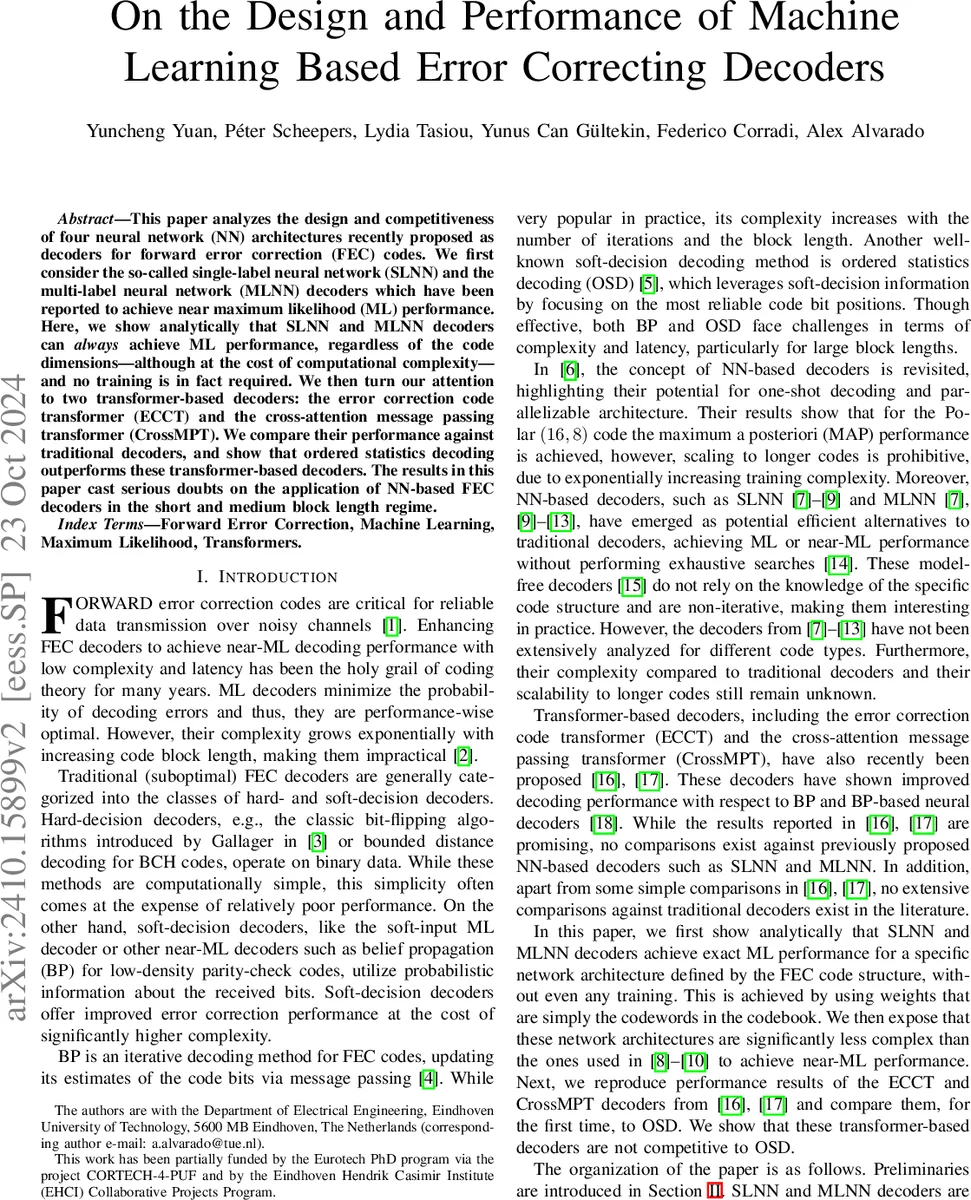

On the Design and Performance of Machine Learning Based Error Correcting Decoders

This paper analyzes the design and competitiveness of four neural network (NN) architectures recently proposed as decoders for forward error correction (FEC) codes. We first consider the so-called single-label neural network (SLNN) and the multi-label neural network (MLNN) decoders which have been reported to achieve near maximum likelihood (ML) performance. Here, we show analytically that SLNN and MLNN decoders can always achieve ML performance, regardless of the code dimensions – although at the cost of computational complexity – and no training is in fact required. We then turn our attention to two transformer-based decoders: the error correction code transformer (ECCT) and the cross-attention message passing transformer (CrossMPT). We compare their performance against traditional decoders, and show that ordered statistics decoding outperforms these transformer-based decoders. The results in this paper cast serious doubts on the application of NN-based FEC decoders in the short and medium block length regime.

💡 Research Summary

This paper provides a comprehensive evaluation of four recently proposed neural‑network (NN) based decoders for forward error correction (FEC) codes: the single‑label neural network (SLNN), the multi‑label neural network (MLNN), the error‑correction‑code transformer (ECCT), and the cross‑attention message‑passing transformer (CrossMPT). The authors first revisit the classical maximum‑likelihood (ML) decoding rule for binary‑input additive white Gaussian noise (BI‑AWGN) channels and express it as a simple inner‑product maximization between the received vector r and each codeword c.

For the SLNN, the conventional architecture consists of an input layer of size n, a hidden layer, and an output layer with 2^k neurons followed by a softmax. The authors prove (Theorem 1) that the hidden layer is unnecessary: a two‑layer network with n inputs directly connected to 2^k outputs can realize exact ML decoding if the weight matrix W^(1) is constructed by placing every codeword as a column. In this configuration the output vector rW^(1) contains the ML metric for each codeword, and the argmax operation yields the ML estimate. Consequently, no training is required; the network’s weights are simply the codebook itself. This construction dramatically reduces the number of edges (e.g., from 161 to 56 for the (7,4) Hamming code) and eliminates the need for costly back‑propagation.

The MLNN is traditionally built with an input layer of size n, several hidden layers, and k sigmoid‑activated output neurons that estimate bit‑wise posterior probabilities. Prior work showed that a 50‑50‑4 architecture (two hidden layers of 50 neurons each) can achieve near‑ML performance on the (7,4) Hamming code, but at the expense of thousands of trainable parameters and extensive training data. The authors introduce (Theorem 2) a compact three‑layer design: an input layer, a hidden layer of size 2^k with a scaled softmax (scale α = 2/σ²), and an output layer of size k. The first weight matrix W^(1) again contains all codewords as columns, while the second matrix W^(2) contains all possible k-bit information vectors as rows, aligned so that each hidden neuron corresponds to a specific codeword. With the appropriate scaling, the hidden activations compute the exact log‑likelihoods, and the final linear mapping recovers the original information bits. This architecture also requires no training and uses far fewer edges than the large hidden‑layer designs previously reported.

Having established that both SLNN and MLNN can achieve exact ML decoding without learning, the paper then turns to transformer‑based decoders. ECCT and CrossMPT employ self‑attention and cross‑attention mechanisms to process the noisy received vector as a sequence, aiming to capture complex dependencies that traditional decoders might miss. The authors re‑implement the publicly available models, train them under the same conditions as the original papers, and benchmark them against ordered statistics decoding (OSD), a well‑known soft‑decision algorithm that is particularly effective for short to medium block lengths.

Experimental results on several short linear block codes (including the (7,4) Hamming code and a (15,11) BCH code) show that both ECCT and CrossMPT consistently underperform OSD in terms of frame error rate (FER) and bit error rate (BER) across the entire SNR range examined. The performance gap widens for the smallest block lengths, indicating that the transformer’s capacity to model long‑range dependencies does not translate into a decoding advantage when the code length is limited. Moreover, the transformer models incur substantially higher computational complexity and memory usage compared with the simple matrix‑multiplication implementation of SLNN/MLNN or the OSD algorithm.

The paper concludes with several key takeaways:

1. Exact ML decoding without training is possible for any linear block code by constructing a two‑layer SLNN or a three‑layer MLNN whose weights are directly derived from the codebook and the set of information vectors. This challenges the prevailing narrative that NN‑based decoders must be trained on massive datasets to approach ML performance.

2. Transformer‑based decoders are not competitive with OSD in the short‑to‑medium block length regime. Their superior expressive power does not compensate for the increased complexity and the lack of performance gains in this domain.

3. Complexity‑performance trade‑offs remain critical. While NN‑based decoders can be made mathematically optimal, the practical cost of storing and multiplying large weight matrices (especially for codes with large k) may outweigh the benefits, particularly when OSD already offers near‑optimal performance with manageable complexity.

Overall, the work provides a rigorous theoretical foundation for NN‑based FEC decoding, clarifies the conditions under which such decoders are advantageous, and offers a realistic benchmark against established algorithms. It serves as a valuable reference for researchers aiming to develop efficient, low‑latency decoders for next‑generation communication systems.
