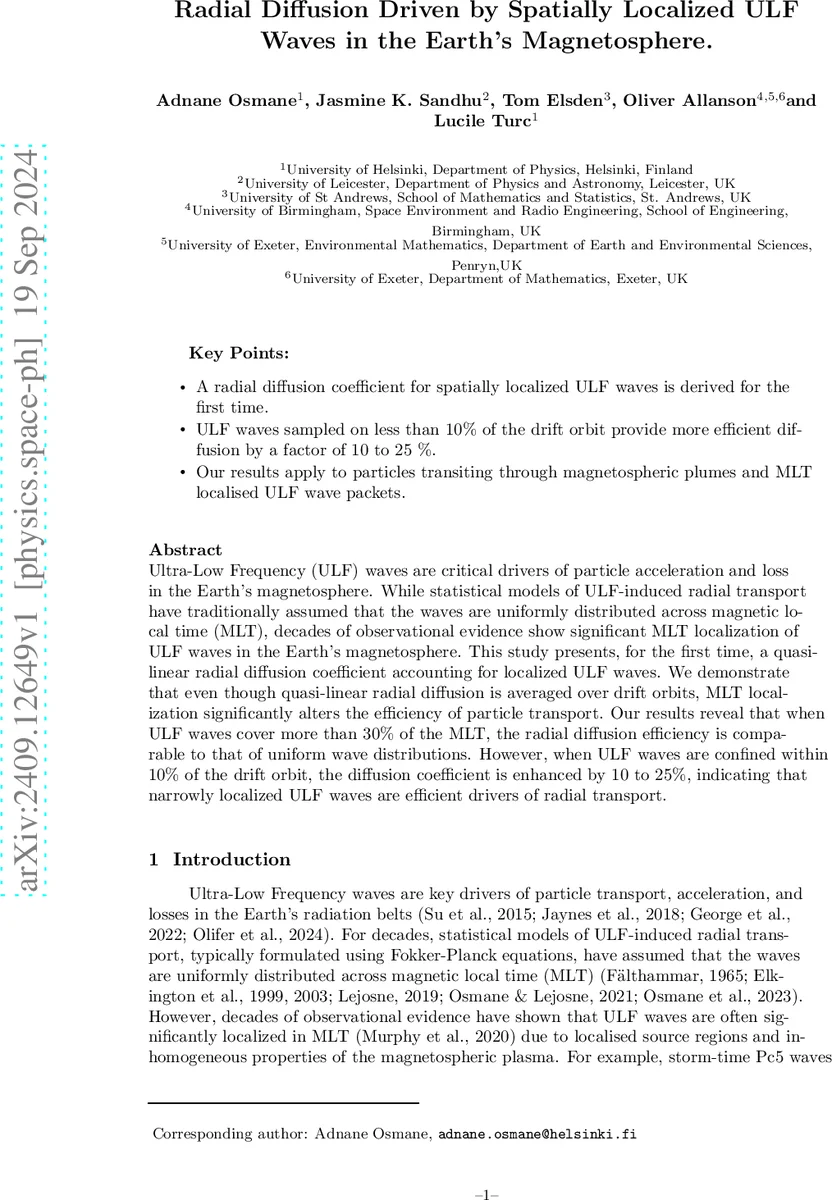

Radial Diffusion Driven by Spatially Localized ULF Waves in the Earth's Magnetosphere

Ultra-Low Frequency (ULF) waves are critical drivers of particle acceleration and loss in the Earth’s magnetosphere. While statistical models of ULF-induced radial transport have traditionally assumed that the waves are uniformly distributed across magnetic local time (MLT), decades of observational evidence show significant MLT localization of ULF waves in the Earth’s magnetosphere. This study presents, for the first time, a quasi-linear radial diffusion coefficient accounting for localized ULF waves. We demonstrate that even though quasi-linear radial diffusion is averaged over drift orbits, MLT localization significantly alters the efficiency of particle transport. Our results reveal that when ULF waves cover more than 30% of the MLT, the radial diffusion efficiency is comparable to that of uniform wave distributions. However, when ULF waves are confined within 10% of the drift orbit, the diffusion coefficient is enhanced by 10 to 25%, indicating that narrowly localized ULF waves are efficient drivers of radial transport.

💡 Research Summary

The paper addresses a long‑standing discrepancy between observational evidence that ultra‑low‑frequency (ULF) waves in Earth’s magnetosphere are often confined to limited magnetic local time (MLT) sectors and the traditional quasi‑linear radial diffusion models that assume a uniform MLT distribution of these waves. By deriving, for the first time, a quasi‑linear radial diffusion coefficient that explicitly incorporates MLT‑localization, the authors provide a theoretical framework that bridges this gap.

The authors begin by describing the background magnetic field as a simple dipole and introduce a poloidal electric field representing the ULF wave. The azimuthal dependence of the wave is modeled with a von Mises distribution f(ϕ; κ), where ϕ denotes magnetic local time and κ controls the degree of localization: κ = 0 corresponds to a uniform distribution, while κ ≫ 1 yields a narrow, Gaussian‑like concentration. This functional form allows the wave power to be confined to any chosen fraction of the MLT sector. The electric field also follows a 1/r radial dependence, consistent with the requirement ∇×E = 0 for an electrostatic field.

Guiding‑center drift velocities are then computed, consisting of the μ∇B drift (azimuthal) and the E×B drift (radial). The drift velocity is expressed in terms of the Fourier coefficients c_m of the electric field, which inherit the κ‑dependent localization through the von Mises factor. Inserting these drifts into the kinetic equation for the guiding‑center distribution function g(r, ϕ, t) and applying Liouville’s theorem yields a conservation form that separates the fast azimuthal variations from the slow radial evolution.

The distribution function is split into a slowly varying, azimuthally averaged part g₀(r, t) and a fast fluctuating part δg(r, ϕ, t). Linearizing the equation for δg and assuming the wave amplitudes behave as stationary white noise (⟨c_m(t)c*_m(t′)⟩≈δ(t‑t′)), the authors solve for δg analytically. The resulting expression for the time evolution of g₀ contains a correlator of the electric‑field coefficients. By invoking the white‑noise approximation and neglecting cross‑mode (m ≠ m′) correlations, they obtain a lower‑bound diffusion coefficient:

 D_LL(κ) = (1/B_E²) ∑_m |c_m|² F(m, κ)

where F(m, κ) encapsulates the effect of the von Mises localization. The key result is the functional dependence of D_LL on κ. When κ is small (waves spread over the entire MLT sector), D_LL reduces to the classic uniform‑wave value. As κ increases, the wave power becomes confined to a smaller MLT fraction, and the averaged electric‑field variance over a drift orbit rises, leading to an enhanced diffusion coefficient.

Quantitatively, the authors find that if the ULF wave occupies more than ~30 % of the MLT, the diffusion efficiency is comparable to the uniform‑wave case. When the wave is confined to less than ~10 % of the drift orbit, D_LL is amplified by roughly 10 %–25 %. This enhancement arises because particles repeatedly intersect the localized wave region during each drift, experiencing a higher effective electric‑field amplitude despite the overall reduced spatial coverage.

Two illustrative scenarios are presented (Figure 1): (1) radial localization with uniform MLT, where particles move in and out of a radially confined wave region; and (2) MLT localization with uniform radial extent, where all trapped particles encounter the wave only within specific MLT sectors. The authors argue that scenario 2 is more common in reality, occurring in magnetospheric plumes, Kelvin‑Helmholtz‑driven wave packets at the magnetopause, or substorm‑generated wave packets, and therefore must be incorporated into diffusion models.

The paper acknowledges several limitations: the analysis is confined to equatorial (2‑D) motion, assumes an electrostatic wave field, treats the wave spectrum as a single azimuthal mode with white‑noise statistics, and neglects cross‑mode correlations that could further increase diffusion. Future work is suggested to extend the model to full 3‑D drift trajectories, incorporate realistic wave spectra derived from satellite observations, and explore non‑electrostatic wave modes.

In conclusion, this study provides the first quasi‑linear radial diffusion coefficient that accounts for MLT‑localized ULF waves, demonstrating that narrow wave packets can be more efficient drivers of radial transport than previously thought. The findings have direct implications for radiation‑belt modeling, space‑weather forecasting, and the design of satellite mitigation strategies, where accurate representation of wave‑particle interactions is essential.
