Physical Insights into Electromagnetic Efficiency of Wireless Implantable Bioelectronics

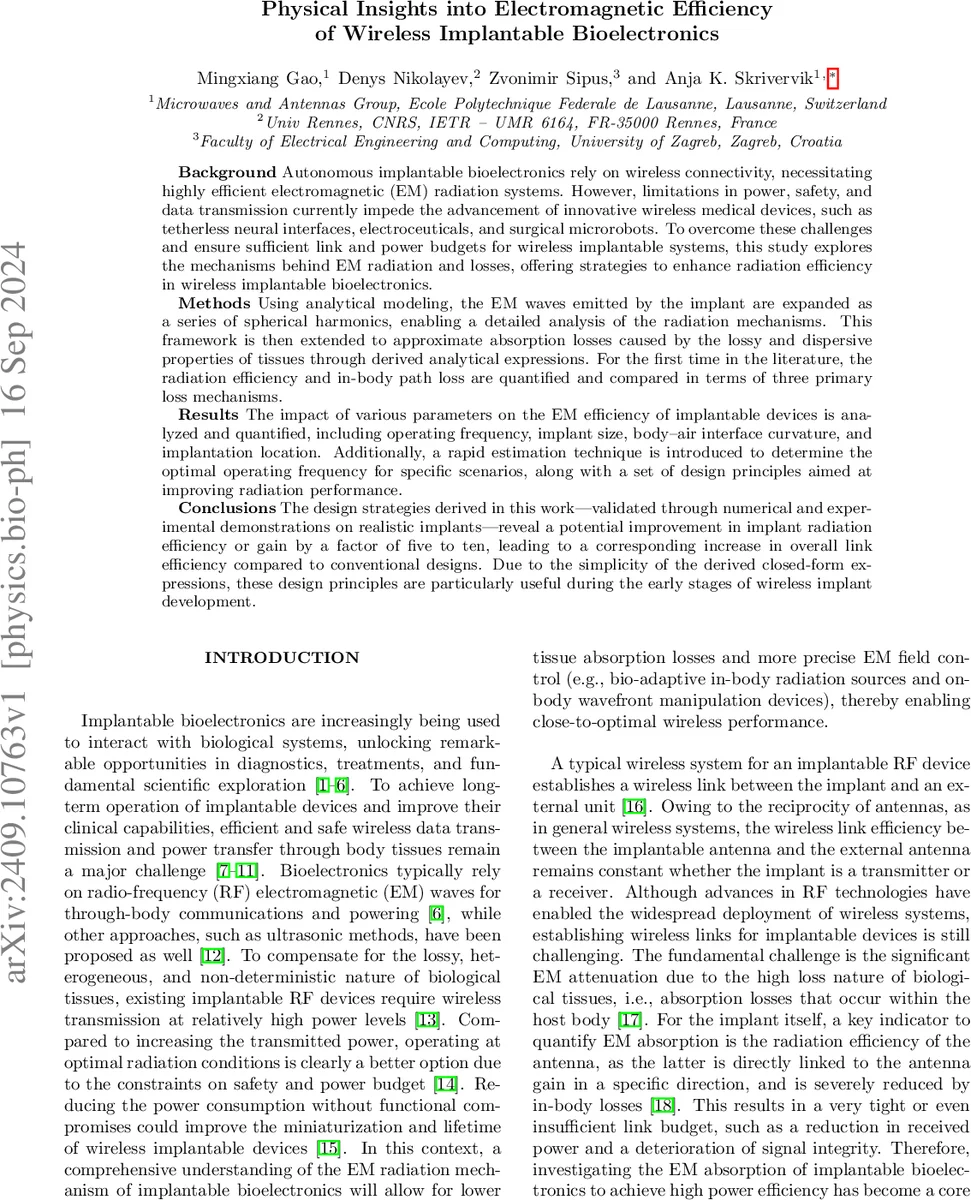

Autonomous implantable bioelectronics rely on wireless connectivity, necessitating highly efficient electromagnetic (EM) radiation systems. However, limitations in power, safety, and data transmission currently impede the advancement of innovative wireless medical devices, such as tetherless neural interfaces, electroceuticals, and surgical microrobots. To overcome these challenges and ensure sufficient link and power budgets for wireless implantable systems, this study explores the mechanisms behind EM radiation and losses, offering strategies to enhance radiation efficiency in wireless implantable bioelectronics. Using analytical modeling, the EM waves emitted by the implant are expanded as a series of spherical harmonics, enabling a detailed analysis of the radiation mechanisms. This framework is then extended to approximate absorption losses caused by the lossy and dispersive properties of tissues through derived analytical expressions. The radiation efficiency and in-body path loss are quantified and compared in terms of three primary loss mechanisms. The impact of various parameters on the EM efficiency of implantable devices is analyzed and quantified, including operating frequency, implant size, body-air interface curvature, and implantation location. Additionally, a rapid estimation technique is introduced to determine the optimal operating frequency for specific scenarios, along with a set of design principles aimed at improving radiation performance. The design strategies derived in this work - validated through numerical and experimental demonstrations on realistic implants - reveal a potential improvement in implant radiation efficiency or gain by a factor of five to ten, leading to a corresponding increase in overall link efficiency compared to conventional designs.

💡 Research Summary

This paper addresses the pressing need for highly efficient electromagnetic (EM) radiation in autonomous implantable bio‑electronics, whose wireless operation is limited by power constraints, safety regulations, and severe tissue attenuation. The authors develop an analytical framework that models the implant as an elementary electric or magnetic dipole enclosed in a loss‑less spherical capsule, embedded within a stratified spherical body phantom representing muscle, fat, and skin layers. By expanding the EM fields in vector spherical harmonics (the spherical wave expansion, SWE), they obtain closed‑form expressions for the total radiation efficiency η_total as the product of three distinct loss mechanisms: near‑field coupling loss η_near‑field, propagation (absorption) loss η_propagation, and reflection loss at the body‑air interface η_reflections.

The near‑field loss quantifies the non‑radiative energy exchange between the dipole and the surrounding lossy medium and depends on the complex permittivity ε_body(ω) and the capsule radius r_impl. Propagation loss follows an exponential attenuation exp
