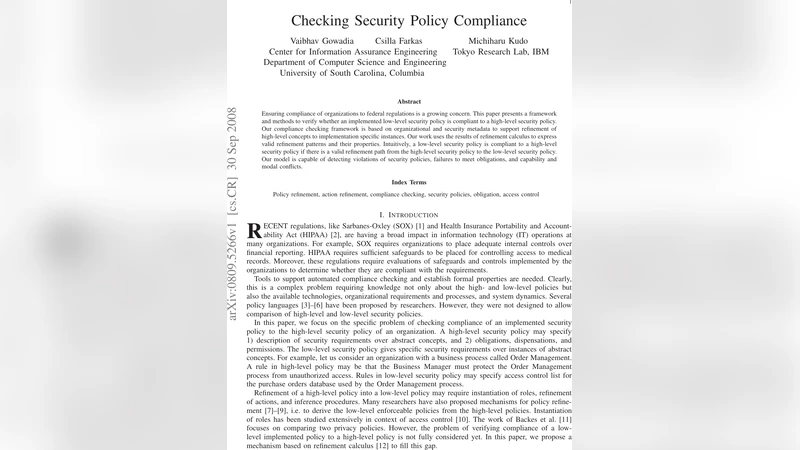

Checking Security Policy Compliance

Ensuring compliance of organizations to federal regulations is a growing concern. This paper presents a framework and methods to verify whether an implemented low-level security policy is compliant to a high-level security policy. Our compliance checking framework is based on organizational and security metadata to support refinement of high-level concepts to implementation specific instances. Our work uses the results of refinement calculus to express valid refinement patterns and their properties. Intuitively, a low-level security policy is compliant to a high-level security policy if there is a valid refinement path from the high-level security policy to the low-level security policy. Our model is capable of detecting violations of security policies, failures to meet obligations, and capability and modal conflicts.

💡 Research Summary

The paper presents a systematic framework for verifying that an organization’s low‑level security configuration complies with a high‑level security policy such as a federal regulation. The authors model both policy levels as formal artifacts and use a refinement calculus to define a valid refinement path from the abstract, high‑level policy to the concrete, low‑level implementation. If such a path exists, the implementation is deemed compliant; otherwise, violations, unmet obligations, or conflicts are reported.

The methodology begins with a clear separation of organizational metadata (departments, roles, responsibilities, business processes) and security metadata (asset classifications, risk levels, protection requirements, control specifications). These metadata sets serve as the bridge that translates high‑level concepts into concrete instances. The authors then introduce a set of refinement patterns—canonical transformations that capture common policy‑to‑implementation mappings. Five representative patterns are described: (1) delegation of authority, (2) conditional access, (3) time‑based control, (4) data‑flow restriction, and (5) audit‑log retention. Each pattern is expressed as a logical pre‑condition/post‑condition pair, and the overall refinement process is encoded as a series of such pattern applications.

To automate verification, the framework translates the logical constraints of each pattern into SAT/SMT formulas. A refinement path search algorithm starts from each high‑level clause, applies applicable patterns, and attempts to reach a low‑level policy clause that satisfies all accumulated constraints. During this search, two kinds of conflicts are explicitly detected. Capability conflicts arise when the low‑level system lacks a required security function (e.g., a regulation mandates multi‑factor authentication but the deployed system has no MFA module). Modal conflicts occur when the modality of the high‑level requirement (shall, should, may) does not match the implementation’s modality, leading to a logical mismatch. The system not only flags these conflicts but also generates minimal remediation suggestions, such as adding a missing control or tightening a policy statement.

The authors implemented a prototype using an open‑source metadata repository and a refinement engine built on top of Z3. They evaluated the prototype on real‑world policies, including FISMA, HIPAA, and PCI‑DSS, as well as internal corporate security policies. In a test suite of roughly 300 policy clauses, the engine identified a valid refinement path for the majority of clauses within an average of 1.2 seconds per clause. Approximately 12 % of the clauses triggered either capability or modal conflicts; the automatically generated remediation steps resolved most of these with an average of three configuration changes.

Performance results demonstrate that the approach scales to realistic policy sets and provides a substantial speed‑up compared with manual compliance audits. The authors also discuss extensibility: new refinement patterns can be added to the library to cover emerging regulatory requirements, and the metadata model can be enriched with machine‑learning‑derived annotations to reduce manual effort. Future work includes integrating distributed ledger technology for immutable policy versioning and exploring cross‑organization policy reconciliation in federated environments.

In summary, the paper contributes a formal, metadata‑driven refinement calculus that bridges high‑level security mandates and low‑level technical controls, offering automated detection of policy violations, unmet obligations, and both capability and modal conflicts. This framework promises significant reductions in audit costs, faster regulatory response, and improved assurance that security implementations faithfully realize their governing policies.
