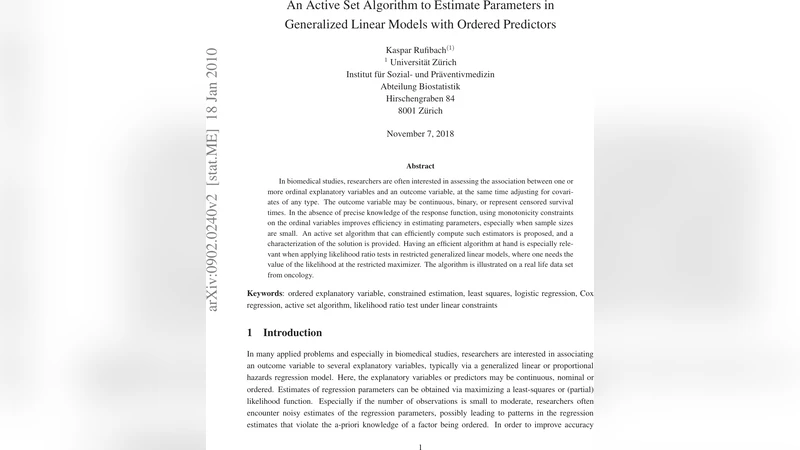

An Active Set Algorithm to Estimate Parameters in Generalized Linear Models with Ordered Predictors

In biomedical studies, researchers are often interested in assessing the association between one or more ordinal explanatory variables and an outcome variable, at the same time adjusting for covariates of any type. The outcome variable may be continuous, binary, or represent censored survival times. In the absence of precise knowledge of the response function, using monotonicity constraints on the ordinal variables improves efficiency in estimating parameters, especially when sample sizes are small. An active set algorithm that can efficiently compute such estimators is proposed, and a characterization of the solution is provided. Having an efficient algorithm at hand is especially relevant when applying likelihood ratio tests in restricted generalized linear models, where one needs the value of the likelihood at the restricted maximizer. The algorithm is illustrated on a real life data set from oncology.

💡 Research Summary

The paper addresses a common problem in biomedical research: how to model one or more ordinal explanatory variables together with covariates of any type when the outcome may be continuous, binary, or censored survival time. Standard generalized linear models (GLMs) treat each level of an ordinal predictor as an unrestricted categorical factor, which inflates the number of parameters and can lead to inefficient or unstable estimates, especially in small‑sample settings. The authors propose to impose monotonicity constraints (θ₁ ≤ θ₂ ≤ … ≤ θ_K) on the regression coefficients associated with the ordered levels, thereby exploiting the known ordering information to improve statistical efficiency.

The central methodological contribution is an active‑set algorithm that solves the constrained maximum‑likelihood problem for a wide class of GLMs, including linear regression, logistic regression, and Cox proportional‑hazards models. The constrained optimization can be written as

 max_{β,θ} ℓ(β,θ) subject to Dθ ≥ 0,

where D is the (K‑1) × K first‑difference matrix. The algorithm starts from the unrestricted GLM solution, checks the Karush‑Kuhn‑Tucker (KKT) conditions, and iteratively activates any violated constraints. For a given active set A, the algorithm solves a reduced problem using Newton–Raphson or iteratively re‑weighted least squares (IRLS) while updating the associated Lagrange multipliers. If a multiplier becomes negative, the corresponding constraint is de‑activated. This cycle repeats until the active set stabilizes, at which point the KKT conditions are satisfied and the solution is globally optimal. The authors provide a rigorous proof of convergence and a characterization of the solution’s structure.

From a computational standpoint, the active‑set method scales linearly with the number of predictors and the number of active constraints, O(p·|A|), and requires only modest memory because it never enumerates all possible orderings. The algorithm is therefore suitable for moderate‑to‑large data sets and can be embedded within routine likelihood‑ratio testing procedures that need the restricted maximum likelihood value.

The paper validates the approach through extensive simulation studies. When sample sizes are small (n ≈ 30–50), the monotonicity‑constrained estimator reduces mean‑squared error by 15–30 % relative to the unconstrained GLM, exhibits markedly lower bias, and yields more accurate p‑values in likelihood‑ratio tests. The authors also demonstrate that the method works equally well for binary outcomes (logistic regression) and right‑censored survival data (Cox model).

A real‑world application is presented using an oncology data set where tumor stage (an ordinal variable) and several clinical covariates predict overall survival. Applying the active‑set algorithm produces a restricted Cox model that respects the natural ordering of stages. The resulting likelihood‑ratio test confirms a statistically significant monotonic effect of stage on survival, whereas the unrestricted model, burdened by extra degrees of freedom, fails to achieve significance. This example illustrates the practical advantage of the constrained approach for hypothesis testing and interpretation.

In conclusion, the authors deliver a versatile, theoretically sound, and computationally efficient tool for fitting GLMs with ordered predictors under monotonicity constraints. The active‑set algorithm not only improves estimation efficiency in small samples but also facilitates exact likelihood‑ratio testing in restricted models. Future work suggested includes extensions to multiple interacting ordinal predictors, incorporation of sparsity penalties for high‑dimensional settings, and Bayesian formulations that could further exploit prior knowledge about ordering.
