Moiré Synergy: An Emerging Game Changer by Moiré of Moiré

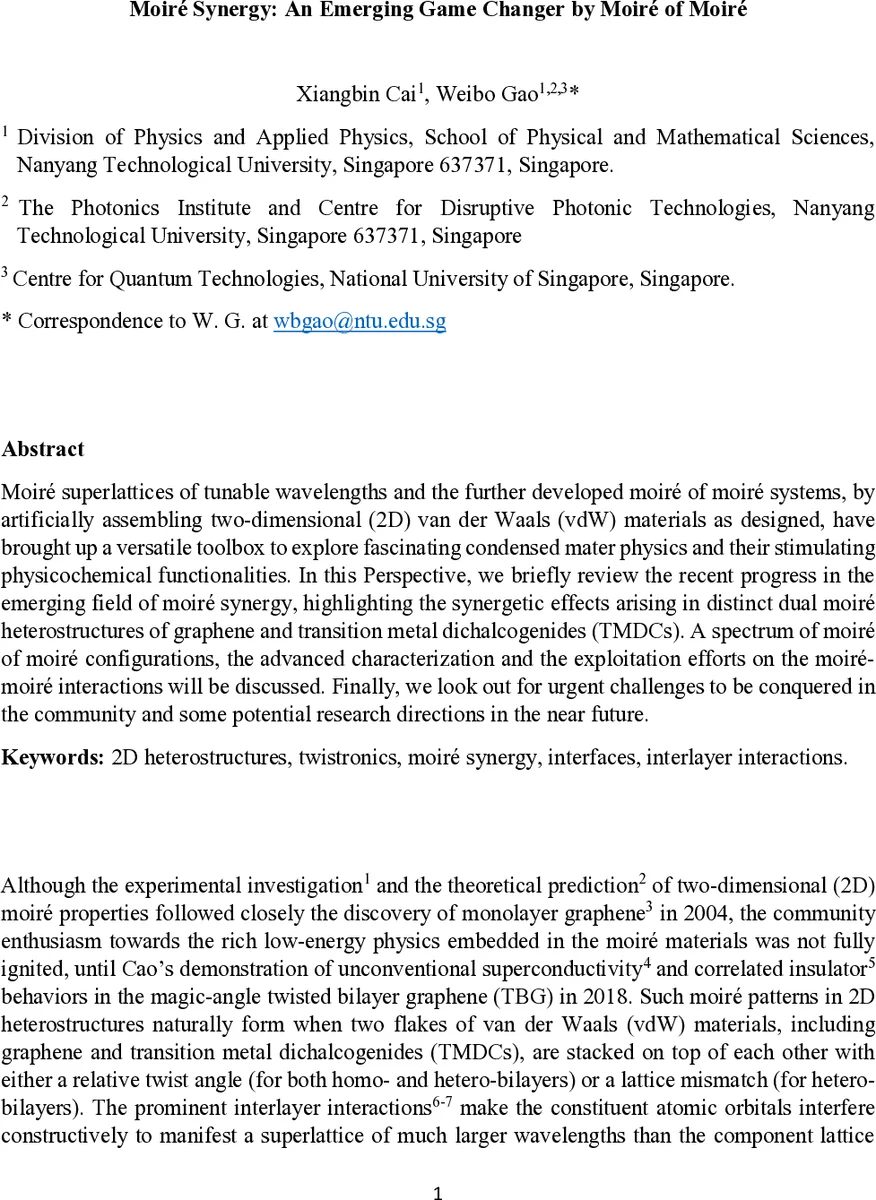

Moiré superlattices of tunable wavelengths and the further developed moiré of moiré systems, by artificially assembling two-dimensional (2D) van der Waals (vdW) materials as designed, have brought up a versatile toolbox to explore fascinating condensed mater physics and their stimulating physicochemical functionalities. In this Perspective, we briefly review the recent progress in the emerging field of moiré synergy, highlighting the synergetic effects arising in distinct dual moiré heterostructures of graphene and transition metal dichalcogenides (TMDCs). A spectrum of moiré of moiré configurations, the advanced characterization and the exploitation efforts on the moiré-moiré interactions will be discussed. Finally, we look out for urgent challenges to be conquered in the community and some potential research directions in the near future.

💡 Research Summary

This Perspective article surveys the rapidly emerging field of “moiré‑of‑moiré” heterostructures—systems in which two distinct moiré superlattices are overlaid to create a higher‑order superlattice with tunable periodicity and potential depth. The authors first outline three practical design routes: (i) purely mechanical stacking of identical 2D van‑der‑Waals (vdW) flakes with consecutive or alternating twist angles, (ii) chemical modification of constituent layers (e.g., TMDC alloying) to engineer lattice mismatches, and (iii) hybrid approaches that combine both strategies. They emphasize that the relative alignment (twist or sliding) between the two moiré lattices—termed the inter‑moiré configuration—critically determines the final superlattice geometry, with homo‑trilayers being more twist‑sensitive than hetero‑trilayers.

Advanced characterization techniques are reviewed. Conductive atomic force microscopy (C‑AFM) revealed unexpected symmetry‑breaking conductivity at AA sites in consecutively twisted graphene trilayers. Angle‑resolved photo‑emission spectroscopy (ARPES) demonstrated a large moiré potential and strong band hybridization in graphene/WS₂/WSe₂ stacks. Atom‑resolved scanning tunneling microscopy (STM) combined with ARPES is highlighted as a promising route to directly image flat bands and electronic reconstructions. Dirac spectroscopy under varying electric fields was used to extract correlated gap sizes in twisted trilayer graphene, illustrating how Landau‑level crossings can probe phase transitions in these complex systems.

The paper then discusses functional synergies that arise when multiple moiré channels coexist. In alternating‑twist graphene multilayers (3‑ to 5‑layer), the superconducting dome expands to higher carrier fillings and the critical electric field required to suppress superconductivity is reduced, indicating enhanced controllability. In TMDC heterostructures, dual moiré patterns can either lengthen exciton lifetimes (WSe₂/WS₂/MoS₂) by reducing binding energy, or boost photoluminescence quantum yield (WSe₂/MoSe₂/WSe₂) through increased electron‑hole wave‑function overlap, depending on whether the inter‑moiré configuration breaks or preserves inversion symmetry.

Beyond device performance, the authors highlight emergent quantum phases unique to moiré‑of‑moiré systems. Consecutively twisted graphene trilayers exhibit correlated insulating and superconducting states at ultra‑low carrier densities (~10¹⁰ cm⁻²), distinct from magic‑angle bilayer graphene, likely due to a larger higher‑order superlattice and flatter bands. In angle‑aligned WS₂/bilayer WSe₂/WS₂ stacks, exciton density waves form a Bose‑Fermi mixture, producing fractional‑filling excitonic insulators absent in single‑moiré systems. A 1°/4° twisted WSe₂/MoSe₂/WSe₂ heterostructure enables charge‑order sensing, revealing a spectrum of fractional‑filling correlated states with spin signatures. These findings illustrate that moiré‑of‑moiré platforms add new degrees of freedom—multiple lattice periods, tunable inter‑layer coupling, and symmetry control—enabling simulation of models such as Bose‑Hubbard or Kondo lattices that are inaccessible with a single moiré layer.

Finally, the article outlines critical challenges. Interface cleanliness becomes exponentially harder as the number of vdW interfaces grows; contaminants trapped during exfoliation, transfer, or stacking generate blisters that scatter carriers and disrupt long‑range order. While mechanical cleaning (hot pick‑up, high‑temperature lamination, AFM tip cleaning) works on a lab scale, scalable low‑temperature CVD growth of multi‑moiré stacks is still lacking. Electrical contacts suffer from Fermi‑level pinning and Schottky barriers, especially for TMDC layers; universal, reproducible Ohmic contact schemes remain an open problem. On the theoretical side, most moiré band models assume rigid stacking, ignoring lattice relaxation and strain that are pronounced in multi‑layer vdW systems; incorporating inter‑layer adhesion‑driven reconstruction is essential for accurate predictions. Addressing these fabrication, contact, and modeling hurdles will be pivotal for turning moiré‑of‑moiré heterostructures into a robust platform for quantum simulation, novel superconductivity, and next‑generation optoelectronic devices.
