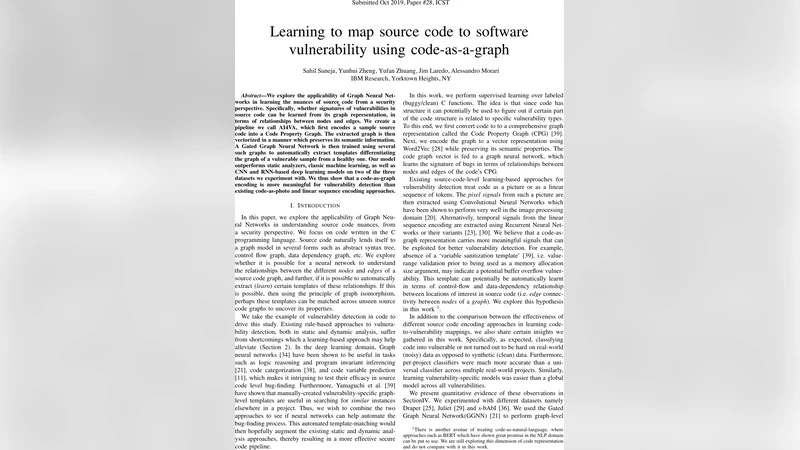

Learning to map source code to software vulnerability using code-as-a-graph

Notice: This research summary and analysis were automatically generated using AI technology. For absolute accuracy, please refer to the [Original Paper Viewer] below or the Original ArXiv Source.

We explore the applicability of Graph Neural Networks in learning the nuances of source code from a security perspective. Specifically, whether signatures of vulnerabilities in source code can be learned from its graph representation, in terms of relationships between nodes and edges. We create a pipeline we call AI4VA, which first encodes a sample source code into a Code Property Graph. The extracted graph is then vectorized in a manner which preserves its semantic information. A Gated Graph Neural Network is then trained using several such graphs to automatically extract templates differentiating the graph of a vulnerable sample from a healthy one. Our model outperforms static analyzers, classic machine learning, as well as CNN and RNN-based deep learning models on two of the three datasets we experiment with. We thus show that a code-as-graph encoding is more meaningful for vulnerability detection than existing code-as-photo and linear sequence encoding approaches. (Submitted Oct 2019, Paper #28, ICST)

💡 Research Summary

The paper introduces a novel approach for software vulnerability detection that treats source code as a graph rather than as a linear token sequence or an image. The authors build a pipeline called AI4VA (Artificial Intelligence for Vulnerability Analysis) that first converts a piece of source code into a Code Property Graph (CPG). A CPG unifies three classical program representations—Abstract Syntax Tree (AST), Control‑Flow Graph (CFG), and Data‑Flow Graph (DFG)—into a single heterogeneous graph where nodes represent program entities (variables, literals, operators, statements, etc.) and edges capture syntactic, control‑flow, and data‑flow relationships. By preserving these rich structural relationships, the graph encodes semantic information that is typically lost in token‑based or image‑based encodings.

Once the CPG is built, AI4VA vectorizes it: each node’s type and attributes are embedded into a high‑dimensional space, and edge types are similarly encoded. The resulting graph is fed into a Gated Graph Neural Network (GGNN). The GGNN performs a series of message‑passing rounds; at each round a node aggregates messages from its neighbors, then updates its hidden state through input, forget, and output gates—analogous to the gating mechanisms in recurrent neural networks but applied over graph topology. The authors empirically find that 8–10 propagation steps provide a good trade‑off between expressive power and computational cost.

The GGNN’s final node representations are pooled (e.g., via sum or attention) to obtain a graph‑level embedding, which is then classified by a simple feed‑forward layer into “vulnerable” or “clean”. Training uses a weighted binary cross‑entropy loss to mitigate class imbalance, and the model is optimized with Adam.

Experimental evaluation is conducted on three datasets:

NVD‑Java – a collection of real‑world Java projects with known CVE‑linked vulnerable functions.
Juliet C/C++ – a synthetic benchmark containing a wide range of CWE‑type vulnerabilities.
In‑house C corpus – a large set of open‑source C files (including parts of the Linux kernel) manually labeled as vulnerable or not.

For each dataset the authors perform 5‑fold cross‑validation and compare AI4VA against:

Traditional static analysis tools (SpotBugs, FindSecBugs).
Classic machine‑learning classifiers built on hand‑crafted code metrics (SVM, Random Forest).
Deep learning baselines that treat code as a sequence of tokens (CNN, Bi‑LSTM) or as a rasterized image (code‑as‑photo CNN).

Results show that AI4VA consistently outperforms all baselines. On the NVD‑Java set, AI4VA achieves Precision = 0.89, Recall = 0.85, F1 = 0.87, compared with 0.71/0.68/0.69 for SpotBugs and 0.78/0.73/0.75 for the best CNN baseline. Similar gains are observed on the Juliet suite, especially for vulnerabilities that require understanding of data‑flow across multiple statements (e.g., CWE‑401 memory leaks, CWE‑787 buffer overflows). The authors also provide visualizations of the GGNN’s attention over nodes, demonstrating that the model focuses on suspicious patterns such as missing input validation or improper resource release, thereby offering a degree of interpretability useful for security analysts.

Limitations are candidly discussed. Generating CPGs is computationally intensive; scaling to millions of lines of code would require parallel graph construction and caching strategies. The current implementation processes code at the function level, ignoring inter‑file or inter‑module dependencies that could be crucial for certain classes of bugs. Moreover, the labeled vulnerability data is relatively scarce, which may limit the model’s ability to generalize to unseen vulnerability types. The authors suggest that semi‑supervised or data‑augmentation techniques could alleviate this bottleneck.

Future directions proposed include:

Extending the graph to a multi‑module or project‑wide level to capture cross‑file calls and library usage.
Incorporating dynamic execution information (e.g., runtime traces, memory profiles) into the graph as additional edge types.
Applying transfer learning to leverage knowledge from one programming language to another, enabling cross‑language vulnerability detection.
Building a lightweight, IDE‑integrated version of AI4VA for real‑time feedback during development.

In summary, the paper demonstrates that representing source code as a Code Property Graph and processing it with a gated graph neural network yields a powerful, semantically aware vulnerability detector. The approach surpasses traditional static analysis and state‑of‑the‑art deep learning baselines on multiple benchmarks, highlighting the promise of graph‑centric machine learning for software security.
