A Review on Feature-Mapping Methods for Structural Optimization

In this review we identify a new category of structural optimization methods that has emerged over the last 20 years, which we propose to call feature-mapping methods. The two defining aspects of these methods are that the design is parameterized by a high-level geometric description and that features are mapped onto a fixed grid for analysis. The main motivation for using these methods is to gain better control over the geometry to, for example, facilitate imposing direct constraints on geometric features, whilst avoiding issues with re-meshing. The review starts by providing some key definitions and then examines the ingredients that these methods use to map geometric features onto a fixed-grid. One of these ingredients corresponds to the mechanism for mapping the geometry of a single feature onto a fixed analysis grid, from which an ersatz material or an immersed boundary approach is used for the analysis. For the former case, which we refer to as the pseudo-density approach, a test problem is formulated to investigate aspects of the material interpolation, boundary smoothing and numerical integration. We also review other ingredients of feature-mapping techniques, including approaches for combining features (which are required to perform topology optimization) and methods for imposing a minimum separation distance among features. A literature review of feature-mapping methods is provided for shape optimization, combined feature/free-form optimization, and topology optimization. Finally, we discuss potential future research directions for feature-mapping methods.

💡 Research Summary

This paper introduces and systematically reviews a recently emerging class of structural optimization techniques that the authors term “feature‑mapping methods.” The defining characteristics of these methods are (1) the use of high‑level geometric parameters—such as radii, thicknesses, positions, and orientations—to describe design features, and (2) the mapping of those features onto a fixed analysis grid, thereby avoiding any mesh regeneration during the optimization loop. The authors begin by positioning feature‑mapping within the traditional taxonomy of size, shape, and topology optimization, emphasizing that conventional approaches either require mesh deformation or rely on implicit pixel/voxel representations that are detached from CAD‑friendly geometry.

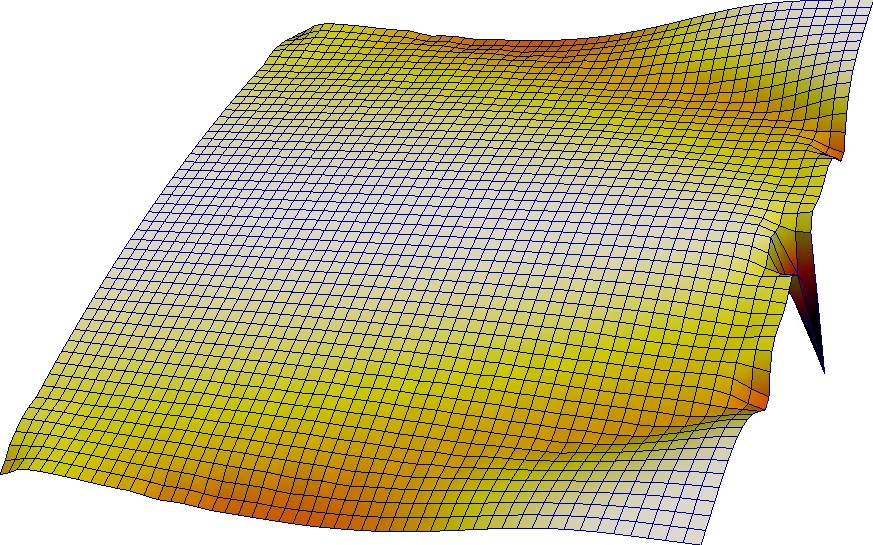

Two principal strategies for mapping a single feature onto a fixed grid are examined in depth. The first is the pseudo‑density (or ersatz‑material) approach, in which each finite‑element’s pseudo‑density ρₑ is obtained by integrating a (smoothed) Heaviside function of an implicit level‑set φ(x) over the element. The pseudo‑density field can be interpreted as a material volume fraction, and a material interpolation function µ(ρ) (e.g., SIMP ρᵖ, linear ρ, or RAMP ρ/(1+q(1‑ρ))) converts ρₑ into an effective stiffness. The authors discuss the implications of different interpolation laws, noting that intermediate densities must respect the Hashin‑Shtrikman bounds to avoid non‑physical stiffness overestimation. They also explore various smooth approximations of the Heaviside step (sigmoid, tanh, high‑order polynomials) and the impact of numerical integration schemes (exact integration, Gauss quadrature, sampling) on accuracy and sensitivity computation.

The second strategy is the immersed‑boundary (or XFEM/isogeometric) approach, which captures sharp interfaces on a fixed grid by explicitly integrating over the intersection of the element and the feature domain. This eliminates gray regions and yields a more accurate representation of the boundary, but it introduces challenges in evaluating cut‑element integrals and computing sensitivities, especially when the interface moves. The paper surveys several techniques for handling these challenges, including level‑set reconstruction, sub‑element integration, and enrichment functions.

Beyond single‑feature mapping, the review addresses how multiple features are combined. Boolean operations (union, intersection, subtraction), additive level‑set superposition, and distance‑field blending are presented as mechanisms for constructing complex geometries from elementary primitives. The authors highlight the importance of maintaining differentiability of the combined representation to enable gradient‑based optimization.

A separate section discusses minimum‑separation constraints, which are essential for manufacturability and for preventing feature overlap. Various enforcement strategies are surveyed, such as penalty terms, filter‑based distance fields, and explicit constraint formulations based on pairwise distances.

The literature review is organized into three application domains: (i) shape optimization, where feature‑mapping is used to directly control boundaries without topological changes; (ii) hybrid methods that couple feature‑mapping with traditional density‑based topology optimization, allowing high‑level components to coexist with a free‑form background material; and (iii) pure topology optimization, where feature parameters serve as design variables that guide the emergence of holes or inclusions while still permitting topological evolution. Representative works in each category are summarized, illustrating how authors have leveraged the high‑level parameterization to improve CAD integration, reduce design variable counts, and impose intuitive geometric constraints.

Finally, the authors outline promising research directions: (a) machine‑learning‑assisted initialization and surrogate modeling to navigate the high‑dimensional design space efficiently; (b) multiphysics extensions that couple structural, thermal, and electromagnetic fields within a unified feature‑mapping framework; (c) real‑time interactive design environments that exploit the low variable count and fixed‑grid analysis for rapid feedback; and (d) algorithmic improvements such as more accurate cut‑cell integration for immersed‑boundary methods and physically‑consistent material interpolation schemes for pseudo‑density approaches.

In summary, the paper convincingly argues that feature‑mapping methods bridge the gap between CAD‑friendly high‑level geometry and efficient fixed‑grid finite‑element analysis, offering a versatile toolbox for modern structural design while identifying key technical challenges that must be addressed to fully realize their potential.
