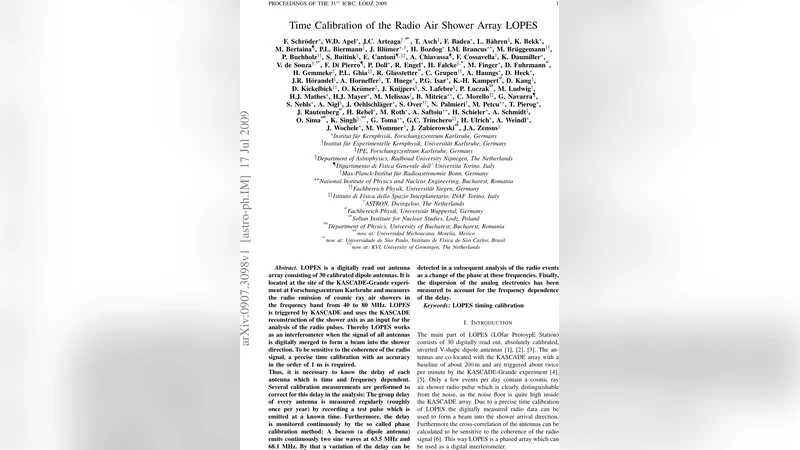

Time Calibration of the Radio Air Shower Array LOPES

LOPES is a digitally read out antenna array consisting of 30 calibrated dipole antennas. It is located at the site of the KASCADE-Grande experiment at Forschungszentrum Karlsruhe and measures the radio emission of cosmic ray air showers in the frequency band from 40 to 80 MHz. LOPES is triggered by KASCADE and uses the KASCADE reconstruction of the shower axis as an input for the analysis of the radio pulses. Thereby LOPES works as an interferometer when the signal of all antennas is digitally merged to form a beam into the shower direction. To be sensitive to the coherence of the radio signal, a precise time calibration with an accuracy in the order of 1 ns is required. Thus, it is necessary to know the delay of each antenna which is time and frequency dependent. Several calibration measurements are performed to correct for this delay in the analysis: The group delay of every antenna is measured regularly (roughly once per year) by recording a test pulse which is emitted at a known time. Furthermore, the delay is monitored continuously by the so called phase calibration method: A beacon (a dipole antenna) emits continuously two sine waves at 63.5 MHz and 68.1 MHz. By that a variation of the delay can be detected in a subsequent analysis of the radio events as a change of the phase at these frequencies. Finally, the dispersion of the analog electronics has been measured to account for the frequency dependence of the delay.

💡 Research Summary

The paper presents a comprehensive time‑calibration scheme for the LOPES (LOFAR Prototype Station) radio antenna array, which is co‑located with the KASCADE‑Grande air‑shower experiment at the Forschungszentrum Karlsruhe. LOPES consists of 30 calibrated dipole antennas that record the radio emission from extensive air showers in the 40–80 MHz band. Because the array operates as a digital interferometer—forming a beam in the direction of the shower axis reconstructed by KASCADE—the coherence of the radio signal across all antennas is a crucial observable. Achieving this coherence requires knowledge of the signal‑arrival time at each antenna with an accuracy on the order of 1 ns.
The authors identify three distinct contributions to the total delay of each channel: (1) a static, frequency‑independent component arising from the antenna geometry, cable lengths, and front‑end electronics; (2) a dynamic, time‑varying component caused by environmental factors (temperature, humidity, power‑supply fluctuations) that changes the effective electrical length of the signal path; and (3) a frequency‑dependent dispersion introduced by the analog electronics (pre‑amplifiers, filters, transmission lines). To correct for these effects, they implement a three‑step calibration procedure.
First, an annual “group‑delay” measurement is performed. A calibrated test pulse is emitted at a known time near the array, and the arrival time at each antenna is recorded. By comparing the recorded times to the emission time, the total static delay for each channel is determined. This measurement is repeated roughly once per year to capture any long‑term changes in the hardware.
Second, a continuous “phase‑calibration” method monitors the dynamic component. A dedicated beacon antenna continuously transmits two pure sine waves at 63.5 MHz and 68.1 MHz. During normal data taking, the phases of these two tones are extracted from each antenna’s recorded waveform. Any shift in phase Δφ at a given frequency directly translates into a time shift Δt = Δφ/(2πf). Because the two frequencies are well separated, the method can simultaneously detect and correct for small, frequency‑dependent drifts, providing a real‑time correction that compensates for temperature‑induced cable length changes and other environmental effects. The authors show that the beacon‑based phase monitoring can track delay variations of several hundred picoseconds over diurnal temperature cycles.
Third, the authors address the dispersion of the analog signal chain. Using a vector network analyzer, they measure the complex transfer function of each front‑end module across the full 40–80 MHz band. From these measurements they derive a frequency‑dependent delay function τ(f) for each channel. In the data‑processing pipeline, the recorded waveforms are Fourier‑transformed, corrected by subtracting τ(f) at each frequency, and then transformed back to the time domain. This step restores the true pulse shape and eliminates systematic broadening that would otherwise degrade the interferometric coherence.
The three calibration components are combined in the reconstruction software: the static group delay provides a baseline offset, the beacon‑derived phase correction supplies a time‑dependent offset applied to each event, and the dispersion correction removes frequency‑dependent distortions. After applying the full calibration, the authors demonstrate that the residual timing uncertainty between any pair of antennas is typically below 0.3 ns, well within the 1 ns requirement for coherent beamforming. They validate the performance using both artificial test pulses and real air‑shower events, showing a marked increase in the interferometric signal‑to‑noise ratio and a tighter correlation of the reconstructed radio beam with the KASCADE‑Grande shower axis.
In addition to the technical description, the paper discusses the broader implications of this calibration strategy. The ability to maintain sub‑nanosecond timing stability over long periods and under varying environmental conditions is essential for any large‑scale radio detection array, such as LOFAR, AERA, or the upcoming SKA‑Low. The dual‑tone beacon approach offers a low‑cost, continuously operating reference that can be scaled to hundreds of antennas, while the dispersion measurement ensures that wide‑band signals are faithfully reconstructed.
Overall, the work provides a robust, multi‑layered calibration framework that enables LOPES to exploit the full interferometric potential of its antenna array, delivering high‑precision measurements of cosmic‑ray‑induced radio emission and setting a benchmark for future radio‑based astroparticle experiments.
