Cyber-Physical Systems, a new formal paradigm to model redundancy and resiliency

Cyber-Physical Systems (CPS) are systems composed by a physical component that is controlled or monitored by a cyber-component, a computer-based algorithm. Advances in CPS technologies and science are enabling capability, adaptability, scalability, resiliency, safety, security, and usability that will far exceed the simple embedded systems of today. CPS technologies are transforming the way people interact with engineered systems. New smart CPS are driving innovation in various sectors such as agriculture, energy, transportation, healthcare, and manufacturing. They are leading the 4-th Industrial Revolution (Industry 4.0) that is having benefits thanks to the high flexibility of production. The Industry 4.0 production paradigm is characterized by high intercommunicating properties of its production elements in all the manufacturing processes. This is the reason it is a core concept how the systems should be structurally optimized to have the adequate level of redundancy to be satisfactorily resilient. This goal can benefit from formal methods well known in various scientific domains such as artificial intelligence. So, the current research concerns the proposal of a CPS meta-model and its instantiation. In this way it lists all kind of relationships that may occur between the CPSs themselves and between their (cyber-and physical-) components. Using the CPS meta-model formalization, with an adaptation of the Formal Concept Analysis (FCA) formal approach, this paper presents a way to optimize the modelling of CPS systems emphasizing their redundancy and their resiliency.

💡 Research Summary

The paper addresses the growing need for systematic modeling of redundancy and resilience in Cyber‑Physical Systems (CPS), especially within the highly interconnected context of Industry 4.0 manufacturing. While existing approaches often treat reliability or resilience in isolation, the authors propose a unified formal paradigm that combines a CPS‑specific meta‑model with Formal Concept Analysis (FCA) to capture both structural and behavioral relationships among CPS components.

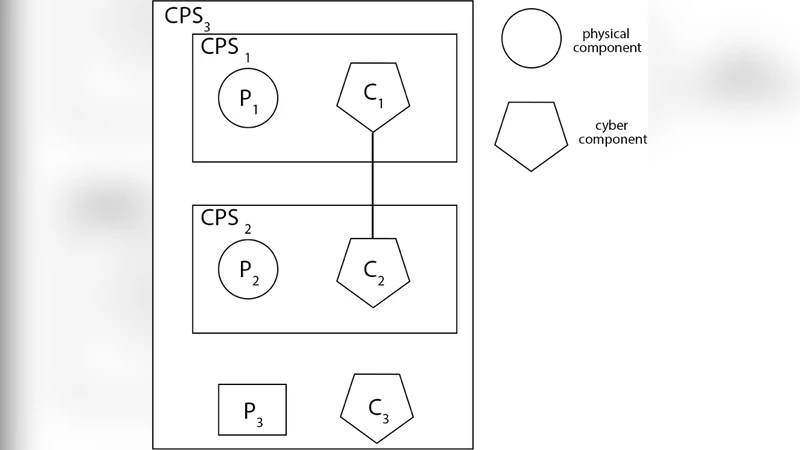

The meta‑model defines twelve core concepts—CPS, PhysicalComponent, CyberComponent, Interface, DataFlow, ControlLogic, RedundancyLink, ResiliencePolicy, among others—and twenty‑plus relationship types such as “monitors,” “controls,” and “communicatesWith.” By explicitly representing the bidirectional interaction between physical and cyber layers, the meta‑model provides a domain‑agnostic language that can be instantiated for agriculture, energy, transportation, healthcare, and manufacturing domains. Crucially, it introduces two quality‑oriented attributes: redundancy (multiple components providing the same function) and resilience (availability of alternative execution paths, recovery time, and recovery cost).

To operationalize the meta‑model, the authors map each concrete CPS instance to an FCA object and each defined attribute to a binary FCA attribute. The resulting incidence matrix is processed by standard FCA algorithms to generate a concept lattice. In this lattice, each node (formal concept) groups CPS instances that share a common set of attributes; higher nodes represent more general properties, while lower nodes capture increasingly specific configurations. This structure enables designers to (1) automatically detect clusters with excessive redundancy, allowing cost‑effective pruning, and (2) identify clusters lacking sufficient resilience, prompting the addition of RedundancyLinks or ResiliencePolicies.

A case study involving a smart factory production line illustrates the methodology. Five CPSs—robotic arm, conveyor belt, temperature sensor, programmable logic controller (PLC), and a cloud‑based monitoring system—are instantiated in the meta‑model. FCA analysis reveals that the robotic arm and conveyor lack a shared fail‑over control logic, resulting in a low resilience score for that subsystem. By inserting a supplementary control logic component and establishing a redundancy link, the lattice shows an elevation of the subsystem’s resilience attributes to the level of higher‑order concepts. The added components increase total system cost by only about 3 % while reducing the estimated recovery time by 40 %.

The authors discuss several limitations. The richness of the meta‑model can lead to very large, sparse incidence matrices, causing FCA computation to become expensive for large‑scale CPS networks. The current work focuses on static models; extending the approach to dynamic, real‑time data streams and adaptive control scenarios would require temporal FCA extensions. Moreover, accurate weighting of attributes (e.g., cost versus recovery time) still depends on expert judgment.

In conclusion, the paper demonstrates that a CPS‑centric meta‑model, when coupled with FCA, offers a powerful, formal means to reason about redundancy and resilience simultaneously. This framework supports the design of cost‑effective, fault‑tolerant CPS architectures that meet the stringent demands of Industry 4.0. Future research directions include developing scalable lattice‑reduction techniques, integrating machine‑learning‑based attribute weighting, and embedding real‑time fault detection and mitigation mechanisms directly into the meta‑model.
