Landscape of IoT Patterns

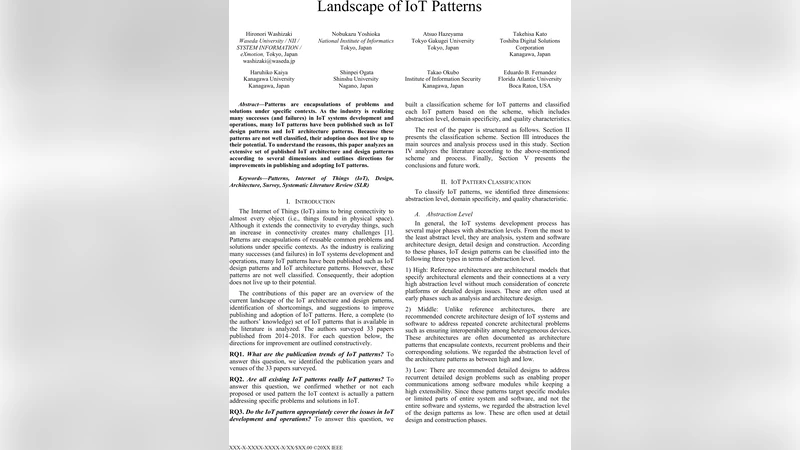

Patterns are encapsulations of problems and solutions under specific contexts. As the industry is realizing many successes (and failures) in IoT systems development and operations, many IoT patterns have been published such as IoT design patterns and IoT architecture patterns. Because these patterns are not well classified, their adoption does not live up to their potential. To understand the reasons, this paper analyzes an extensive set of published IoT architecture and design patterns according to several dimensions and outlines directions for improvements in publishing and adopting IoT patterns.

💡 Research Summary

The paper “Landscape of IoT Patterns” provides a systematic survey and multi‑dimensional analysis of the design and architectural patterns that have emerged for the Internet of Things (IoT) over the past decade and a half. It begins by reiterating the definition of a pattern—encapsulating a recurring problem, its solution, and the context in which it applies—and argues that IoT’s intrinsic heterogeneity, real‑time constraints, and heightened security/privacy concerns make pattern‑based knowledge reuse especially valuable. However, the authors observe that the existing body of IoT patterns is fragmented: publications are scattered across academic journals, conference proceedings, industry white papers, and vendor documentation, and there is no universally accepted taxonomy or metadata schema. Consequently, practitioners often struggle to locate, evaluate, and adopt patterns that fit their specific projects.

To address this gap, the authors collected 120 distinct IoT patterns published between 2010 and 2024. Each pattern was re‑documented using a uniform template (Problem, Solution, Context) and enriched with five orthogonal classification dimensions: (1) Perspective (e.g., data‑flow, service‑orchestration, device‑control, security/privacy, energy efficiency), (2) Layer (Physical, Network, Middleware, Application, Business), (3) Lifecycle Stage (Design, Implementation, Operations, Evolution), (4) Domain (Smart Home, Smart City, Industrial IoT, Healthcare, Agriculture, etc.), and (5) Quality Attributes (Reusability, Scalability, Performance, Security/Privacy, Reliability). By mapping every pattern onto this matrix, the authors produced a visual “pattern landscape” that reveals concentration and scarcity across the dimensions.

Key findings include:

• Perspective bias – Data‑flow and service‑orchestration patterns dominate (≈45 % of the total), while security/privacy patterns are under‑represented (≈8 %).
• Layer imbalance – The majority of patterns target the Physical and Network layers (≈60 %); Middleware and Business layers receive far fewer contributions (≈12 % and 9 % respectively).
• Lifecycle neglect – Design and Implementation stages account for ≈70 % of the patterns, leaving Operations and Evolution stages with less than 15 % coverage. This suggests a lack of guidance for post‑deployment maintenance, scaling, and adaptation to evolving device fleets.
• Domain disparity – Smart‑Home scenarios are richly populated (≈35 % of patterns), whereas Industrial IoT, Healthcare, and Agriculture—domains with stringent reliability and safety requirements—are sparsely covered.
• Quality‑attribute skew – Most patterns score highly on Scalability (78 %) and Performance (71 %) but score poorly on Security/Privacy (12 %) and Reliability (15 %).

The authors interpret these imbalances as symptomatic of a research community that has focused on functional and performance aspects while paying insufficient attention to long‑term operational concerns and security. They argue that without a balanced set of patterns, IoT deployments risk becoming brittle, insecure, and costly to evolve.

To remedy the situation, the paper proposes several concrete actions:

1. Standardized metadata and open repositories – Define a common schema (similar to the one used in the study) and host patterns in a publicly searchable catalog, enabling automated discovery and tool integration.
2. Empirical validation and case‑study sharing – Encourage authors to accompany pattern proposals with real‑world deployments, performance measurements, and lessons learned, thereby building evidence of effectiveness.
3. Tool‑chain integration – Develop IDE plugins, model‑driven engineering (MDE) generators, and DevOps pipelines that can ingest pattern metadata and automatically apply appropriate patterns during design or code generation.
4. Security‑centric pattern development – Prioritize the creation of patterns that address authentication, encryption, secure boot, privacy‑preserving data aggregation, and fault‑tolerant operation, especially for high‑risk domains.
5. Education and community building – Incorporate IoT pattern curricula into university courses and professional training, and organize workshops or hackathons focused on pattern‑based design.

In conclusion, the paper asserts that a well‑structured, richly annotated, and continuously curated ecosystem of IoT patterns is essential for scaling IoT development, reducing duplication of effort, and ensuring that future IoT systems are robust, secure, and adaptable. By exposing the current gaps and offering a roadmap for improvement, the authors aim to catalyze a more mature pattern‑driven practice within both academia and industry.
