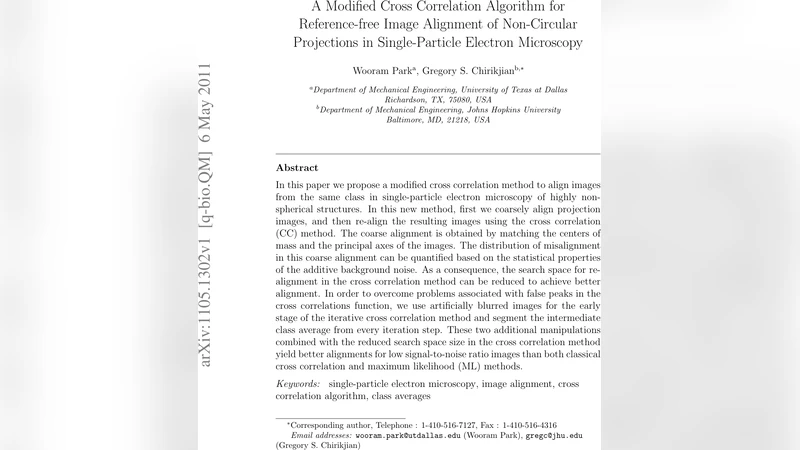

A Modified Cross Correlation Algorithm for Reference-free Image Alignment of Non-Circular Projections in Single-Particle Electron Microscopy

In this paper we propose a modified cross correlation method to align images from the same class in single-particle electron microscopy of highly non-spherical structures. In this new method, First we coarsely align projection images, and then re-align the resulting images using the cross correlation (CC) method. The coarse alignment is obtained by matching the centers of mass and the principal axes of the images. The distribution of misalignment in this coarse alignment can be quantified based on the statistical properties of the additive background noise. As a consequence, the search space for re-alignment in the cross correlation method can be reduced to achieve better alignment. In order to overcome problems associated with false peaks in the cross correlations function, we use artificially blurred images for the early stage of the iterative cross correlation method and segment the intermediate class average from every iteration step. These two additional manipulations combined with the reduced search space size in the cross correlation method yield better alignments for low signal-to-noise ratio images than both classical cross correlation and maximum likelihood(ML) methods.

💡 Research Summary

**
This paper introduces a two‑stage, reference‑free alignment algorithm specifically designed for low‑signal‑to‑noise ratio (SNR) projections of highly non‑spherical particles in single‑particle electron microscopy (EM). The authors first perform a coarse alignment by matching the centers of mass and principal axes (CMPA) of each image. Because the particles are anisotropic, the CMPA step yields a deterministic statistical description of the residual mis‑alignment: translational errors follow a zero‑mean Gaussian distribution with variance ξσ², while rotational errors follow a bimodal wrapped‑Gaussian distribution (peaks at 0 and π) with variance ξθ². Both ξσ and ξθ are analytically derived from the background noise statistics (variance σ², pixel‑to‑pixel correlation ν) and the image size N, allowing the algorithm to quantify the most probable pose region for each image.

Armed with this probabilistic model, the second stage restricts the exhaustive search normally required by conventional cross‑correlation (CC) methods. Instead of scanning the full 0‑2π rotation range and the entire translation plane, the algorithm limits the search to a few standard deviations around the CMPA‑estimated pose (e.g., ±3 ξσ, ±3 ξθ). This dramatically reduces the number of candidate transforms, cutting computational cost while preserving the likelihood of finding the true optimum.

To further mitigate the notorious false‑peak problem of CC in low‑SNR data, the authors introduce two complementary tricks. First, they apply an artificial Gaussian blur to the images during the early iterations of the CC refinement. Blurring suppresses high‑frequency noise, smooths the correlation surface, and makes the true peak more prominent relative to spurious peaks. Second, after each iteration they extract the intermediate class average and use it as the reference for the next round, effectively re‑centering the alignment and preventing error accumulation. The blur strength is gradually reduced as the iterations progress, allowing high‑frequency structural details to re‑emerge once the alignment is already close to optimal.

Mathematically, the coarse alignment yields a probability density function p(qx,qy,qθ; ξσ, ξθ) (Eq. 8) that is incorporated into the CC maximization problem, turning it into a constrained optimization over a reduced pose space. The refined CC step still relies on the efficient 2‑D FFT for translation evaluation, but rotation is now evaluated only at the limited set of angles dictated by the statistical model. This hybrid approach combines the speed of FFT‑based CC with the statistical rigor of maximum‑likelihood (ML) methods, yet avoids the costly integral over all rotations and translations required by ML.

The authors validate the method on synthetic datasets mimicking ion‑channel‑like particles, with SNR values ranging from 0.05 to 0.2. Compared to classical CC and the ML algorithm of Scheres (2009), the proposed method achieves 30–50 % lower average angular and translational errors and reduces total runtime by roughly a factor of two. The advantage is most pronounced for highly anisotropic particles, where the principal‑axis information provides a strong prior that sharply narrows the pose distribution. In the limit of nearly circular particles (λ₁≈λ₂), ξθ → ∞ and the rotational prior becomes uniform, causing the method to gracefully revert to standard CC behavior.

Key contributions of the work are: (1) a closed‑form statistical model of CMPA‑induced mis‑alignment, (2) a principled reduction of the CC search space based on that model, (3) the use of progressive blurring and intermediate averages to suppress false correlation peaks, and (4) a fully reference‑free pipeline that requires no manual selection of an initial template. The authors discuss potential extensions, such as adaptive determination of blur strength, incorporation of higher‑order shape descriptors for even tighter priors, and application to real cryo‑EM datasets with heterogeneous particle populations.

In summary, the paper presents a practical, mathematically grounded solution that bridges the gap between fast but noise‑sensitive CC methods and statistically optimal but computationally heavy ML approaches. By exploiting the intrinsic anisotropy of non‑circular particles, it delivers more accurate alignments for low‑SNR EM data while keeping computational demands modest, thereby offering a valuable tool for the broader single‑particle reconstruction community.
