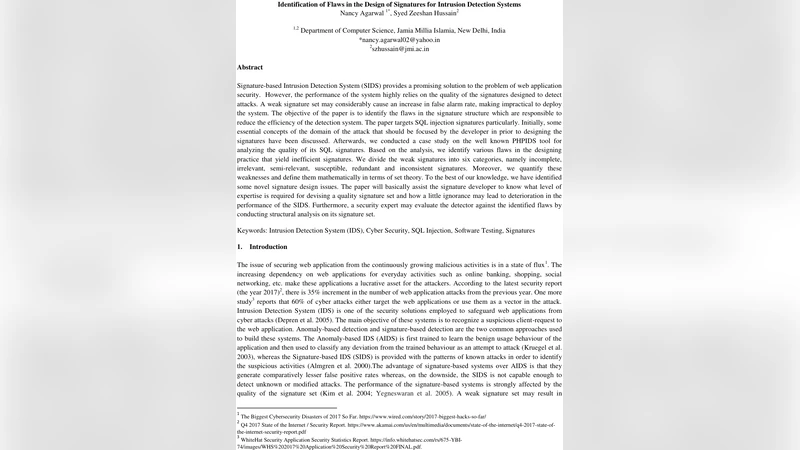

Identification of Flaws in the Design of Signatures for Intrusion Detection Systems

Signature-based Intrusion Detection System (SIDS) provides a promising solution to the problem of web application security. However, the performance of the system highly relies on the quality of the signatures designed to detect attacks. A weak signature set may considerably cause an increase in false alarm rate, making impractical to deploy the system. The objective of the paper is to identify the flaws in the signature structure which are responsible to reduce the efficiency of the detection system. The paper targets SQL injection signatures particularly. Initially, some essential concepts of the domain of the attack that should be focused by the developer in prior to designing the signatures have been discussed. Afterwards, we conducted a case study on the well known PHPIDS tool for analyzing the quality of its SQL signatures. Based on the analysis, we identify various flaws in the designing practice that yield inefficient signatures. We divide the weak signatures into six categories, namely incomplete, irrelevant, semi-relevant, susceptible, redundant and inconsistent signatures. Moreover, we quantify these weaknesses and define them mathematically in terms of set theory. To the best of our knowledge, we have identified some novel signature design issues. The paper will basically assist the signature developer to know what level of expertise is required for devising a quality signature set and how a little ignorance may lead to deterioration in the performance of the SIDS. Furthermore, a security expert may evaluate the detector against the identified flaws by conducting structural analysis on its signature set.

💡 Research Summary

The paper investigates the design quality of signatures used in signature‑based intrusion detection systems (SIDS), focusing specifically on SQL injection (SQLi) detection. It begins by emphasizing that the effectiveness of a SIDS is tightly coupled to the precision and completeness of its signature set; a weak set leads to high false‑positive rates and renders the system impractical. The authors argue that merely possessing knowledge of the attack domain is insufficient—developers must translate that knowledge into well‑structured detection rules that correctly capture the myriad variations of SQLi payloads.

A comprehensive review of related work shows that most prior evaluations of IDSs are either black‑box performance tests or white‑box analyses limited to redundancy and overlap detection. Few studies have systematically categorized the structural flaws of signatures themselves. To fill this gap, the authors first outline the essential concepts of SQLi attacks, including the different injection techniques (tautology‑based, UNION‑based, error‑based, blind, time‑based) and the subtle syntactic differences among major DBMSs (MySQL, SQL Server, Oracle). They illustrate how minor details—such as the need for a space after the “OR” operator versus the “||” operator, or the presence of vendor‑specific clauses like LIMIT versus TOP—must be reflected in regular expressions; otherwise, signatures become vulnerable to evasion.

The core empirical contribution is a case study on the open‑source PHPIDS tool. The authors generated 415 distinct SQLi attack vectors (five per signature) and automated their injection into a vulnerable web application using iMacros scripts. By measuring detection (sensitivity) and false‑positive (specificity) rates for each signature, they identified six distinct categories of design flaws:

1. Incomplete – signatures fail to match certain legitimate variants, resulting in a detection set that is a proper subset of the true attack set.
2. Irrelevant – signatures match benign traffic (e.g., words containing “or”), inflating false positives.
3. Semi‑relevant – signatures are overly broad, catching some benign inputs while still detecting most attacks.
4. Susceptible – signatures can be bypassed through simple transformations such as case changes, URL‑encoding, whitespace insertion, or comment injection.
5. Redundant – multiple signatures detect the same attack pattern, wasting resources and complicating maintenance.
6. Inconsistent – contradictory rules coexist (e.g., one rule permits a SELECT statement while another blocks it), leading to ambiguous detection outcomes.

Each flaw type is formalized using set‑theoretic notation. For example, an incomplete signature satisfies (D \subsetneq A) where (A) is the set of all attack vectors and (D) the subset actually detected. Redundancy is expressed as (S_i \cap S_j \neq \emptyset) for distinct signatures (S_i) and (S_j). These mathematical definitions enable automated static analysis tools to quantify signature quality and pinpoint problematic rules.

The authors also discuss the impact of DBMS‑specific syntax on signature design. A pattern that captures “INSERT … VALUES” in SQL Server will miss the MySQL‑only “INSERT …” form, and vice versa. Vendor‑specific extensions such as MySQL’s LIMIT clause or SQL Server’s TOP clause require separate patterns; ignoring these leads to the “susceptible” flaw category.

In conclusion, the paper makes three primary contributions: (1) a detailed taxonomy of essential SQLi knowledge that must inform signature creation, (2) an empirical evaluation of PHPIDS that uncovers concrete design weaknesses, and (3) a set‑theoretic framework for formally describing and measuring those weaknesses. The work not only highlights previously unreported flaw categories (incomplete, irrelevant, semi‑relevant, susceptible, redundant, inconsistent) but also provides a foundation for future tools that can automatically detect and remediate such issues. The authors suggest that subsequent research should focus on building automated refactoring systems, extending the analysis to other DBMSs and web frameworks, and integrating the mathematical quality metrics into continuous IDS development pipelines.
