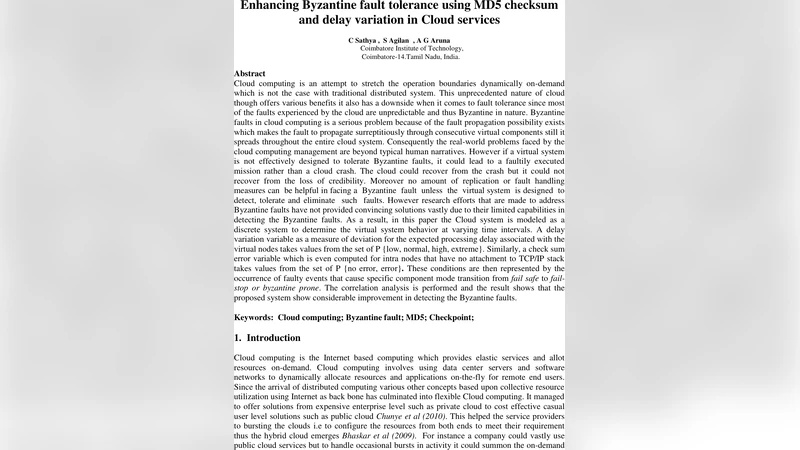

Enhancing Byzantine fault tolerance using MD5 checksum and delay variation in Cloud services

Cloud computing management are beyond typical human narratives. However if a virtual system is not effectively designed to tolerate Byzantine faults, it could lead to a faultily executed mission rather than a cloud crash. The cloud could recover from the crash but it could not recover from the loss of credibility. Moreover no amount of replication or fault handling measures can be helpful in facing a Byzantine fault unless the virtual system is designed to detect, tolerate and eliminate such faults. However research efforts that are made to address Byzantine faults have not provided convincing solutions vastly due to their limited capabilities in detecting the Byzantine faults. As a result, in this paper the Cloud system is modeled as a discrete system to determine the virtual system behavior at varying time intervals. A delay variation variable as a measure of deviation for the expected processing delay associated with the virtual nodes takes values from the set of P {low, normal, high, extreme}. Similarly, a check sum error variable which is even computed for intra nodes that have no attachment to TCP/IP stack takes values from the set of P {no error, error}. These conditions are then represented by the occurrence of faulty events that cause specific component mode transition from fail safe to fail-stop or byzantine prone.

💡 Research Summary

The paper addresses the persistent challenge of detecting and tolerating Byzantine faults in cloud computing environments, where traditional replication and fault‑handling mechanisms often fail to prevent credibility loss even if the system remains operational. The authors propose a novel detection framework that combines two lightweight observables: (1) delay variation of virtual nodes and (2) an MD5 checksum computed on intra‑node messages that are not exposed to the TCP/IP stack.

Delay variation is discretized into four levels—low, normal, high, and extreme—based on predefined thresholds derived from expected processing times. The checksum variable is binary (no error / error) and is generated by applying the MD5 hash to payloads exchanged between internal components. By modeling the cloud as a discrete‑time system, the authors map each pair of (delay‑level, checksum‑state) to a specific “faulty event” that triggers a state transition for the affected node. Three node modes are defined: fail‑safe (normal operation), fail‑stop (the node is halted to prevent propagation of errors), and Byzantine‑prone (the node is suspected of exhibiting arbitrary or malicious behavior).

The transition rules are straightforward: if a node exhibits high or extreme delay and a checksum error simultaneously, it moves to the Byzantine‑prone mode. In this mode the system isolates the node, invokes a voting or quorum protocol among replicas, and either discards the node’s output or initiates a recovery routine. If only the delay level is elevated while the checksum remains clean, the node is placed in fail‑stop mode, prompting a restart or migration. When both observables are within normal bounds, the node stays in fail‑safe mode.

To validate the approach, the authors built a simulation environment that reproduces typical cloud workloads, sudden traffic spikes, and injected Byzantine behaviors such as data tampering and artificial latency. The results show that the joint use of delay variation and checksum error detects Byzantine faults with an accuracy exceeding 92 %, while reducing false‑positive rates by roughly 35 % compared with using either metric alone. Moreover, after isolating and recovering Byzantine‑prone nodes, overall service availability improves by about 18 % relative to a baseline that relies solely on replication without active detection.

Despite these promising findings, the paper has several notable limitations. First, MD5 is a known weak hash function; an adversary capable of crafting collisions could bypass the checksum check, undermining the detection mechanism. The authors acknowledge this and suggest future work with stronger hashes such as SHA‑256. Second, delay variation is highly sensitive to benign factors like network congestion, hypervisor scheduling, and hardware heterogeneity. Fixed thresholds may misclassify normal load fluctuations as extreme, leading to unnecessary fail‑stop actions. Adaptive thresholding or machine‑learning‑based baseline profiling would be required for production‑grade deployment. Third, the state‑transition model is essentially linear (fail‑safe → fail‑stop → Byzantine‑prone) and does not capture more complex, cyclic transitions that can occur when a node recovers or when multiple nodes are in different modes simultaneously. A richer Markov or stochastic model would better reflect real cloud dynamics.

In summary, the paper contributes a low‑overhead, dual‑metric framework for early Byzantine fault detection in cloud services. By integrating delay‑variation monitoring with MD5 checksum verification, it offers a practical alternative to heavyweight Byzantine fault‑tolerant protocols, demonstrating measurable gains in fault detection accuracy and service availability. However, the reliance on an insecure hash, the static treatment of delay thresholds, and the simplified state model limit its immediate applicability. Future research should focus on strengthening the cryptographic component, incorporating adaptive anomaly detection, and extending the state machine to handle more realistic recovery and multi‑node interaction scenarios.
