Angriffserkennung f"ur industrielle Netzwerke innerhalb des Projektes IUNO

The increasing interconnectivity of industrial networks is one of the central current hot topics. It is adressed by research institutes, as well as industry. In order to perform the fourth industrial revolution, a full connectivity between production facilities is necessary. Due to this connectivity, however, an abundance of new attack vectors emerges. In the National Reference Project for Industrial IT-Security (IUNO), these risks and threats are addressed and solutions are developed. These solutions are especially applicable for small and medium sized enterprises that have not as much means in staff as well as money as larger companies. These enterprises should be able to implement the solutions without much effort. The security solutions are derived from four use cases and implemented prototypically. A further topic of this work are the research areas of the German Research Center for Artificial Intelligence that address the given challenges, as well as the solutions developed in the context of IUNO. Aside from the project itself, a method for distributed network data collection aggregation is presented, as a prerequisite for anomaly detection for network security.

💡 Research Summary

The paper presents the results of the German national reference project IUNO (Industrial IT‑Security for Industry 4.0), which aims to protect increasingly interconnected industrial networks from cyber‑threats, with a special focus on small and medium‑sized enterprises (SMEs) that lack extensive IT‑security resources. IUNO defines four core use cases—customer‑specific production, a technology‑data marketplace, remote maintenance, and a visual security dashboard—and develops prototype security solutions that can be integrated into existing plant infrastructure with minimal effort and cost.

The first technical contribution is a Physical Layer Security (PLS) scheme that exploits inherent properties of the wireless channel, especially the Received Signal Strength Indicator (RSSI), to generate and synchronize cryptographic keys without any pre‑shared secret. The method uses error‑correcting codes to reconcile channel measurements and derives a session key that provides forward‑ and backward‑secrecy. Because the key generation is performed locally on low‑power embedded devices, it avoids the computational overhead and key‑distribution infrastructure required by classical public‑key cryptography, making it well suited for industrial IoT environments.

The second contribution is a Deceptive Defense strategy based on honeypots and honeynets. These decoy systems are deployed within the production network to lure attackers, capture their tactics, tools, and payloads, and feed the collected logs into a machine‑learning‑driven forensic engine. The engine automatically classifies attack patterns, generates signatures and behavior‑based detection rules, and updates them continuously. The paper also describes a dynamic deployment mechanism that repositions honeypots according to changes in network topology, ensuring coverage of the most vulnerable segments while limiting impact on production traffic through selective port monitoring and traffic sampling.

The third pillar is a distributed data‑aggregation and Complex Event Processing (CEP) framework. Industrial plants consist of heterogeneous devices and protocols (Modbus, OPC‑UA, PROFINET, etc.), making a single central tap impractical. The authors propose lightweight sensors placed in each subnet that perform local time‑series anomaly detection (e.g., ARIMA, LSTM) on captured traffic. Detected anomalies are compressed into flow records and forwarded via a Mobile Ad‑hoc Network (MANET) to a higher‑level aggregation server. This approach avoids saturating the wired production network, preserves packet latency, and respects the strict availability requirements of industrial control systems. At the aggregation point, a CEP engine correlates events from multiple sources, enabling detection of complex, multi‑stage attacks that would be invisible to isolated monitors.

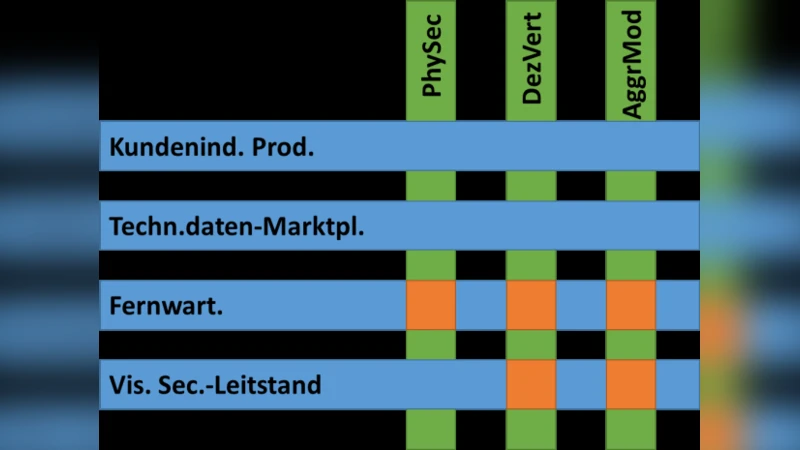

The fourth part of the paper maps these three security primitives onto the four IUNO use cases, illustrating how they can be combined in a modular fashion. For customer‑specific production, RFID and sensor data are encrypted with PLS‑derived keys, while honeypots detect unauthorized access to the production line, and the aggregated logs are visualized on a real‑time dashboard. The technology‑data marketplace uses blockchain‑based licensing to control data usage; any illicit attempts to copy data trigger honeypot alerts. Remote maintenance relies on a cloud‑based authentication and key‑management service, with on‑site sensors establishing a secure tunnel via PLS. Finally, the visual security dashboard consumes CEP‑processed events to present operators with an intuitive overview of network health and risk levels.

Overall, the paper delivers a comprehensive, prototype‑driven framework that integrates physical‑layer cryptography, deceptive defense, and distributed CEP‑based anomaly detection to meet the stringent availability, latency, and cost constraints of industrial environments. It emphasizes modularity and standard interfaces so that SMEs can retrofit existing equipment with advanced security capabilities without extensive redesign. The authors identify future work in large‑scale field trials, continuous learning of the ML models, and alignment with emerging international standards for industrial cybersecurity.
