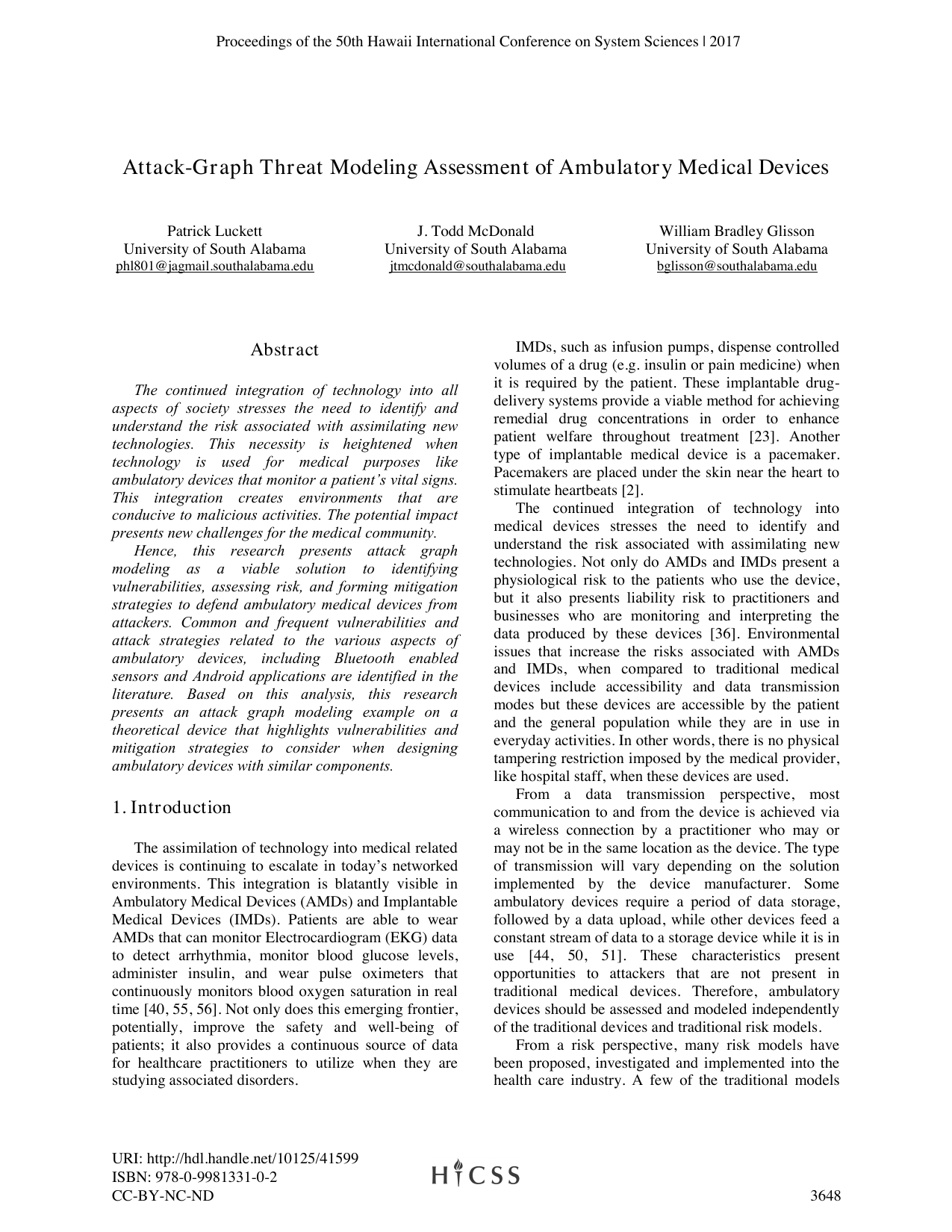

Attack-Graph Threat Modeling Assessment of Ambulatory Medical Devices

Patrick Luckett University of South Alabama phl801@jagmail.southalabama.edu

J. Todd McDonald University of South Alabama jtmcdonald@southalabama.edu
William Bradley Glisson University of South Alabama bglisson@southalabama.edu

Abstract

The continued integration of technology into all aspects of society stresses the need to identify and understand the risk associated with assimilating new technologies. This necessity is heightened when technology is used for medical purposes like ambulatory devices that monitor a patient’s vital signs. This integration creates environments that are conducive to malicious activities. The potential impact presents new challenges for the medical community. Hence, this research presents attack graph modeling as a viable solution to identifying vulnerabilities, assessing risk, and forming mitigation strategies to defend ambulatory medical devices from attackers. Common and frequent vulnerabilities and attack strategies related to the various aspects of ambulatory devices, including Bluetooth enabled sensors and Android applications are identified in the literature. Based on this analysis, this research presents an attack graph modeling example on a theoretical device that highlights vulnerabilities and mitigation strategies to consider when designing ambulatory devices with similar components.

1. Introduction

The assimilation of technology into medical related devices is continuing to escalate in today’s networked environments. This integration is blatantly visible in Ambulatory Medical Devices (AMDs) and Implantable Medical Devices (IMDs). Patients are able to wear AMDs that can monitor Electrocardiogram (EKG) data to detect arrhythmia, monitor blood glucose levels, administer insulin, and wear pulse oximeters that continuously monitors blood oxygen saturation in real time [40, 55, 56]. Not only does this emerging frontier, potentially, improve the safety and well-being of patients; it also provides a continuous source of data for healthcare practitioners to utilize when they are studying associated disorders. IMDs, such as infusion pumps, dispense controlled volumes of a drug (e.g. insulin or pain medicine) when it is required by the patient. These implantable drug- delivery systems provide a viable method for achieving remedial drug concentrations in order to enhance patient welfare throughout treatment [23]. Another type of implantable medical device is a pacemaker. Pacemakers are placed under the skin near the heart to stimulate heartbeats [2]. The continued integration of technology into medical devices stresses the need to identify and understand the risk associated with assimilating new technologies. Not only do AMDs and IMDs present a physiological risk to the patients who use the device, but it also presents liability risk to practitioners and businesses who are monitoring and interpreting the data produced by these devices [36]. Environmental issues that increase the risks associated with AMDs and IMDs, when compared to traditional medical devices include accessibility and data transmission modes but these devices are accessible by the patient and the general population while they are in use in everyday activities. In other words, there is no physical tampering restriction imposed by the medical provider, like hospital staff, when these devices are used.
From a data transmission perspective, most communication to and from the device is achieved via a wireless connection by a practitioner who may or may not be in the same location as the device. The type of transmission will vary depending on the solution implemented by the device manufacturer. Some ambulatory devices require a period of data storage, followed by a data upload, while other devices feed a constant stream of data to a storage device while it is in use [44, 50, 51]. These characteristics present opportunities to attackers that are not present in traditional medical devices. Therefore, ambulatory devices should be assessed and modeled independently of the traditional devices and traditional risk models.
From a risk perspective, many risk models have been proposed, investigated and implemented into the health care industry. A few of the traditional models 3648 Proceedings of the 50th Hawaii International Conference on System Sciences | 2017 URI: http://hdl.handle.net/10125/41599 ISBN: 978-0-9981331-0-2 CC-BY-NC-ND

that are commonly discussed include: Failure Mode and Effect Analysis (FMEA) [4], A Risk Management Capability Model for Use in Medical Device Companies [46], and CORAS [43]. However, these models fail to provide concise insight into AMD susceptibility.
The reality is that coupling environmental variable with multiple impact targets creates environments for AMDs and IMDs that entice plausible malic
