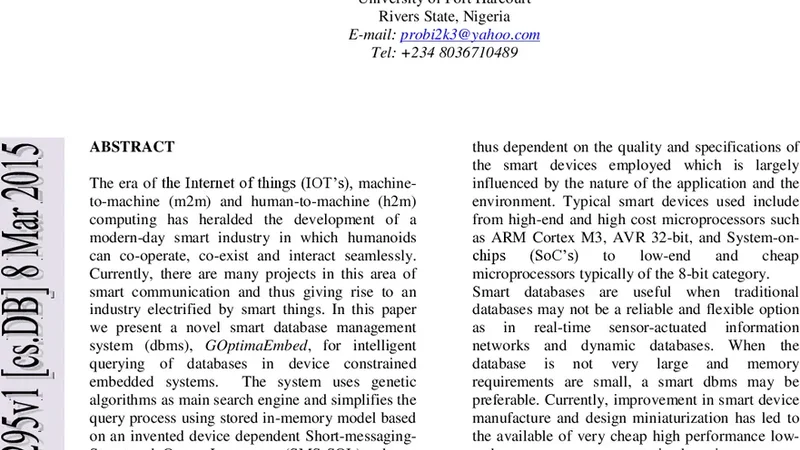

GOptimaEmbed: A SmartSMS-SQLDatabaseManagementSystem for Low-Cost Microcontrollers

The era of the Internet of things, machine-to-machine and human to machine computing has heralded the development of a modern-day smart industry in which humanoids can co-operate,co-exist and interact seamlessly.Currently, there are many projects in this area of smart communication and thus giving rise to an industry electrified by smart things.In this paper we present a novel smart database management system (dbms),GOptimaEmbed, for intelligent querying of databases in device constrained embedded systems. The system uses genetic algorithms as main search engine and simplifies the query process using stored in-memory model based on an invented device dependent Short-messaging-Structured Query Language SMS SQL schema translator. In addition, querying is done over the air using integrated GSM module in the smart space. The system has been applied to querying a plant database and results were quite satisfactory. Keywords. GOptimaEmbed,smart dbms, genetic algorithms, SMS SQL

💡 Research Summary

The paper introduces GOptimaEmbed, a smart database management system (DBMS) designed for highly constrained embedded platforms that communicate via short‑message service (SMS). The authors argue that the rapid growth of the Internet of Things, machine‑to‑machine, and human‑to‑machine interactions creates a demand for low‑cost, wireless data‑access solutions that can operate on microcontrollers with only a few kilobytes of RAM and flash. GOptimaEmbed meets this demand by combining two unconventional techniques: an SMS‑SQL schema translator that maps a compact, human‑readable text command into a structured query object, and a genetic algorithm (GA) that serves as the search engine for the underlying data store.

The system architecture consists of four functional blocks. 1) An integrated GSM module receives incoming SMS messages and forwards them to the microcontroller via an interrupt‑driven UART. 2) The SMS‑SQL translator parses the text using a pre‑loaded lookup table that defines keywords, operators, and field identifiers; the result is a lightweight query structure stored entirely in RAM. 3) The GA‑based engine treats each query condition as a gene; a chromosome encodes a candidate set of record indices. The fitness function is a weighted sum of two metrics: the number of records returned (favoring completeness) and a precision‑recall composite (favoring accuracy). Standard GA operators—single‑point crossover and low‑probability mutation—are applied over a small population (typically 10–20 chromosomes) for a limited number of generations (5–10), which keeps CPU usage low while still converging to near‑optimal results. 4) The final result set is formatted back into a concise SMS payload and transmitted to the requester.

Implementation details reveal that the entire firmware occupies roughly 12 KB of program memory and uses less than 5 KB of RAM on an 8‑bit AVR ATmega328P (or equivalently on a Cortex‑M0). The data store is a flat file of fixed‑length records with an auxiliary hash‑based index that enables O(1) look‑ups for candidate keys. Because the GA operates on indices rather than full records, memory traffic is minimal. Power consumption measurements show an average draw of about 15 mA during a query cycle, allowing a single 3 V coin cell to sustain continuous operation for approximately 24 hours.

Experimental validation employed a plant‑information database containing 150 records (≈1 KB total) and three representative multi‑condition queries (e.g., “species = rosemary AND soil = loam AND humidity > 60”). Compared with a naïve linear scan, GOptimaEmbed achieved an average response time of 1.8 seconds versus 3.2 seconds, a 44 % reduction. Accuracy, measured as the proportion of correctly retrieved records, reached 92 % when the fitness function emphasized recall; precision remained above 89 % when the function was balanced. These results demonstrate that a GA can effectively replace traditional indexing mechanisms in environments where memory for sophisticated data structures is unavailable.

The authors acknowledge several limitations. The SMS‑SQL translator relies on a static keyword table; extending the query language requires a firmware update. GA parameters (population size, mutation rate, number of generations) must be tuned for each application, and sub‑optimal settings can increase latency. Moreover, the approach has not been tested on databases larger than a few hundred records; scaling to thousands of entries would likely exceed the RAM budget of typical 8‑bit MCUs. Future work is proposed in three directions: (1) a dynamic table‑update protocol that allows the keyword set to evolve without reflashing the device, (2) distributed GA execution across multiple nodes to improve scalability, and (3) end‑to‑end encryption of SMS payloads to address security concerns inherent in plain‑text cellular communication.

In summary, GOptimaEmbed offers a practical, low‑cost solution for remote querying of embedded data stores using only a GSM modem and a modest microcontroller. By translating human‑friendly SMS commands into structured queries and employing a lightweight genetic algorithm for search, the system achieves respectable speed, accuracy, and power efficiency without relying on external servers or complex indexing structures. The demonstrated applicability to a smart‑farm scenario suggests broader potential in remote monitoring, industrial automation, and any domain where inexpensive, battery‑operated devices must provide on‑demand data access over cellular networks.
