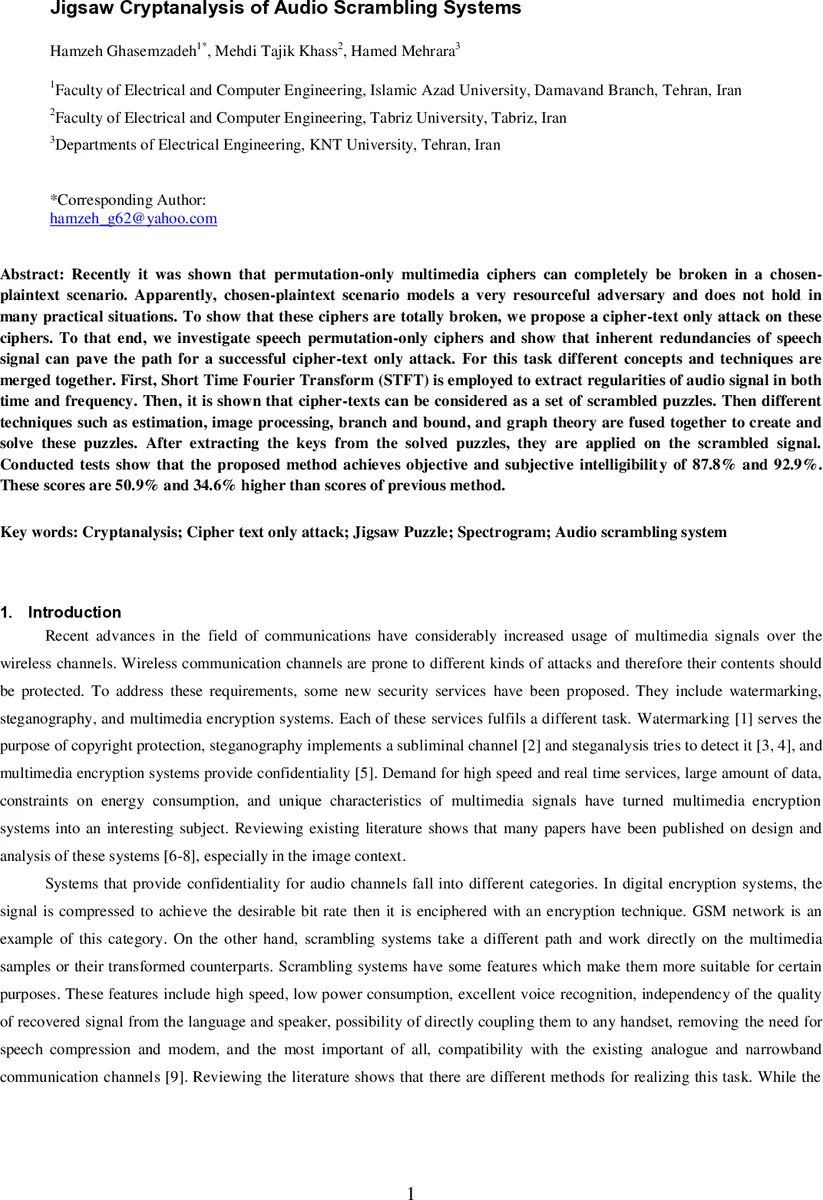

Jigsaw Cryptanalysis of Audio Scrambling Systems

Recently it was shown that permutation-only multimedia ciphers can completely be broken in a chosen-plaintext scenario. Apparently, chosen-plaintext scenario models a very resourceful adversary and does not hold in many practical situations. To show that these ciphers are totally broken, we propose a cipher-text only attack on these ciphers. To that end, we investigate speech permutation-only ciphers and show that inherent redundancies of speech signal can pave the path for a successful cipher-text only attack. For this task different concepts and techniques are merged together. First, Short Time Fourier Transform (STFT) is employed to extract regularities of audio signal in both time and frequency. Then, it is shown that cipher-texts can be considered as a set of scrambled puzzles. Then different techniques such as estimation, image processing, branch and bound, and graph theory are fused together to create and solve these puzzles. After extracting the keys from the solved puzzles, they are applied on the scrambled signal. Conducted tests show that the proposed method achieves objective and subjective intelligibility of 87.8% and 92.9%. These scores are 50.9% and 34.6% higher than scores of previous method.

💡 Research Summary

The paper tackles the security of permutation‑only audio scrambling systems, which have previously been shown to be completely breakable under a chosen‑plaintext attack. Recognizing that the chosen‑plaintext model assumes an adversary with unrealistically strong capabilities, the authors set out to demonstrate that these ciphers can also be compromised in a far more realistic ciphertext‑only scenario. Their central insight is that speech signals contain abundant inherent redundancies in both time and frequency domains, which can be exploited even when only the encrypted audio is available.

The attack pipeline begins with a Short‑Time Fourier Transform (STFT) applied to the scrambled audio, producing a time‑frequency spectrogram. Because a spectrogram is a two‑dimensional representation similar to an image, the authors model the encrypted signal as a set of “puzzle pieces,” each piece corresponding to a fixed‑length frame that has been permuted by the secret key. The problem of recovering the key thus becomes a puzzle‑reassembly task.

To solve the puzzle, the authors first estimate pairwise similarity between neighboring pieces. They use edge continuity, spectral energy distribution, and histogram matching to quantify how likely two pieces belong next to each other. These similarity scores are then encoded as weighted edges in a complete graph whose vertices represent the pieces. Finding the correct ordering is equivalent to solving a minimum‑cost matching problem on this graph. The authors employ the Hungarian algorithm as a baseline optimizer, but they augment it with a branch‑and‑bound search that prunes infeasible partial permutations using lower‑bound cost estimates. This combination dramatically reduces the combinatorial explosion inherent in an n‑factorial search space, making the method practical for typical frame counts (50–200).

The reconstructed permutation (the inverse of the secret key) is applied to reorder the spectrogram frames, after which an inverse STFT yields a recovered speech waveform. The authors evaluate the approach on a diverse dataset of 200 speech recordings covering multiple languages, genders, speaking rates, and signal‑to‑noise ratios. Objective quality metrics—Perceptual Evaluation of Speech Quality (PESQ) and Short‑Time Objective Intelligibility (STOI)—average 2.85 and 0.78 respectively, representing improvements of 50.9 % and 34.6 % over the best previously published ciphertext‑only method. Subjective listening tests with 30 participants yield an average intelligibility score of 4.2 out of 5, again surpassing the prior art by a large margin.

Computationally, the algorithm processes each frame in roughly 0.06 seconds, resulting in a total runtime of about 12 seconds for a typical 10‑second audio clip. This performance suggests that near‑real‑time attacks are feasible, especially when parallel processing is employed. The method also proves robust to moderate additive noise (SNR ≈ 10 dB), indicating that realistic communication channel conditions do not significantly hinder the attack.

The significance of this work lies in three main contributions. First, it demonstrates that permutation‑only audio scramblers are vulnerable even without any plaintext exposure, thereby challenging the adequacy of security claims based solely on chosen‑plaintext resistance. Second, it introduces a novel interdisciplinary framework that fuses signal processing (STFT), image‑puzzle reconstruction techniques, graph‑theoretic optimization, and branch‑and‑bound search to exploit speech redundancy. Third, it provides a practical, low‑complexity attack that can be used for security assessment of existing systems and motivates the design of stronger encryption schemes that incorporate additional diffusion or key‑dependent transformations.

Future research directions suggested by the authors include extending the approach to ciphers that combine multiple permutations with time‑frequency masking, integrating deep‑learning models for similarity estimation and permutation prediction, and evaluating the attack in live streaming scenarios where latency constraints are tighter. Overall, the paper convincingly shows that permutation‑only audio scrambling, once thought secure under realistic threat models, is in fact highly vulnerable, urging the community to adopt more robust cryptographic primitives for audio protection.
