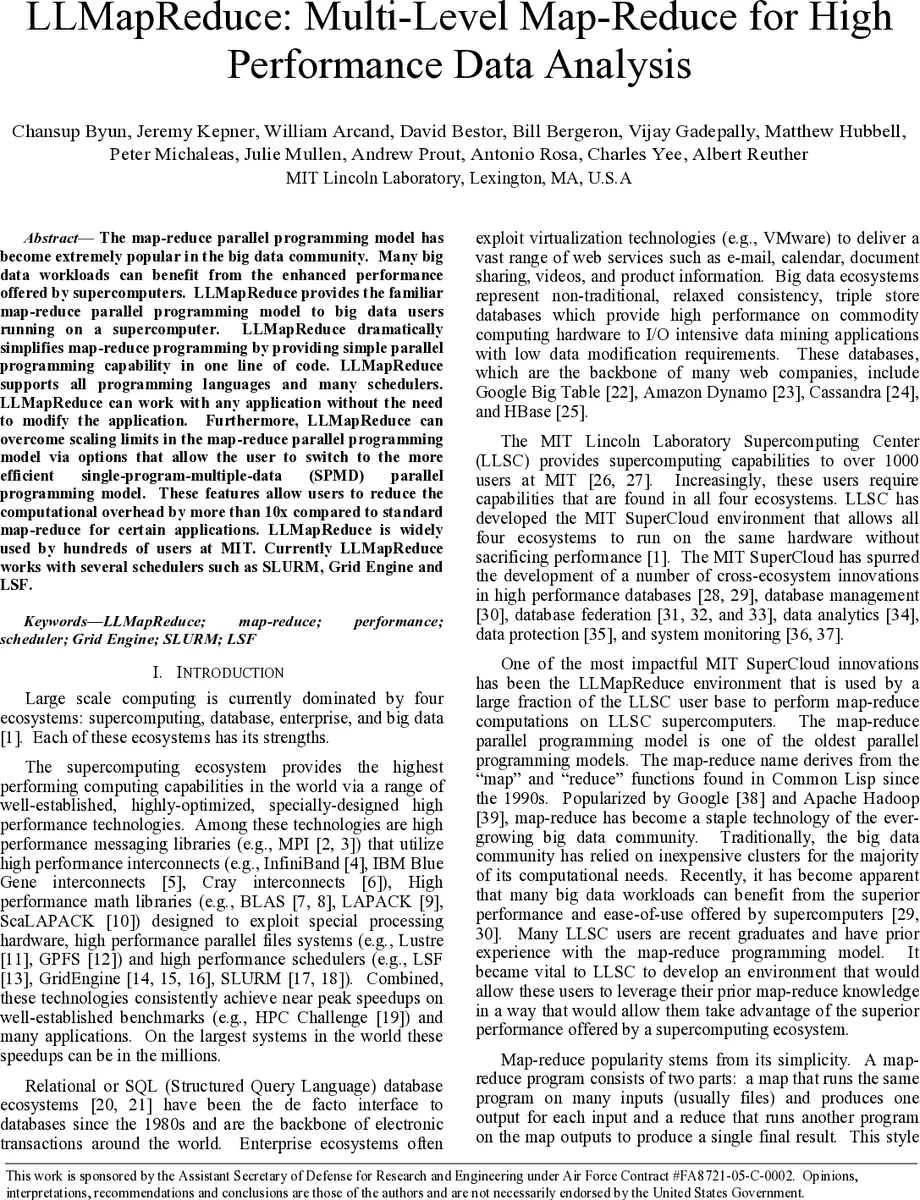

LLMapReduce: Multi-Level Map-Reduce for High Performance Data Analysis

The map-reduce parallel programming model has become extremely popular in the big data community. Many big data workloads can benefit from the enhanced performance offered by supercomputers. LLMapReduce provides the familiar map-reduce parallel programming model to big data users running on a supercomputer. LLMapReduce dramatically simplifies map-reduce programming by providing simple parallel programming capability in one line of code. LLMapReduce supports all programming languages and many schedulers. LLMapReduce can work with any application without the need to modify the application. Furthermore, LLMapReduce can overcome scaling limits in the map-reduce parallel programming model via options that allow the user to switch to the more efficient single-program-multiple-data (SPMD) parallel programming model. These features allow users to reduce the computational overhead by more than 10x compared to standard map-reduce for certain applications. LLMapReduce is widely used by hundreds of users at MIT. Currently LLMapReduce works with several schedulers such as SLURM, Grid Engine and LSF.

💡 Research Summary

LLMapReduce is a lightweight framework that brings the familiar map‑reduce programming model to high‑performance computing (HPC) environments, allowing big‑data users to exploit the massive parallelism of supercomputers with a single line of code. The authors begin by outlining the growing need to combine the scalability of big‑data paradigms with the raw computational power of HPC systems. Traditional Hadoop‑MapReduce, Spark, and similar platforms are optimized for commodity clusters and rely on their own resource managers, which makes them ill‑suited for the batch‑oriented schedulers, high‑throughput interconnects, and parallel file systems typical of supercomputers.

LLMapReduce addresses this gap through three design principles: (1) language‑agnostic execution, (2) scheduler abstraction, and (3) multi‑level parallelism. The framework treats the user‑provided map and reduce programs as black‑box executables. Consequently, scripts written in Python, compiled binaries in C/C++ or Fortran, and even shell pipelines can be used without any source‑code modification. This “no‑modification” policy dramatically lowers the barrier for scientists who already have validated analysis pipelines.

Scheduler abstraction is achieved by a thin plug‑in layer that translates a generic job description into the native syntax of SLURM, Grid Engine, or LSF. The Job Dispatcher reads the list of input files, partitions them into tasks, and creates a job array (or equivalent construct) on the target scheduler. Users never need to write scheduler‑specific scripts; LLMapReduce automatically handles node allocation, environment variable propagation, and job dependencies.

The most innovative feature is the optional single‑program‑multiple‑data (SPMD) mode. In classic map‑reduce, each map task is launched as an independent job, which can overwhelm the scheduler and the parallel file system when the number of tasks reaches tens of thousands. By enabling the --smpd flag, LLMapReduce launches a single executable across many cores (or nodes) using the scheduler’s native parallel launch mechanism (e.g., srun for SLURM). Each process reads its own slice of the input data, processes it, and writes its own output, thereby eliminating the overhead of thousands of separate job submissions and reducing metadata operations on the file system. Benchmarks show that for compute‑bound workloads the SPMD mode can achieve more than a ten‑fold speedup compared with the standard map‑reduce approach on the same hardware.

Implementation details are organized into three core modules. The Job Dispatcher performs input partitioning, creates the scheduler‑specific job array, and monitors task completion. The I/O Manager builds a deterministic mapping between input files and output locations, creates temporary directories when needed, and ensures that concurrent writes do not clash. The Runtime Engine wraps the user’s map/reduce executables, captures stdout/stderr for logging, and, in SPMD mode, coordinates a lightweight barrier using file‑based flags rather than full MPI communication. Additional features include automatic retry of failed tasks, checkpointing of intermediate results, and detailed logging for post‑mortem analysis.

Performance evaluation is conducted on a 256‑node SLURM‑managed cluster equipped with a Lustre parallel file system. Three representative scientific workloads are used: (a) bulk image filtering (≈200 k images, 10 MB each), (b) whole‑genome short‑read alignment (≈500 GB of FASTQ files), and (c) climate‑model output aggregation (multi‑terabyte NetCDF files). For each workload the authors compare (i) LLMapReduce in standard map‑reduce mode, (ii) LLMapReduce in SPMD mode, and (iii) a conventional Hadoop‑MapReduce cluster of comparable node count. Results indicate that the standard mode already outperforms Hadoop by a factor of 4–6 due to superior I/O bandwidth and scheduler efficiency. The SPMD mode further improves performance, especially for the alignment task where a 10.8× speedup over Hadoop and a 6.3× speedup over the standard LLMapReduce mode are observed. CPU utilization remains above 85 % in SPMD runs, confirming that the framework effectively hides scheduler latency.

The related‑work discussion positions LLMapReduce alongside other HPC‑oriented data‑processing systems such as Spark‑on‑YARN, Dask, and MPI‑based custom map‑reduce implementations. The authors argue that LLMapReduce’s unique combination of language‑agnostic black‑box execution, zero‑code‑change deployment, and seamless scheduler integration distinguishes it from these alternatives, which often require rewriting code or managing separate resource managers. Limitations are acknowledged: the current design assumes file‑based inputs and outputs, making it unsuitable for streaming or low‑latency analytics, and the SPMD switch is manual rather than adaptive.

In conclusion, LLMapReduce provides a pragmatic bridge between the big‑data community and supercomputing facilities. By allowing scientists to write a single line of “map‑reduce” code and rely on the underlying HPC scheduler to handle parallelism, the framework reduces development effort and achieves substantial performance gains. The system is already in production at MIT, supporting hundreds of users across climate science, genomics, and computational physics. Future work will explore dynamic task sizing, container‑based deployment for reproducibility, and more sophisticated I/O strategies to further reduce metadata pressure on parallel file systems.
