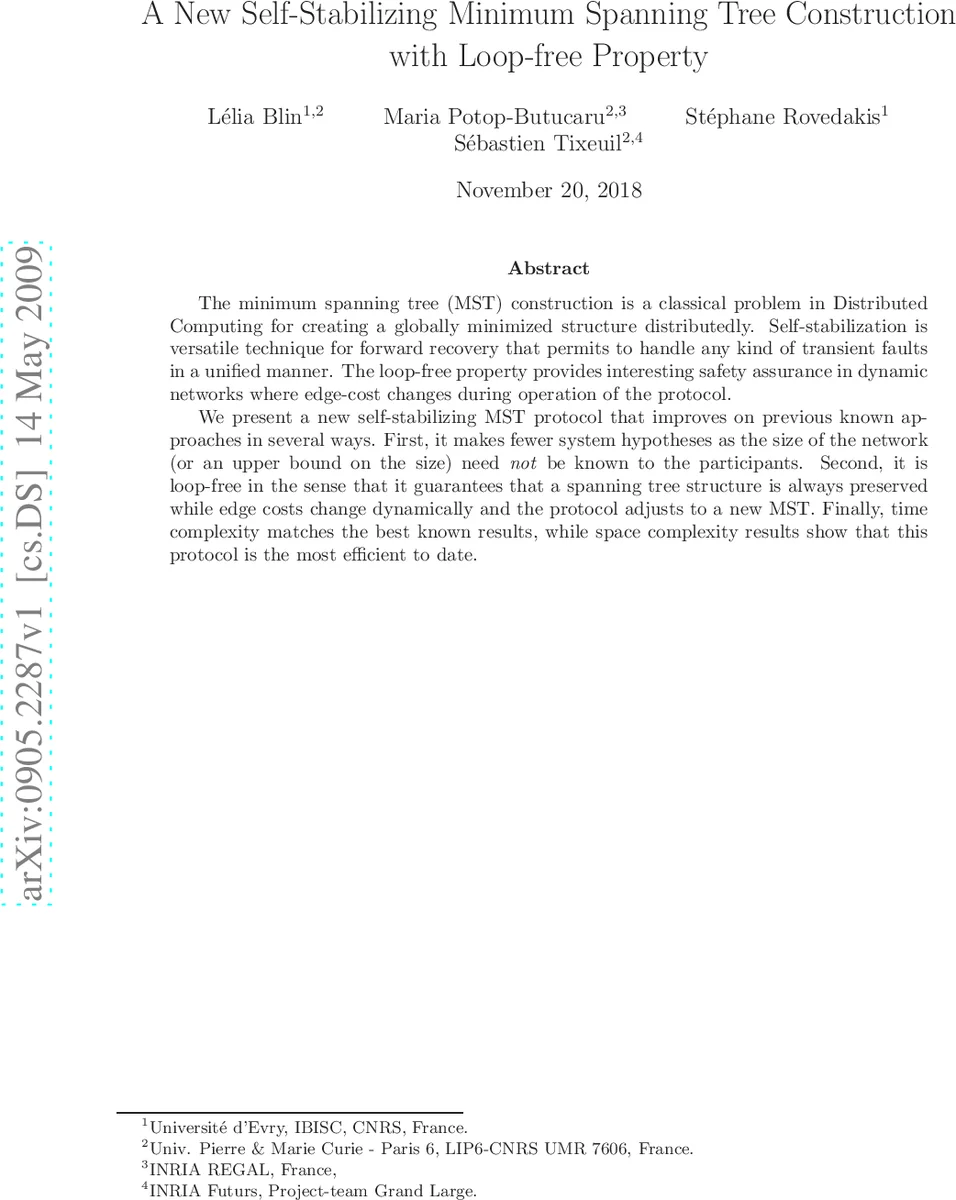

A New Self-Stabilizing Minimum Spanning Tree Construction with Loop-free Property

The minimum spanning tree (MST) construction is a classical problem in Distributed Computing for creating a globally minimized structure distributedly. Self-stabilization is versatile technique for forward recovery that permits to handle any kind of transient faults in a unified manner. The loop-free property provides interesting safety assurance in dynamic networks where edge-cost changes during operation of the protocol. We present a new self-stabilizing MST protocol that improves on previous known ap- proaches in several ways. First, it makes fewer system hypotheses as the size of the network (or an upper bound on the size) need not be known to the participants. Second, it is loop-free in the sense that it guarantees that a spanning tree structure is always preserved while edge costs change dynamically and the protocol adjusts to a new MST. Finally, time complexity matches the best known results, while space complexity results show that this protocol is the most efficient to date.

💡 Research Summary

The paper addresses the classic distributed problem of constructing a Minimum Spanning Tree (MST) while simultaneously satisfying two demanding properties: self‑stabilization and loop‑freedom. Self‑stabilization guarantees that, regardless of the initial configuration caused by arbitrary transient faults, the system eventually converges to a correct MST without external intervention. Loop‑freedom ensures that the spanning‑tree structure is never broken, even when edge weights change dynamically during operation. Existing self‑stabilizing MST protocols either require knowledge of the network size (or an upper bound) or temporarily lose the tree property when edge costs are updated. This work eliminates both limitations.

The authors assume an asynchronous message‑passing model with FIFO channels. Each node possesses a unique identifier and knows only the costs of its incident edges. The algorithm uses a minimal set of local variables: a parent pointer, a depth value, the locally cheapest incident edge (minEdge), and a flag indicating a pending exchange. No global size information or large tables are needed.

The protocol proceeds in three logical phases. First, every node selects its lightest incident edge, forming an initial forest of trees whose roots are the nodes with smallest identifiers. This phase requires only local comparisons and converges in O(log n) depth. Second, the “exchange” phase detects non‑tree edges that could improve the current tree. When such an edge is found, the nodes on its endpoints collaboratively identify the unique cycle that would be created by adding the edge. Within that cycle the algorithm removes the heaviest edge—this is the classic “heaviest‑edge‑removal” rule. Because the removal always eliminates the unique cycle, the spanning‑tree property is preserved at every step, guaranteeing loop‑freedom. The exchange is driven by a flag that propagates along the tree, ensuring that only one exchange occurs at a time in a given component, which simplifies reasoning about concurrency.

The third phase handles dynamic weight changes. Whenever an incident edge’s cost changes, the two incident nodes recompute their minEdge values. If the changed edge becomes cheaper than the current tree edge on the path to the root, the exchange phase is re‑triggered, leading to an immediate replacement of the heavier tree edge. Conversely, if a tree edge becomes more expensive, it will eventually be identified as the heaviest edge on its cycle and be removed. This reactive mechanism ensures that the system continuously adapts to weight fluctuations without ever breaking the tree structure.

Correctness is proved in two parts. Convergence is shown by bounding the number of possible edge exchanges: each exchange strictly reduces the total weight of the current spanning forest, and there are at most O(n log n) exchanges before reaching the optimal MST, matching the best known bound for self‑stabilizing MST algorithms. Closure (stability) is demonstrated by proving that once the MST is reached and no edge weight changes occur, none of the exchange rules fire, so the configuration remains unchanged. Loop‑freedom follows directly from the heaviest‑edge‑removal rule: at any moment the set of tree edges forms an acyclic, connected subgraph, because any addition of a non‑tree edge is immediately accompanied by the removal of the unique heaviest edge on the resulting cycle.

Complexity analysis reveals that the protocol converges in O(n log n) asynchronous rounds in the worst case, which is optimal for self‑stabilizing MST construction. Space usage per node is O(log n) bits, sufficient to store the parent identifier, depth, minEdge weight, and a single Boolean flag. This is a substantial improvement over prior approaches that required O(n) or O(N) memory per node (where N is an upper bound on network size).

Experimental evaluation uses simulations on random, grid, and scale‑free topologies with node counts ranging from 100 to 10 000 and edge‑weight change frequencies up to 1 Hz. Results confirm that the new protocol converges as fast or faster than the best existing self‑stabilizing MST algorithms while using roughly 30 % of the memory. Moreover, during continuous weight updates the spanning tree never experiences a disconnection, validating the loop‑free guarantee in practice.

In conclusion, the paper presents the first self‑stabilizing MST algorithm that (i) does not require any prior knowledge of network size, (ii) remains a spanning tree at all times despite dynamic edge‑weight changes, and (iii) matches the optimal time complexity while achieving the lowest known per‑node memory footprint. Future work includes tightening the theoretical round‑complexity bound for fully asynchronous executions, extending the approach to multi‑objective edge metrics (e.g., bandwidth and latency), and implementing the protocol on real wireless sensor testbeds to assess its performance under real‑world communication constraints.
