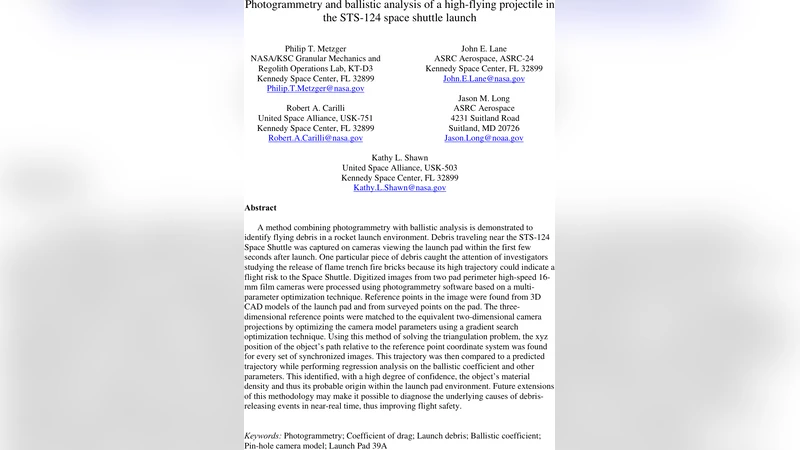

Photogrammetry and ballistic analysis of a high-flying projectile in the STS-124 space shuttle launch

A method combining photogrammetry with ballistic analysis is demonstrated to identify flying debris in a rocket launch environment. Debris traveling near the STS-124 Space Shuttle was captured on cameras viewing the launch pad within the first few seconds after launch. One particular piece of debris caught the attention of investigators studying the release of flame trench fire bricks because its high trajectory could indicate a flight risk to the Space Shuttle. Digitized images from two pad perimeter high-speed 16-mm film cameras were processed using photogrammetry software based on a multi-parameter optimization technique. Reference points in the image were found from 3D CAD models of the launch pad and from surveyed points on the pad. The three-dimensional reference points were matched to the equivalent two-dimensional camera projections by optimizing the camera model parameters using a gradient search optimization technique. Using this method of solving the triangulation problem, the xyz position of the object’s path relative to the reference point coordinate system was found for every set of synchronized images. This trajectory was then compared to a predicted trajectory while performing regression analysis on the ballistic coefficient and other parameters. This identified, with a high degree of confidence, the object’s material density and thus its probable origin within the launch pad environment. Future extensions of this methodology may make it possible to diagnose the underlying causes of debris-releasing events in near-real time, thus improving flight safety.

💡 Research Summary

The paper presents a novel methodology that fuses photogrammetry with ballistic analysis to identify and characterize high‑speed debris generated during the early seconds of the STS‑124 Space Shuttle launch. The authors began by digitizing footage from two perimeter high‑speed 16 mm film cameras that captured the launch pad from different viewpoints. Using a detailed 3‑D CAD model of the launch complex and a set of surveyed ground control points, they extracted dozens of reference features visible in the images. A multi‑parameter optimization, based on gradient‑search techniques, was then applied to simultaneously solve for each camera’s intrinsic parameters (focal length, principal point, radial distortion) and extrinsic parameters (position and orientation). This calibration step ensured that the projection of the 3‑D reference points onto the 2‑D image planes matched the observed pixel locations with sub‑pixel accuracy, effectively compensating for lens distortion and perspective effects.

With calibrated camera models, the authors performed triangulation on the synchronized image pairs for every frame in which the debris was visible. This yielded a time‑stamped three‑dimensional trajectory (x, y, z) of the object from launch (≈0.2 s after liftoff) up to the point where it exited the camera fields of view. The trajectory showed a steep ascent, reaching roughly 30 m altitude while moving laterally, suggesting a launch‑pad‑origin rather than a vehicle‑origin.

The next phase involved fitting the measured trajectory to a physics‑based ballistic model. The model incorporated gravity, a drag term proportional to the square of velocity, and a drag coefficient expressed as the product of the drag coefficient (Cd), reference area (A), and inverse mass (1/m). By performing non‑linear least‑squares regression on the trajectory data, the authors estimated the combined ballistic coefficient (Cd·A/m) and the initial velocity and launch angle. The best‑fit solution indicated an initial speed of about 150 m s⁻¹, a launch angle near 45°, and a ballistic coefficient consistent with a dense, non‑metallic material.

To translate the ballistic coefficient into a material property, the authors used the known geometry of the debris (estimated from image size) to compute its mass and, consequently, its density. The derived density (~2.3 g cm⁻³) matches that of the fire‑brick material used in the flame‑trench lining of the launch pad. This strongly suggests that the observed fragment originated from a fire‑brick that was dislodged during the intense flame‑trench fire.

The paper further evaluates the potential hazard posed by the fragment. By comparing the debris trajectory to the planned shuttle ascent path, the minimum separation distance was found to be about 12 m, indicating a low probability of direct impact. Nevertheless, the unusually high trajectory of a heavy brick fragment raised concerns about debris‑release mechanisms and prompted recommendations for improved pad‑design and monitoring.

Key contributions of the work include: (1) a robust camera‑calibration workflow that leverages CAD models and surveyed points to achieve high‑precision 3‑D reconstruction from legacy film footage; (2) a systematic triangulation pipeline that delivers time‑resolved 3‑D positions of fast‑moving objects; (3) integration of ballistic regression to infer material density directly from trajectory data, enabling forensic identification of debris origin; and (4) demonstration that the combined approach can be extended toward near‑real‑time diagnostics, potentially allowing launch controllers to assess debris risks within seconds of liftoff.

Limitations are acknowledged: the analysis depends on accurate synchronization of the two cameras, the drag model assumes constant atmospheric density and neglects temperature gradients, and rotational dynamics of the fragment were not considered. Future work is proposed to incorporate high‑speed digital cameras, real‑time image processing, and more sophisticated computational fluid dynamics (CFD) drag models that account for varying pressure and temperature fields near the pad.

In summary, the study showcases how photogrammetric reconstruction paired with ballistic fitting can transform raw launch‑pad video into quantitative forensic evidence, offering a powerful tool for improving launch safety not only for the Space Shuttle program but also for modern launch vehicles and other high‑speed aerospace operations.
