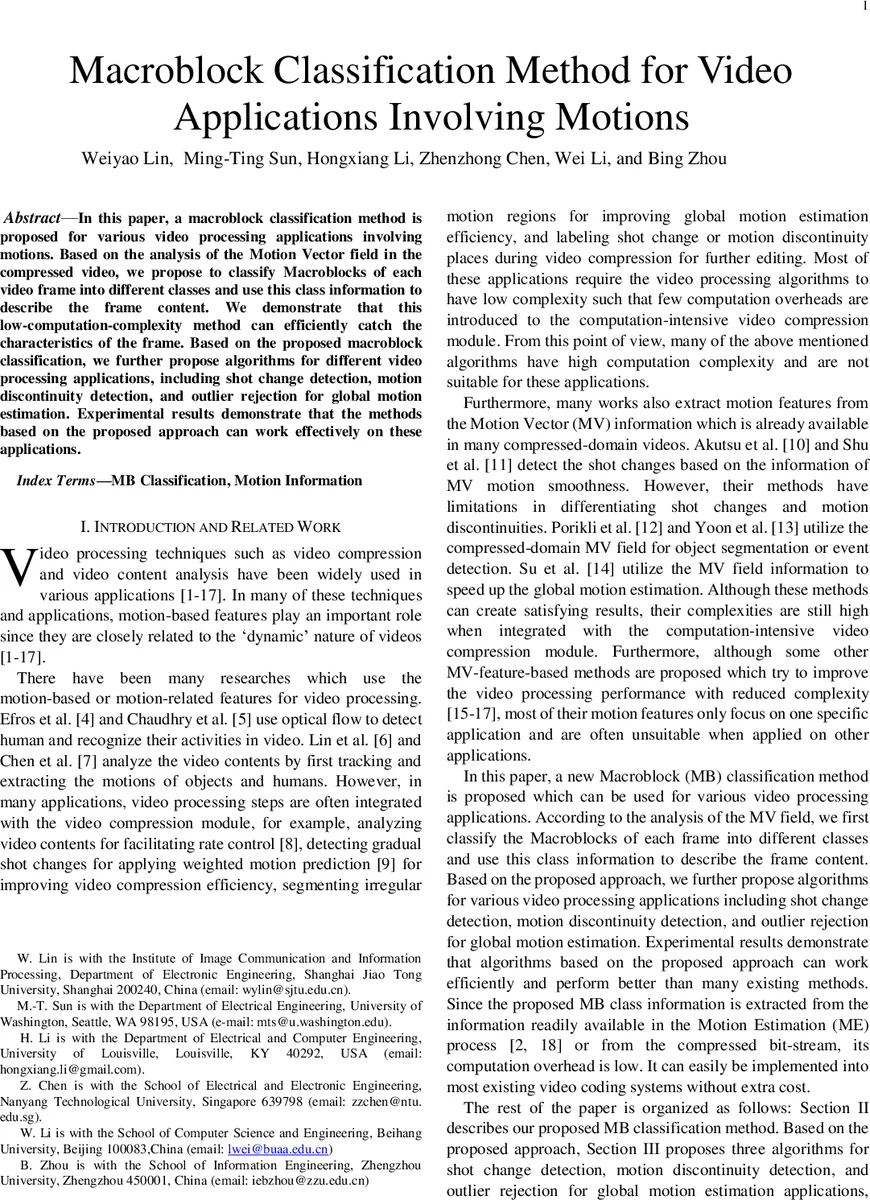

Macroblock Classification Method for Video Applications Involving Motions

In this paper, a macroblock classification method is proposed for various video processing applications involving motions. Based on the analysis of the Motion Vector field in the compressed video, we propose to classify Macroblocks of each video frame into different classes and use this class information to describe the frame content. We demonstrate that this low-computation-complexity method can efficiently catch the characteristics of the frame. Based on the proposed macroblock classification, we further propose algorithms for different video processing applications, including shot change detection, motion discontinuity detection, and outlier rejection for global motion estimation. Experimental results demonstrate that the methods based on the proposed approach can work effectively on these applications.

💡 Research Summary

This paper presents a novel macroblock (MB) classification method designed for low-complexity video processing applications that involve motion analysis. The core idea is to leverage motion information readily available from the standard video compression pipeline, specifically the Motion Estimation (ME) process or the compressed bitstream, to categorize each MB in a video frame into one of three distinct classes.

The classification criteria, as defined in Equation (1) of the paper, utilize features such as the initial matching cost (init_COST), the predictive motion vector (PMV) of the current MB, and the final motion vector (MV_pre_final) of the co-located MB in the previous frame. Based on these, MBs are classified as: Class 1: MBs with low init_COST, indicating high content correlation with the previous frame and smooth, predictable motion (typically background or static areas). Class 2: MBs where the PMV differs significantly from MV_pre_final and init_COST is high, indicating irregular, discontinuous motion that is not predictable from neighbors or previous motion (e.g., object boundaries, sudden camera motion). Class 3: MBs where PMV is close to MV_pre_final but init_COST is high, representing areas with complex texture but motion patterns consistent with the previous frame. The authors demonstrate through examples (e.g., Mobile and Bus sequences) that this classification visually aligns with intuitive scene understanding. An alternative formulation (Equation (2)) using the sum of absolute residuals (SUM_red) is also provided for applications working solely with decoded bitstreams.

The significant contribution of the paper lies in demonstrating the versatility of this simple classification scheme for multiple higher-level video processing tasks. It proposes and develops specific algorithms for three key applications:

1. Shot Change Detection (CB-Shot Algorithm): Exploiting the fact that shot boundaries exhibit low inter-frame correlation. The primary detection feature is a sharp drop in the number of Class 1 MBs. Secondary features like a rise in Class 2 MBs (indicating motion pattern change) and intra-coded MB information are used to improve robustness and handle cases like gradual transitions.
2. Motion Discontinuity Detection: Focuses on identifying boundaries between smooth camera motions (SCMs) within the same shot. Here, a spike in Class 2 MBs (indicating motion unsmoothness) serves as the primary trigger. However, unlike shot changes, the number of Class 1 MBs remains high, confirming sustained content correlation and thus distinguishing motion discontinuities from actual shot cuts.
3. Outlier Rejection for Global Motion Estimation (GME): In GME, local object motions are considered outliers that degrade the estimation of global camera motion. Since Class 2 MBs predominantly correspond to such irregular local motions, the paper proposes simply excluding all Class 2 MBs from the GME computation. This provides a very efficient and effective mechanism for outlier rejection, improving both the accuracy and speed of global motion parameter estimation.

Experimental results validate the effectiveness of the proposed classification-based algorithms across these applications. The paper concludes by emphasizing the generalizability and low-computational-overhead nature of the MB classification method, making it highly suitable for integration into real-time video coding systems and other applications where complexity is a critical constraint. The framework is flexible and can be extended using machine learning techniques for automatic threshold determination or more sophisticated decision models.
