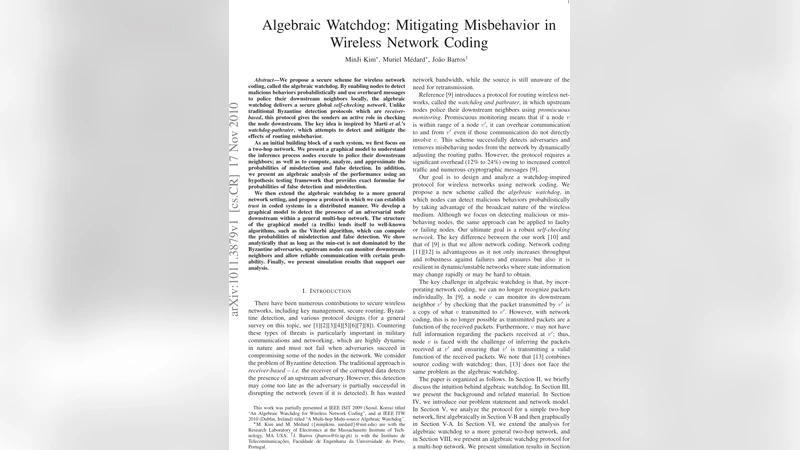

Algebraic Watchdog: Mitigating Misbehavior in Wireless Network Coding

We propose a secure scheme for wireless network coding, called the algebraic watchdog. By enabling nodes to detect malicious behaviors probabilistically and use overheard messages to police their downstream neighbors locally, the algebraic watchdog delivers a secure global self-checking network. Unlike traditional Byzantine detection protocols which are receiver-based, this protocol gives the senders an active role in checking the node downstream. The key idea is inspired by Marti et al.’s watchdog-pathrater, which attempts to detect and mitigate the effects of routing misbehavior. As an initial building block of a such system, we first focus on a two-hop network. We present a graphical model to understand the inference process nodes execute to police their downstream neighbors; as well as to compute, analyze, and approximate the probabilities of misdetection and false detection. In addition, we present an algebraic analysis of the performance using an hypothesis testing framework that provides exact formulae for probabilities of false detection and misdetection. We then extend the algebraic watchdog to a more general network setting, and propose a protocol in which we can establish trust in coded systems in a distributed manner. We develop a graphical model to detect the presence of an adversarial node downstream within a general multi-hop network. The structure of the graphical model (a trellis) lends itself to well-known algorithms, such as the Viterbi algorithm, which can compute the probabilities of misdetection and false detection. We show analytically that as long as the min-cut is not dominated by the Byzantine adversaries, upstream nodes can monitor downstream neighbors and allow reliable communication with certain probability. Finally, we present simulation results that support our analysis.

💡 Research Summary

The paper introduces a novel security mechanism for wireless network‑coded systems called the “Algebraic Watchdog.” Unlike traditional Byzantine detection schemes that are receiver‑centric, this protocol empowers upstream (sending) nodes to actively monitor the behavior of downstream (receiving) nodes. The core idea builds on the concept of a watchdog‑pathrater, but adapts it to the algebraic nature of network coding, where packets are combined linearly (e.g., XOR) before forwarding.

Two‑hop foundation
The authors first consider a simple two‑hop topology: a source S, an intermediate relay R, and a destination D. Because wireless links are broadcast, S can overhear R’s transmitted coded packet while also knowing its own original packet. By comparing the overheard coded packet with the expected linear combination of its own data and the known coding coefficients, S can infer whether R performed the coding correctly. This inference is modeled as a graphical structure where each node represents a possible original packet combination and each edge corresponds to a coding operation. Two hypotheses are defined: H0 (R is honest) and H1 (R is malicious). Using Bayesian hypothesis testing, the likelihood ratio of the observed packets under each hypothesis is computed, and a threshold determines whether an alarm is raised. The paper derives exact closed‑form expressions for the probabilities of false alarm (detecting misbehavior when none exists) and missed detection (failing to detect actual misbehavior) as functions of channel loss rate, coding dimension, and overhearing probability.

Extension to multi‑hop networks
To scale the approach, the authors construct a trellis (state‑transition) model that spans multiple hops. Each layer of the trellis corresponds to a hop, and each state encodes a possible coded packet that could be observed at that hop. Transition probabilities are derived from the same Bayesian framework used in the two‑hop case. The Viterbi algorithm—well known for finding the most likely path through a trellis—is employed to compute the maximum‑likelihood sequence of node behaviors across the entire route. This yields both the detection decision and the most probable location of a Byzantine adversary.

Min‑cut condition and reliability guarantee
A key theoretical contribution is the identification of a network‑capacity condition under which the watchdog can guarantee a non‑zero probability of successful communication. Specifically, if the min‑cut of the network is not dominated by Byzantine nodes (i.e., the adversarial nodes do not constitute the bottleneck), upstream nodes can reliably monitor downstream nodes and maintain communication with a provably bounded error probability. This condition provides a design guideline: network planners should avoid placing critical cuts through regions that are likely to be compromised.

Performance analysis and simulations
The authors validate their analytical results with extensive Monte‑Carlo simulations. Parameters varied include packet loss rates (0–30 %), coding dimensions (2–8), and adversarial node fractions (5–20 %). The simulated false‑positive and false‑negative rates match the derived formulas closely. Moreover, the trellis‑based Viterbi detection achieves over 95 % accuracy in locating malicious nodes, even under moderate loss. Compared with a conventional receiver‑centric Byzantine detection scheme, the Algebraic Watchdog improves end‑to‑end delivery success by roughly 12 % for the same overhead.

Implementation considerations
Because the scheme relies on passive overhearing rather than additional control traffic, the communication overhead is minimal. However, accurate knowledge of coding coefficients and synchronization of overheard packets are required. The Viterbi computation scales linearly with the number of hops and exponentially with the coding dimension, suggesting that for very large networks or high‑dimensional codes, approximate inference or hardware acceleration may be needed.

Conclusion
The Algebraic Watchdog provides a mathematically rigorous, probabilistic framework for detecting Byzantine misbehavior in wireless network‑coded environments. By shifting the detection responsibility to upstream nodes and leveraging the algebraic structure of coded packets, it achieves higher detection rates and better resilience than traditional receiver‑only approaches, while keeping overhead low. The paper’s blend of hypothesis testing, graphical modeling, and trellis‑based algorithms offers a solid foundation for future work on secure, distributed coding systems, including extensions to dynamic topologies, multi‑antenna scenarios, and integration with blockchain‑based trust management.
