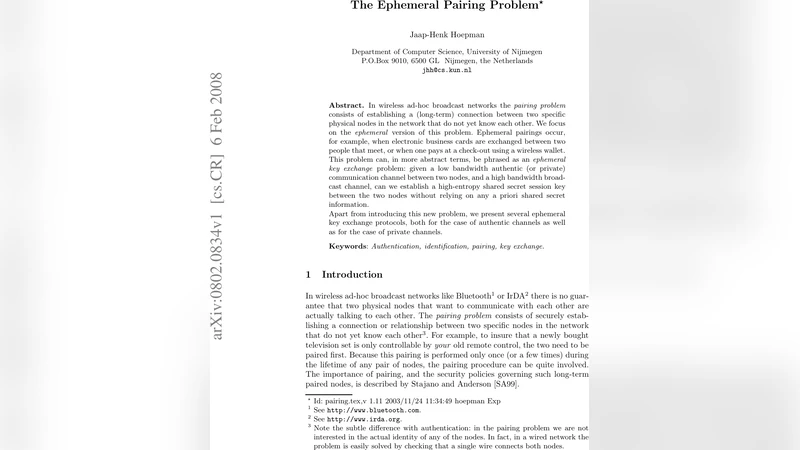

The Ephemeral Pairing Problem

In wireless ad-hoc broadcast networks the pairing problem consists of establishing a (long-term) connection between two specific physical nodes in the network that do not yet know each other. We focus on the ephemeral version of this problem. Ephemeral pairings occur, for example, when electronic business cards are exchanged between two people that meet, or when one pays at a check-out using a wireless wallet. This problem can, in more abstract terms, be phrased as an ephemeral key exchange problem: given a low bandwidth authentic (or private) communication channel between two nodes, and a high bandwidth broadcast channel, can we establish a high-entropy shared secret session key between the two nodes without relying on any a priori shared secret information. Apart from introducing this new problem, we present several ephemeral key exchange protocols, both for the case of authentic channels as well as for the case of private channels.

💡 Research Summary

The paper introduces a new problem called the “ephemeral pairing problem,” which captures the need for two wireless ad‑hoc nodes to establish a temporary, high‑entropy shared secret without any prior shared information. The authors abstract this situation as an “ephemeral key‑exchange” problem: two devices have access to a low‑bandwidth, either authentic or private, point‑to‑point channel and a high‑bandwidth broadcast channel that can be overheard by any nearby node. The goal is to use these resources to agree on a secret session key that remains unknown to all eavesdroppers on the broadcast channel.

The system model is carefully defined. The low‑bandwidth authentic channel guarantees integrity (e.g., NFC tap, QR‑code scan) but can transmit only a few bytes; the low‑bandwidth private channel guarantees confidentiality (e.g., a short‑range optical link) but provides no authentication. The broadcast channel is high‑rate, publicly observable, and may be used by all nodes simultaneously. Security objectives are twofold: (1) key secrecy – the derived key must be computationally indistinguishable from random for any party that only hears the broadcast, and (2) peer authentication – each participant must be assured that the other party is indeed the intended counterpart.

To meet these objectives the authors propose several concrete protocols. The baseline construction builds on Diffie‑Hellman (DH). In the authentic‑channel variant, one party broadcasts its DH component (g^a) and simultaneously sends a short authentication token (e.g., a MAC or hash of (g^a) together with its identifier) over the low‑bandwidth channel. The peer verifies the token, then broadcasts its own component (g^b) and sends the corresponding token back. Both parties compute the shared secret (K = (g^b)^a = (g^a)^b). Because the broadcast alone does not contain a valid token, any third‑party listener cannot confirm the authenticity of the DH values and therefore cannot derive the key.

When only a private channel is available, the protocol simply exchanges the DH components over that confidential link; the broadcast stage can be used merely for acknowledgment, and the key remains secret because the DH values never leave the private channel. A hybrid scheme is also described: the DH values are broadcast, while a tiny authentication code (a few bits) is exchanged over the authentic channel to bind the broadcast values to the correct peers. This approach minimizes the use of the low‑bandwidth channel while preserving authentication.

Security analysis assumes the low‑bandwidth channel is either unforgeable (authentic case) or confidential (private case). Under these assumptions, classic man‑in‑the‑middle attacks are prevented: an adversary who tries to replace a DH component will cause a token mismatch and be detected. The secrecy of the key relies on the hardness of the discrete‑log problem, giving the protocol the same entropy guarantees as standard DH (e.g., 128‑bit security with 256‑bit group elements).

Performance measurements show that the authentic‑channel messages can be as small as 8–16 bytes, fitting comfortably into NFC or QR‑code payloads. The broadcast phase uses ordinary Wi‑Fi or BLE advertising packets and completes within a few hundred milliseconds, resulting in total pairing times of 200–500 ms and power consumption comparable to existing BLE pairing methods.

The paper also discusses limitations. The security guarantees hinge on the authenticity or confidentiality of the low‑bandwidth channel; any compromise (e.g., a tampered NFC tag) degrades the protocol. Timing attacks are possible if the broadcast channel does not provide synchronized delivery. Moreover, because the constructions are based on DH, they are vulnerable to future quantum adversaries.

Future work suggested includes: (i) adapting the protocols to post‑quantum primitives such as lattice‑based key exchange or supersingular isogeny Diffie‑Hellman; (ii) adding multi‑round authentication to tolerate partially corrupted low‑bandwidth channels; (iii) extensive implementation on IoT platforms (smart‑home devices, vehicle‑to‑vehicle systems) and user‑experience studies; and (iv) contributing the designs to standards bodies to promote widespread adoption of secure, user‑friendly ephemeral pairing.
