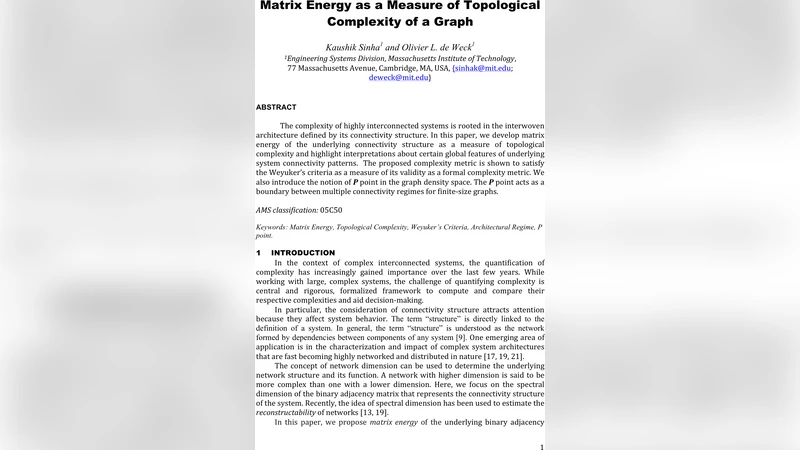

Matrix Energy as a Measure of Topological Complexity of a Graph

The complexity of highly interconnected systems is rooted in the interwoven architecture defined by its connectivity structure. In this paper, we develop matrix energy of the underlying connectivity structure as a measure of topological complexity and highlight interpretations about certain global features of underlying system connectivity patterns. The proposed complexity metric is shown to satisfy the Weyuker criteria as a measure of its validity as a formal complexity metric. We also introduce the notion of P point in the graph density space. The P point acts as a boundary between multiple connectivity regimes for finite-size graphs.

💡 Research Summary

The paper introduces matrix energy—defined as the sum of the absolute eigenvalues (or equivalently the singular values) of a graph’s adjacency matrix—as a novel quantitative measure of topological complexity. After reviewing the historical use of matrix energy in chemical graph theory, the authors argue that this spectral quantity captures the overall interconnectivity of any network, ranging from sparse to fully connected structures. They derive theoretical bounds using McClelland’s inequality, showing that the energy of a complete graph Kₙ reaches the maximum value n·(n‑1) while an empty graph yields zero, and they prove that matrix energy grows monotonically with graph density.

To validate matrix energy as a formal complexity metric, the authors systematically test it against the nine Weyuker criteria traditionally employed in software complexity assessment. They demonstrate non‑equivalence for distinct topologies, invariance under isomorphism, monotonic increase with the addition of nodes or edges, non‑linearity under graph composition, sensitivity to random rewiring, reproducibility, independence from other common graph metrics (e.g., clustering coefficient, average path length), high variability for small parameter changes, and computational feasibility (O(n³) eigenvalue computation).

A central contribution is the definition of a “P‑point” in the density‑energy plane. The P‑point is the critical density dₚ at which matrix energy equals the number of edges (Eₘ ≈ |E|). This point partitions the space into three regimes: (1) a low‑density regime where energy scales roughly linearly with edge count and structural diversity is high; (2) a transition regime around dₚ where a small change in connectivity triggers a sharp increase in energy, indicating a rapid rise in complexity; and (3) a high‑density regime where energy saturates and additional edges have diminishing impact on complexity. Empirical studies on Erdős‑Rényi, Watts‑Strogatz, and Barabási‑Albert models reveal that dₚ follows an approximate log‑linear relationship with graph size (dₚ ≈ c·log n / n), making the transition most pronounced in finite‑size networks.

The authors illustrate practical implications: maintaining a system below the P‑point can preserve flexibility and fault tolerance, while operating above it may enhance stability at the cost of reduced adaptability. They suggest that matrix energy and the P‑point can guide design decisions in power grids, communication infrastructures, and other engineered networks.

In summary, the paper establishes matrix energy as a robust, theoretically grounded measure of topological complexity that satisfies established complexity criteria. The introduction of the P‑point provides a clear, quantitative boundary between distinct connectivity regimes, offering both analytical insight and actionable guidance for the design and analysis of complex networks. Future work is proposed on extending the framework to directed, weighted, and multilayer graphs, as well as on dynamic evolution of matrix energy in time‑varying systems.
