Empirical analysis and simulation of the evolution concavity of traffic oscillations

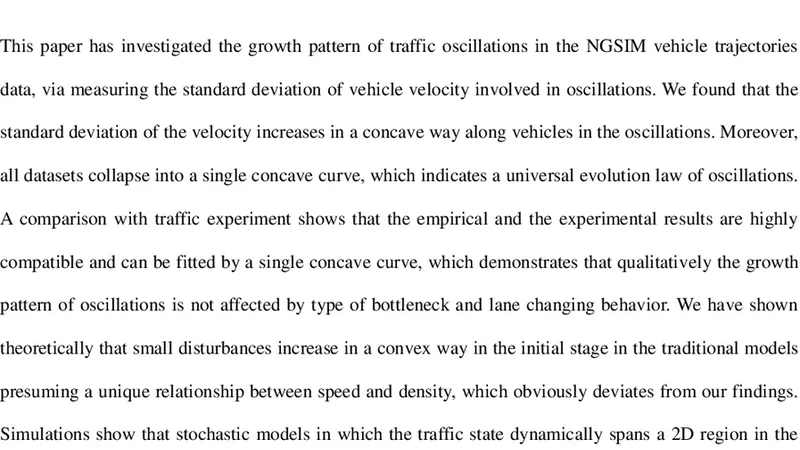

This paper has investigated the growth pattern of traffic oscillations in the NGSIM vehicle trajectories data, via measuring the standard deviation of vehicle velocity involved in oscillations. We found that the standard deviation of the velocity increases in a concave way along vehicles in the oscillations. Moreover, all datasets collapse into a single concave curve, which indicates a universal evolution law of oscillations. A comparison with traffic experiment shows that the empirical and the experimental results are highly compatible and can be fitted by a single concave curve, which demonstrates that qualitatively the growth pattern of oscillations is not affected by type of bottleneck and lane changing behavior. We have shown theoretically that small disturbances increase in a convex way in the initial stage in the traditional models presuming a unique relationship between speed and density, which obviously deviates from our findings. Simulations show that stochastic models in which the traffic state dynamically spans a 2D region in the speed-spacing plane can qualitatively or even quantitatively reproduce the concave growth pattern of traffic oscillations.

💡 Research Summary

This paper investigates how traffic oscillations grow along a platoon of vehicles using the high‑resolution NGSIM trajectory data. By identifying oscillation episodes and computing the standard deviation of vehicle speeds (σv) for each vehicle in the sequence, the authors discover that σv increases in a concave (diminishing‑rate) manner as one moves downstream through the vehicles. Remarkably, all three NGSIM datasets (US‑101, I‑80, and L‑A Freeway) collapse onto a single concave curve, suggesting a universal evolution law that is independent of bottleneck type, lane‑changing behavior, or roadway geometry.

The authors compare these empirical findings with results from controlled traffic experiments on a circular track. The experimental data exhibit the same concave growth pattern and align closely with the NGSIM observations, reinforcing the claim that the qualitative shape of the growth is robust across different experimental settings.

Traditional traffic flow models—both macroscopic (e.g., Lighthill‑Whitham‑Richards, Payne‑Whitham) and microscopic (e.g., Gipps, IDM)—assume a unique functional relationship between speed and density (v = V(ρ)). Linear stability analysis of such models predicts that small disturbances initially amplify in a convex (accelerating) fashion, i.e., the second derivative of σv with respect to vehicle index is positive. The paper provides a theoretical derivation of this result, showing that the convex growth is an inherent consequence of the single‑valued speed‑density assumption. Consequently, these conventional models cannot reproduce the observed concave evolution.

To resolve the discrepancy, the authors propose a stochastic two‑dimensional (2‑D) model in the speed‑spacing plane. In this framework, each vehicle’s acceleration is a function of its current spacing and speed plus a Gaussian noise term, and a finite reaction delay τ is incorporated to mimic driver perception and response. The stochastic component allows the traffic state to occupy a region rather than a line in the speed‑spacing space, effectively capturing the variability of human driving behavior.

Simulation experiments with the stochastic 2‑D model reproduce the concave σv‑versus‑vehicle‑index curve observed in the NGSIM data. By adjusting the noise intensity and reaction delay, the model can match both the steep initial rise and the subsequent saturation seen in the empirical curves. Sensitivity analysis reveals that higher noise levels flatten the curve earlier, while longer reaction delays accentuate the initial steepness, highlighting the pivotal role of driver uncertainty and delayed response in shaping oscillation growth.

The paper’s findings have several practical implications. First, the universal concave growth pattern suggests that traffic control measures (e.g., variable speed limits, adaptive cruise control) should focus on damping the early rapid amplification of speed fluctuations rather than merely managing lane‑changing or bottleneck geometry. Second, the success of the stochastic 2‑D model indicates that future traffic simulation tools should incorporate multi‑dimensional stochastic dynamics to more faithfully represent real‑world traffic.

In summary, the study provides robust empirical evidence that traffic oscillations grow concavely along vehicle platoons, challenges the adequacy of traditional single‑valued speed‑density models, and demonstrates that a stochastic speed‑spacing framework can both qualitatively and quantitatively capture this universal behavior. This advances our theoretical understanding of traffic instability and offers a new direction for designing more effective traffic management strategies.
