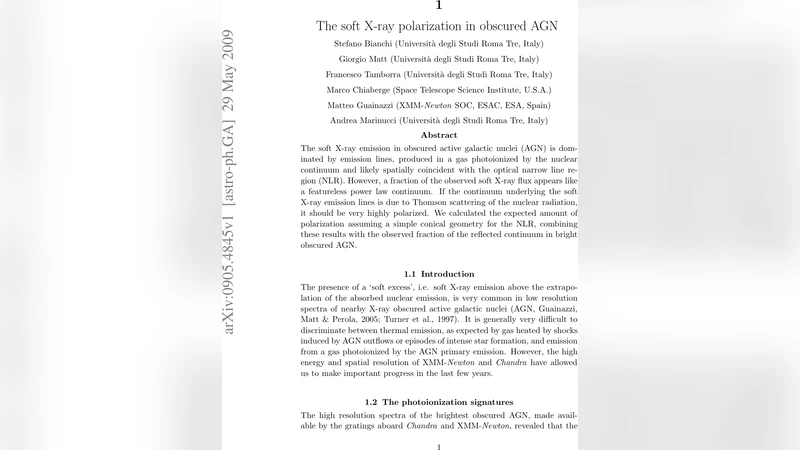

The soft X-ray polarization in obscured AGN

The soft X-ray emission in obscured active galactic nuclei (AGN) is dominated by emission lines, produced in a gas photoionized by the nuclear continuum and likely spatially coincident with the optical narrow line region (NLR). However, a fraction of the observed soft X-ray flux appears like a featureless power law continuum. If the continuum underlying the soft X-ray emission lines is due to Thomson scattering of the nuclear radiation, it should be very highly polarized. We calculated the expected amount of polarization assuming a simple conical geometry for the NLR, combining these results with the observed fraction of the reflected continuum in bright obscured AGN.

💡 Research Summary

The paper addresses the origin of the soft‑X‑ray emission observed in obscured active galactic nuclei (AGN). High‑resolution X‑ray spectroscopy shows that the soft band is dominated by a forest of narrow emission lines produced by gas photo‑ionized by the hidden nuclear continuum; this gas is thought to be co‑spatial with the optical narrow‑line region (NLR). In addition to the lines, a residual continuum component appears as an almost featureless power‑law. The authors propose that this continuum is not intrinsic thermal emission but rather nuclear radiation that has been Thomson‑scattered by free electrons in the NLR. Because Thomson scattering preferentially polarises light perpendicular to the scattering plane, the scattered component should be highly polarised, especially when the scattering angle approaches 90°.

To quantify the expected polarisation, the authors adopt a simple geometric model: the NLR is represented as a hollow cone with half‑opening angle θ, centred on the AGN axis. The nuclear source is assumed isotropic, and the electron density inside the cone is taken to be uniform. For a given observer inclination i (the angle between the line of sight and the cone axis) the scattering angle α is determined, and the Thomson‑scattering polarisation law

 P(α) = (1 − cos²α) / (1 + cos²α)

is applied. Integrating over the cone surface yields the net polarisation P(i, θ) of the scattered flux.

Observationally, previous studies of bright obscured AGN (e.g., NGC 1068, Circinus Galaxy) have measured a “reflected fraction” f_ref – the proportion of the soft‑X‑ray flux that can be attributed to scattered continuum – typically in the range 0.1–0.3. The observable polarisation is therefore the product

 P_obs = f_ref × P(i, θ).

The authors explore a plausible parameter space (θ ≈ 30°–45°, i ≈ 30°–60°) and find that P_obs can reach 10 %–30 %. This level is comfortably above the minimum detectable polarisation for current X‑ray polarimeters such as IXPE (≈5 % for bright sources) and would be readily measurable with upcoming missions (e.g., eXTP, XL‑Pol). Moreover, the predicted polarisation angle is orthogonal to the projected cone axis, providing a clear geometric signature that can be compared with optical/IR polarisation maps.

The study’s implications are twofold. First, a detection of the predicted high‑polarisation continuum would directly confirm that the soft‑X‑ray power‑law component is Thomson‑scattered nuclear light, rather than thermal emission from the NLR gas. Second, measuring both the degree and angle of polarisation offers a novel diagnostic of the NLR geometry, electron density distribution, and the orientation of the obscuring torus. Because X‑ray photons penetrate deeper than optical photons, X‑ray polarimetry can probe regions closer to the central engine, complementing existing multi‑wavelength polarimetric studies.

In conclusion, the paper provides a clear, testable prediction: obscured AGN should exhibit a moderately high (10‑30 %) soft‑X‑ray polarisation aligned perpendicular to the NLR axis. Upcoming X‑ray polarimetry missions are therefore well positioned to use this effect as a probe of AGN inner structure, offering insights into the scattering medium, the geometry of the ionisation cone, and the hidden nuclear continuum that drives the observed emission lines.
