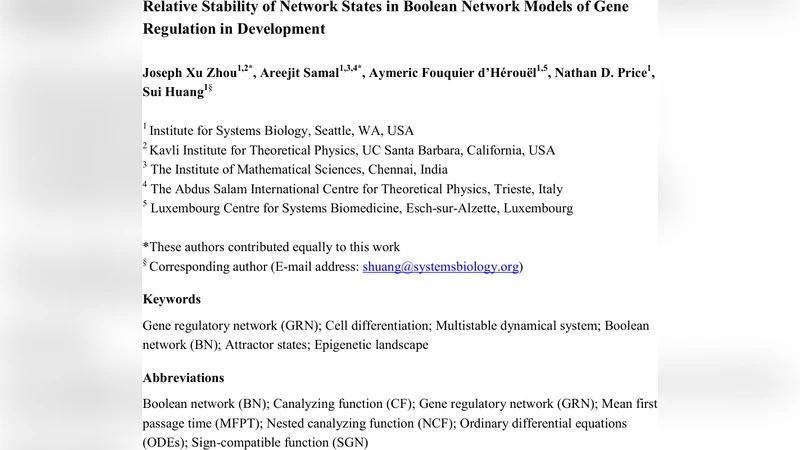

Relative Stability of Network States in Boolean Network Models of Gene Regulation in Development

Progress in cell type reprogramming has revived the interest in Waddington’s concept of the epigenetic landscape. Recently researchers developed the quasi-potential theory to represent the Waddington’s landscape. The Quasi-potential U(x), derived from interactions in the gene regulatory network (GRN) of a cell, quantifies the relative stability of network states, which determine the effort required for state transitions in a multi-stable dynamical system. However, quasi-potential landscapes, originally developed for continuous systems, are not suitable for discrete-valued networks which are important tools to study complex systems. In this paper, we provide a framework to quantify the landscape for discrete Boolean networks (BNs). We apply our framework to study pancreas cell differentiation where an ensemble of BN models is considered based on the structure of a minimal GRN for pancreas development. We impose biologically motivated structural constraints (corresponding to specific type of Boolean functions) and dynamical constraints (corresponding to stable attractor states) to limit the space of BN models for pancreas development. In addition, we enforce a novel functional constraint corresponding to the relative ordering of attractor states in BN models to restrict the space of BN models to the biological relevant class. We find that BNs with canalyzing/sign-compatible Boolean functions best capture the dynamics of pancreas cell differentiation. This framework can also determine the genes’ influence on cell state transitions, and thus can facilitate the rational design of cell reprogramming protocols.

💡 Research Summary

The paper tackles the long‑standing challenge of quantifying Waddington’s epigenetic landscape for discrete‑state gene regulatory networks (GRNs). While quasi‑potential theory has been successfully used to construct continuous potential landscapes, it does not directly apply to Boolean networks (BNs), which model gene expression as binary on/off states and are widely employed in developmental biology. The authors therefore develop a rigorous framework that extends the quasi‑potential concept to BNs. They define a state space of 2^N binary vectors, introduce stochastic perturbations to the deterministic Boolean update rules, and treat the resulting dynamics as a Markov chain. The stationary distribution π(s) of this chain yields the quasi‑potential U(s)=–ln π(s), where lower U indicates a deeper basin (greater stability) and higher U a shallower basin (easier transition).

To demonstrate the utility of their method, the authors focus on pancreas development, constructing a minimal GRN that includes the key transcription factors known to drive the differentiation of progenitor cells into α‑ and β‑cells. They generate all possible Boolean functions for each node, but then impose three layers of constraints to prune the combinatorial explosion.

1. Structural constraints: Functions are classified as (i) arbitrary, (ii) canalyzing (a specific input forces the output regardless of other inputs), or (iii) sign‑compatible (the logical rule respects the experimentally observed activating or repressing nature of each interaction). Canalyzing and sign‑compatible functions dramatically reduce the number of admissible models and reflect biologically realistic regulatory logic.

2. Dynamical constraints: The experimentally observed stable attractors—pancreatic progenitor, α‑cell, and β‑cell states—are enforced as fixed‑point or small‑cycle attractors in every candidate BN.

3. Functional (ordering) constraints: Developmental lineage imposes a temporal order: progenitor → α/β. The authors compute transition probabilities between attractors and require that the quasi‑potential differences respect this ordering, i.e., the energy barrier from progenitor to differentiated states must be lower than the reverse.

For each remaining model, they run Monte‑Carlo simulations to estimate transition matrices, stationary distributions, and thus the quasi‑potential landscape. The analysis reveals that BNs built from canalyzing and sign‑compatible functions produce the lowest quasi‑potential values for the biologically relevant attractors, faithfully reproducing the observed differentiation pathway. In contrast, models using arbitrary Boolean functions generate higher potentials and unrealistic transition routes.

A key contribution is the quantitative assessment of each gene’s influence on state transitions. By systematically altering a gene’s input connections or swapping its Boolean rule, the authors observe substantial shifts in U values, indicating that certain genes (e.g., Pdx1, Nkx6‑1) act as “gatekeepers” that lower the energy barrier toward differentiated states. This insight provides a principled way to prioritize targets for cell‑reprogramming interventions.

The discussion emphasizes three major implications. First, the work bridges the gap between continuous and discrete dynamical systems, showing that a potential‑like landscape can be meaningfully defined for Boolean models. Second, the layered constraint approach (structural, dynamical, functional) offers a systematic pipeline for extracting biologically plausible models from the astronomically large space of possible networks. Third, the ability to rank genes by their contribution to landscape shaping opens avenues for rational design of reprogramming protocols, potentially reducing trial‑and‑error in experimental settings.

In conclusion, the authors present a robust, scalable methodology for constructing quasi‑potential landscapes of Boolean gene regulatory networks, validate it on a pancreas differentiation case study, and demonstrate its capacity to elucidate the mechanistic underpinnings of cell‑state stability and transition. The framework is readily extensible to other developmental systems, promising to advance both theoretical understanding of cellular decision‑making and practical strategies for directed cell fate engineering.
