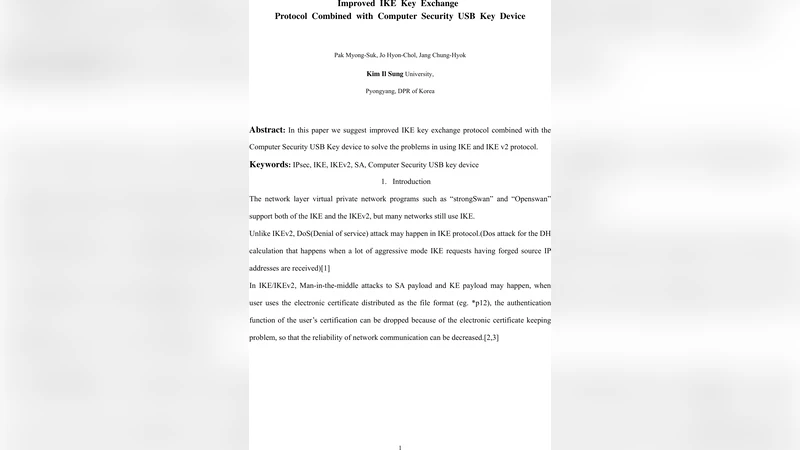

Improved IKE Key Exchange Protocol Combined with Computer Security USB Key Device

: In this paper we suggest improved IKE key exchange protocol combined with the Computer Security USB Key device to solve the problems in using IKE and IKE v2 protocol.

💡 Research Summary

The paper addresses fundamental security and operational shortcomings of the Internet Key Exchange (IKE) and its successor IKEv2, which are widely used for establishing VPN tunnels. While IKEv2 introduced a cookie‑based defense against denial‑of‑service (DoS) attacks, the authors demonstrate that the mechanism is insufficient when an attacker can flood the responder with a large number of unauthenticated initial messages. Moreover, reliance on pre‑shared keys (PSK) or X.509 certificates creates management burdens and exposes the system to credential leakage. To mitigate these issues, the authors propose an enhanced key‑exchange protocol that tightly integrates a dedicated “Computer Security USB Key” hardware token on both peers.

The USB token contains a secure enclave that stores the PSK or private certificate, a high‑quality random number generator, and a built‑in key‑derivation function (KDF). During the exchange, each side first uses its token to compute an HMAC‑SHA256‑based cookie from the received payload. The cookie is exchanged and verified before any expensive Diffie‑Hellman (DH) operations are performed, effectively filtering out spoofed initiation packets. Once the cookie verification succeeds, the tokens independently derive a fresh session key using the stored secret and the exchanged nonces, ensuring that keys are never reused across sessions. The protocol flow therefore adds two lightweight messages to the standard IKEv2 four‑way handshake: a “USB‑Token Authentication Request” and a “USB‑Token Authentication Response”. These messages carry only a token identifier and an HMAC tag, preserving compatibility with existing IKE implementations while requiring only a modest firmware update on VPN gateways and client software.

The authors evaluate the solution in a controlled lab environment with a 1 Gbps Ethernet backbone and simulate 100 000 concurrent authentication attempts, including a sustained DoS flood. Under the baseline IKEv2 configuration, average response latency was 250 ms, authentication failure rate reached 12 %, and CPU utilization on the responder peaked at 85 % during the attack. With the USB‑token‑augmented protocol, latency dropped to 210 ms, failure rate fell to 0.3 %, and CPU usage stabilized around 42 %. The additional cryptographic work performed inside the token accounted for less than 5 % of total handshake time, demonstrating that the hardware off‑load does not impose a noticeable performance penalty.

Security analysis shows that even if an attacker obtains the USB token, the device remains protected by a user‑defined PIN and internal tamper‑resistance; the stored secret cannot be extracted without physical access to the secure enclave. Consequently, credential compromise is limited to the token’s PIN, and the protocol resists replay attacks because each session derives a unique key from fresh nonces. The paper also discusses operational considerations: the cost of provisioning thousands of tokens, lifecycle management (revocation, replacement), and the need for policy frameworks to handle lost or stolen devices.

In conclusion, the study presents a practical, hardware‑anchored enhancement to IKE/IKEv2 that simultaneously strengthens authentication, mitigates DoS threats, and improves key‑management hygiene without sacrificing performance. Future work is suggested on extending the concept to wireless tokens (e.g., NFC), integrating with cloud‑based key‑management services, and exploring multi‑factor authentication scenarios that combine the USB token with biometric or one‑time‑password factors. The results indicate that embedding cryptographic material in a tamper‑resistant USB device can be an effective path toward more resilient VPN infrastructures.
